Material ID: 6ES7340-1CH02-0AE0

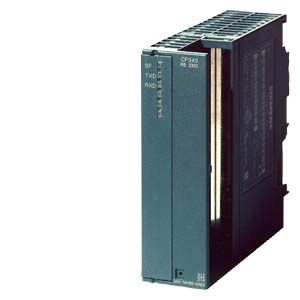

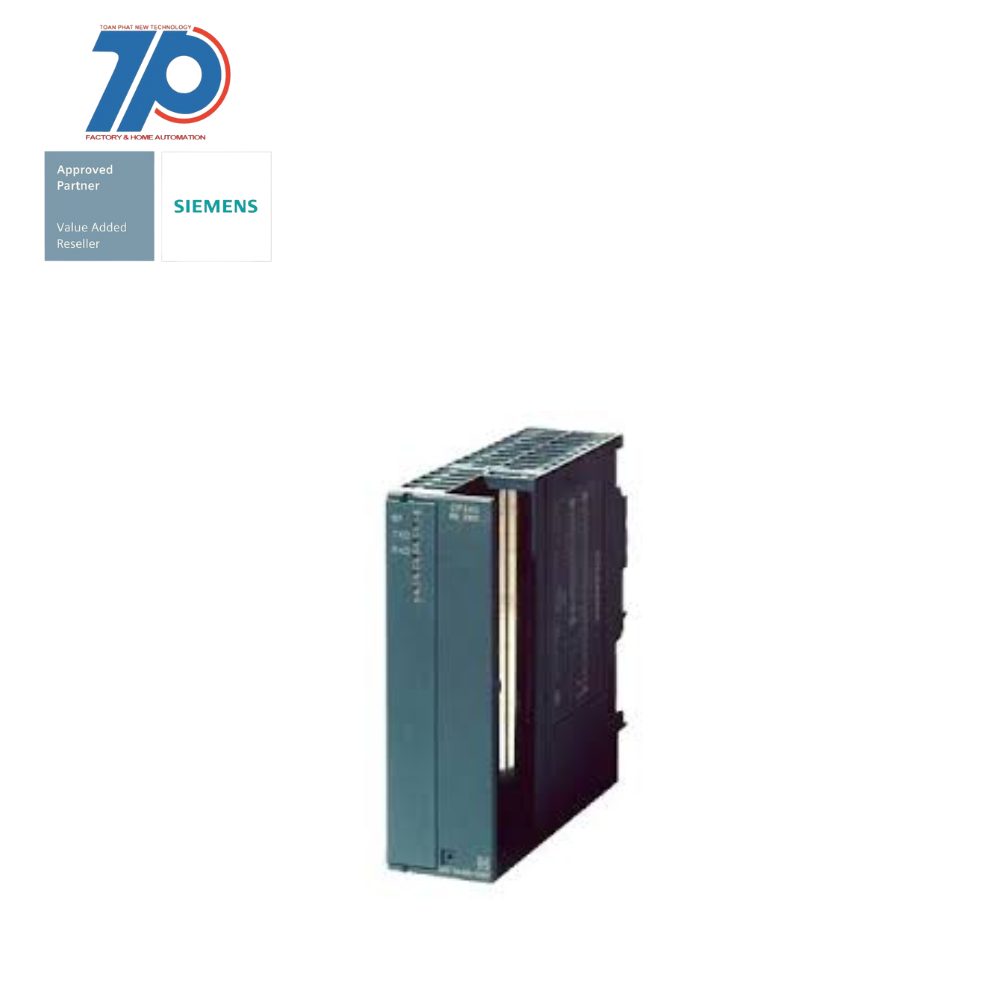

- SIMATIC S7-300, CP 340 Communications processor with RS 422/485 interface incl. configuration package on CD
- SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20
- Can be used as a central I/O on an S7-300 or in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module
- Up to 12 IO modules can be inserted into each station
- Standardized setup of all modules simplifies logistics and stocking of spare parts
- ET 200M can be used for both standard and safety-oriented applications
- Supports up to 12 multi-channel signal modules and function modules as well as S7-300 communications processors as I/O modules
- Supports modules with extended user data, such as HART modules with HART auxiliary variables
- Offers FastConnect fast connection technology for easy wiring without stripping
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| With optical interface | false |
| IO link master | false |
| Supporting protocol for Foundation Fieldbus | false |
| Radio standard GSM | false |
| Appendant operation agent (Ex ib) | false |

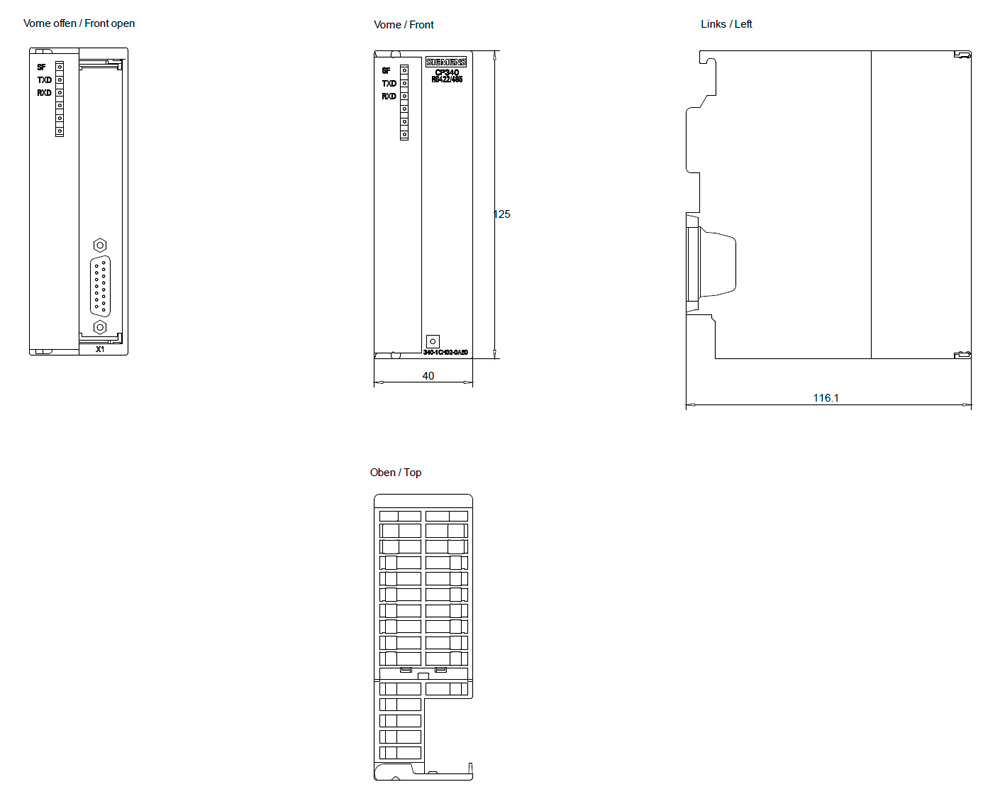

| Width | 40 mm |
| Radio standard Bluetooth | false |
| Supporting protocol for other bus systems | true |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for PROFIsafe | false |
| Redundancy | true |
| Supporting protocol for EtherNet/IP | false |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for Modbus | false |
| Height | 125 mm |
| Number of HW-interfaces RS-422 | 1 |
| With potential separation | true |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for LON | false |
| Radio standard GPRS | false |
| Depth | 120 mm |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for EtherCAT | false |
| Radio standard UMTS | false |
| Supporting protocol for DeviceNet | false |
| Type of data transmission | Serial |
| Supporting protocol for INTERBUS-Safety | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for ASI | false |
| Supporting protocol for CAN | false |
| Supporting protocol for KNX | false |
| Supporting protocol for PROFINET IO | false |
| Explosion safety category for dust | None |
| Suitable for safety functions | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for TCP/IP | false |
