Material ID: 6ES7412-3HJ14-0AB0

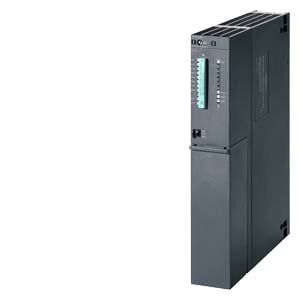

- Replacement part: SIMATIC S7-400H, CPU 412-3H
- Central processing unit for S7-400H and S7-400F/FH
- 3 interfaces: 1 MPI/DP and 2 for sync modules
- 768 KB memory (256 KB data/512 KB program)
Additional Information
Support
|
Technical Data
|
Manuals / Links
|
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for CAN | false |
| Supporting protocol for ASI | false |
| Supporting protocol for LON | false |
| Front built-in possible | false |
| Additional program memory possible | false |
| Radio standard WLAN 802.11 | false |
| IO link master | false |
| Processing time (1K, binary operation) | 0.075 ms |
| Supporting protocol for Modbus | false |
| Height | 290 mm |
| Explosion safety category for dust | None |
| Suitable for safety functions | true |
| Voltage type (supply voltage) | AC/DC |
| Radio standard GPRS | false |
| Rail mounting possible | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for SERCOS | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for SUCONET | false |
| Memory size | 768 kByte |
| Supporting protocol for DeviceNet | false |
| Rack-assembly possible | false |
| Type of memory | RAM |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for KNX | false |
| Supporting protocol for Data-Highway | false |
| Radio standard Bluetooth | false |
| Supporting protocol for PROFINET CBA | false |
| Wall mounting/direct mounting | false |
| Radio standard GSM | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for EtherNet/IP | false |
| SIL according to IEC 61508 | 3 |
| With display | false |
| Redundancy | true |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for Foundation Fieldbus | false |
| System accessory | true |
| Supporting protocol for other bus systems | true |
| Model | Modular |
| Number of HW-interfaces RS-485 | 2 |
| Width | 50 mm |
| With optical interface | false |
| Supporting protocol for TCP/IP | false |
| Depth | 219 mm |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for SafetyBUS p | false |
| Radio standard UMTS | false |
