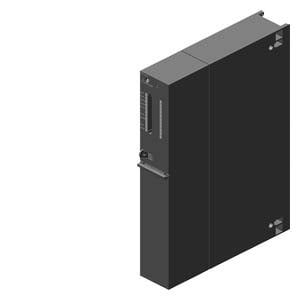

Material ID: 6ES7416-3XR05-0AB0
- Replacement part: SIMATIC S7-400, CPU 416-3
- Central processing unit with: work memory 11.2 MB, (5.6 MB code, 5.6 MB data)
- 1st interface MPI/DP 12 Mbit/s
- 2nd interface PROFIBUS DP
- 3rd interface plug-in IFM module
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for LON | false |
| Supporting protocol for EtherCAT | false |
| Wall mounting/direct mounting | false |
| Memory size | 11200 kByte |
| Processing time (1K, binary operation) | 0.03 ms |
| Supporting protocol for TCP/IP | false |
| Model | Modular |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for INTERBUS | false |
| With optical interface | false |
| Supporting protocol for SafetyBUS p | false |
| Suitable for safety functions | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for PROFINET IO | false |
| Radio standard UMTS | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Rail mounting possible | false |
| With display | false |
| Number of HW-interfaces RS-485 | 2 |
| Redundancy | true |
| Additional program memory possible | false |
| Radio standard WLAN 802.11 | false |
| Height | 290 mm |
| Radio standard GPRS | false |
| Type of memory | RAM |
| Depth | 219 mm |
| IO link master | false |
| Supporting protocol for PROFIsafe | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for SUCONET | false |
| Rack-assembly possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Radio standard GSM | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for ASI | false |
| Supporting protocol for DeviceNet | false |
| System accessory | true |
| Supporting protocol for Foundation Fieldbus | false |
| Width | 50 mm |
| Supporting protocol for SERCOS | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for KNX | false |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ib) | false |
| Radio standard Bluetooth | false |
| Front built-in possible | false |
| Supporting protocol for CAN | false |
