6ES7511-1AK00-0AB0

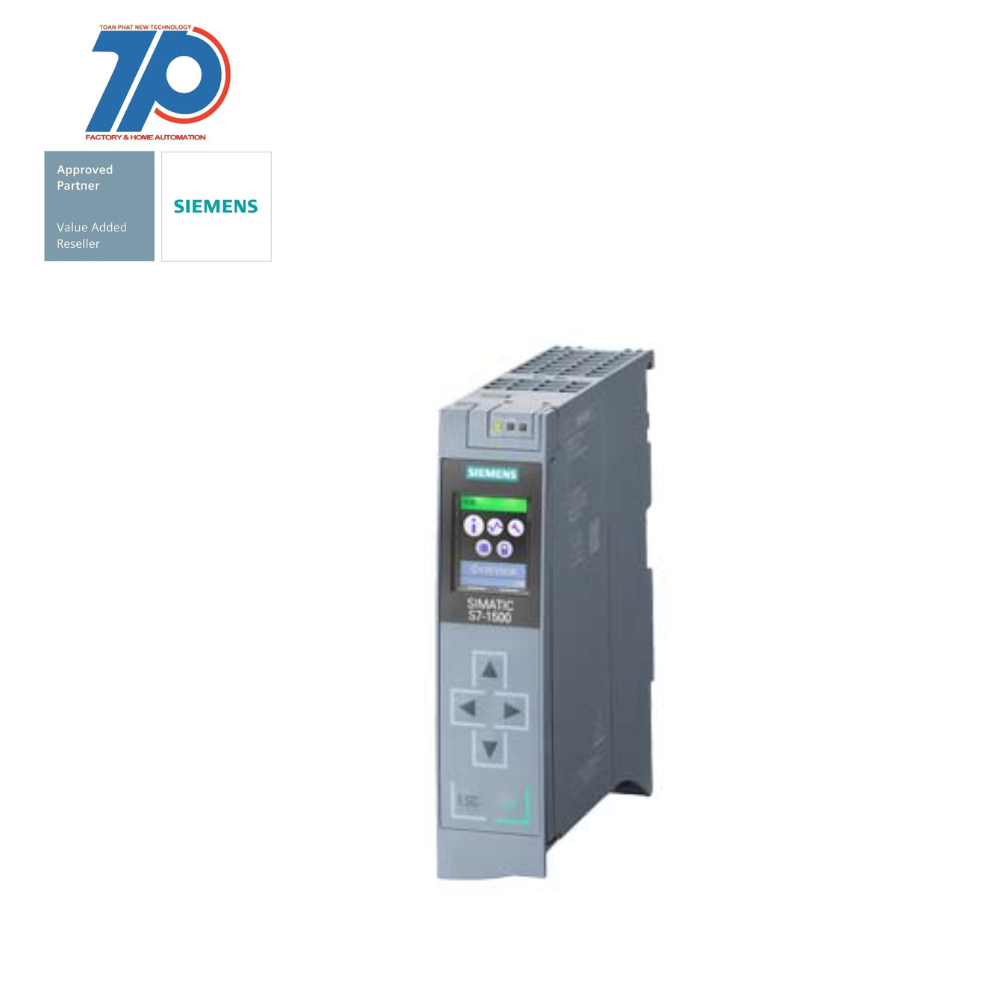

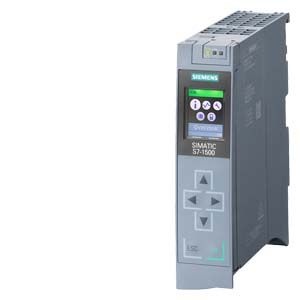

• Spare part SIMATIC S7-1500, CPU 1511-1 PN
• Central processing unit with Work memory 150 KB for program and 1 MB for data
• 1st interface, PROFINET IRT with 2-port switch
• 60 ns bit performance
• SIMATIC Memory Card required
• The SIMATIC® S7-1500 Advanced Controller sets new standards with regard to system performance and usability
• The seamless Integration of the SIMATIC S7-1500 Controller in the Totally Integrated Automation Portal (TIA Portal) offers advantages, such as common data storage, a uniform operating concept and central services
• This makes the use of universal functions particularly easy
• With its short system response times, the controller boosts productivity in the twinkling of an eye
• For you, this means more flexibility and a shorter product launch time
• Various CPU versions, each in several performance classes, are available for SIMATIC S7-1500
• The portfolio firstly covers standard CPUs, some with the option of integrating C/C++ code
• The compact CPUs have integrated digital and analog I/Os, and counting inputs and pulse outputs can be measured directly on the CPU
• Thanks to the fail-safe CPUs, Standard and Safety programs can be executed on the same controller
• The technology CPUs expand the Motion Control functions available in all SIMATIC S7-1500 controllers for demanding solutions
