Material ID: 6ES7511-1CK01-0AB0

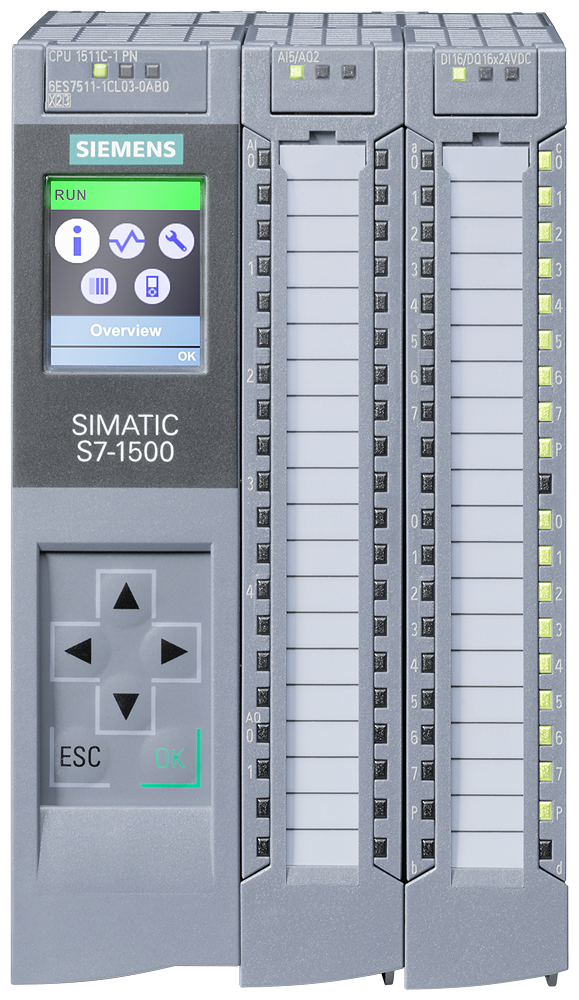

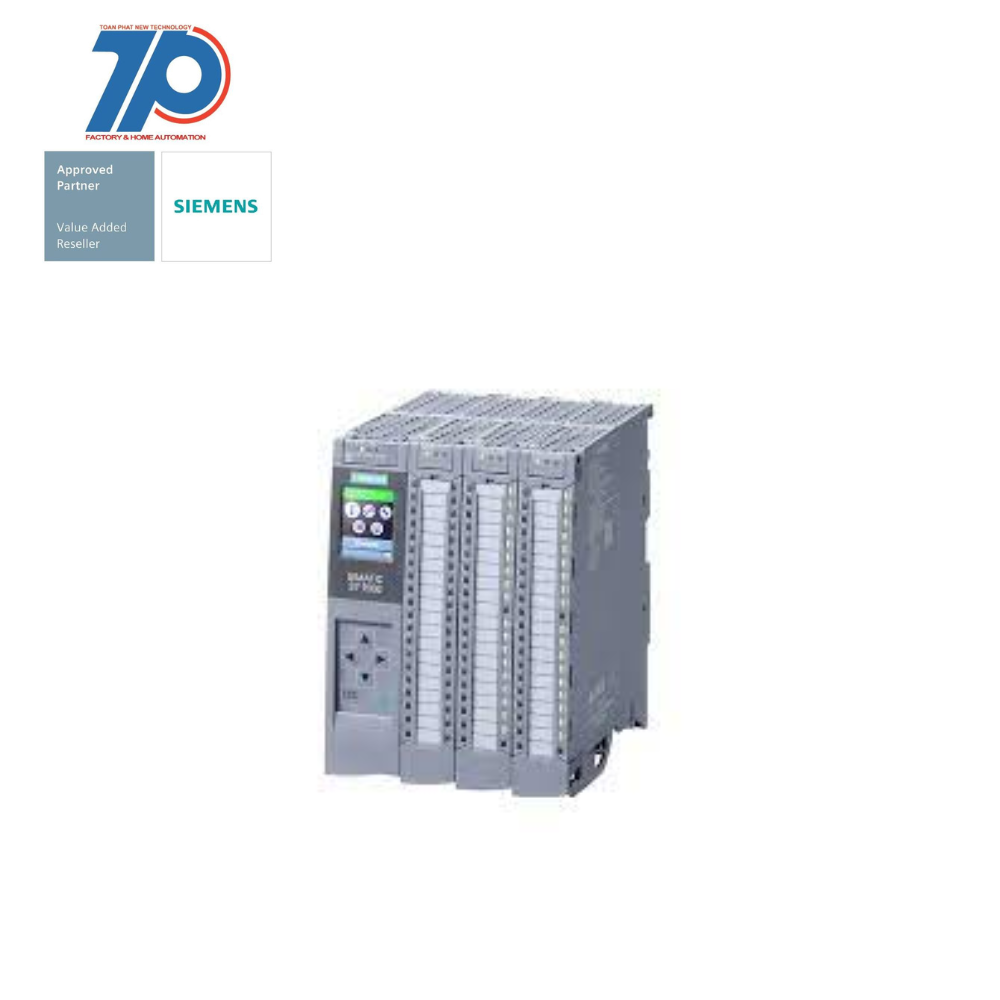

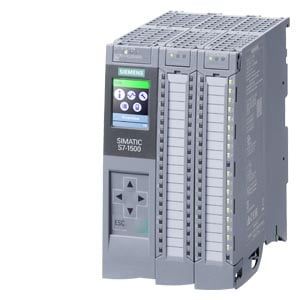

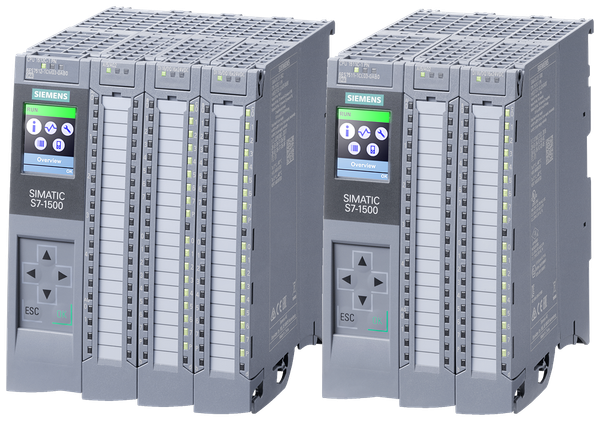

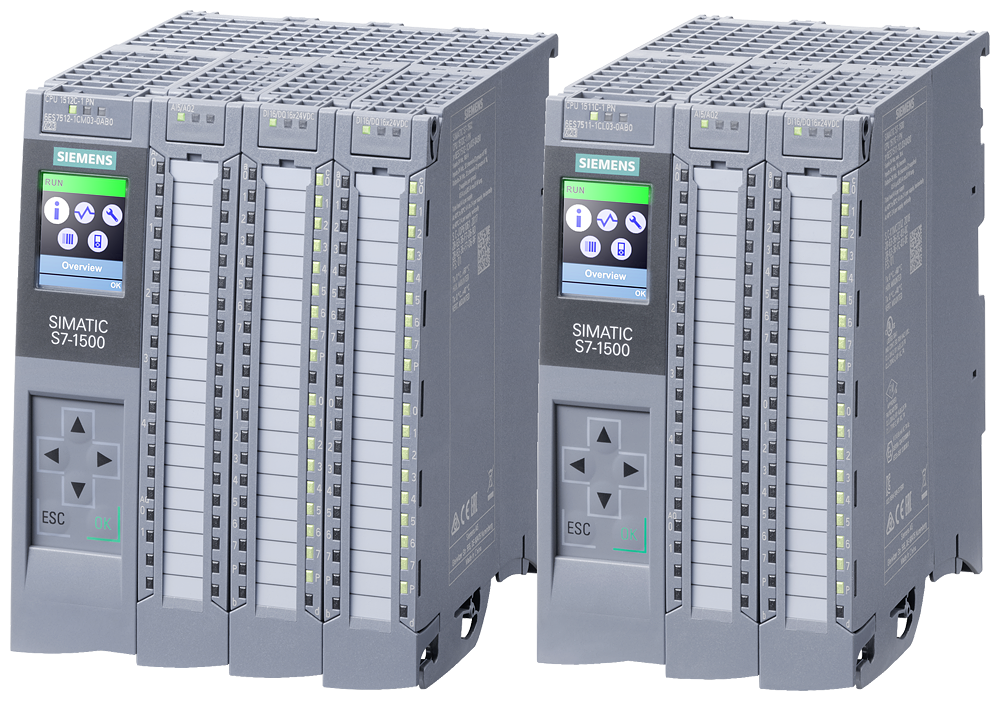

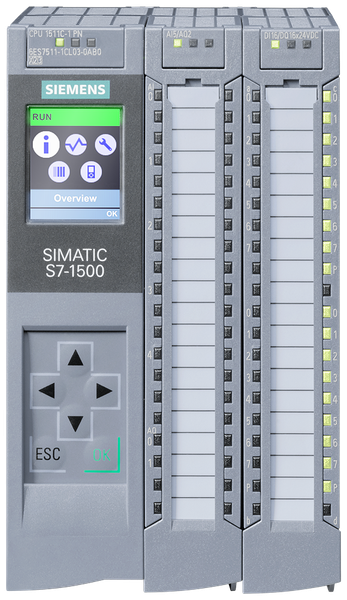

- SIMATIC S7-1500 Compact CPU CPU 1511C-1PN
- Central processing unit with working memory 175 KB for program and 1 MB for data
- 16 digital inputs
- 16 digital outputs
- 5 analog inputs
- 2 analog outputs
- 6 high-speed counters
- 4 high-speed outputs for PTO/PWM/frequency output
- Interface: PROFINET IRT with 2 port switch
- 60 NS bit-performance
- Front connector push-in
- SIMATIC memory card necessary
- The SIMATIC S7-1500 Advanced Controller sets new standards with regard to system performance and usability
- Seamless integration in the Totally Integrated Automation Portal (TIA Portal)
- Common data storage and uniform operating concept
- Central services for easy use of universal functions
- Short system response times boosting productivity
- More flexibility
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for EtherCAT | false |
| Voltage type (supply voltage) | DC |
| Front built-in possible | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for DeviceNet | false |
| Appendant operation agent (Ex ia) | false |
| Model | Compact |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for INTERBUS | false |
| Radio standard Bluetooth | false |
| Memory size | 1175 kByte |
| Depth | 129 mm |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of digital outputs | 16 |
| Supporting protocol for ASI | false |
| Supporting protocol for TCP/IP | true |
| IO link master | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for Foundation Fieldbus | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Explosion safety category for dust | None |
| Wall mounting/direct mounting | false |
| Width | 85 mm |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for SUCONET | false |
| Appendant operation agent (Ex ib) | false |
| Additional program memory possible | false |
| Supporting protocol for PROFINET CBA | false |
| Radio standard GPRS | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for CAN | false |
| Number of analogue inputs | 5 |
| Processing time (1K, binary operation) | 0.06 ms |
| Supporting protocol for Modbus | true |
| With optical interface | false |
| Supporting protocol for PROFINET IO | true |
| Radio standard GSM | false |
| Supporting protocol for INTERBUS-Safety | false |
| Height | 147 mm |
| Supporting protocol for KNX | false |
| Rail mounting possible | true |
| Number of interfaces PROFINET | 1 |
| Type of memory | Other |
| Number of analogue outputs | 2 |
| Radio standard UMTS | false |
| Supporting protocol for SafetyBUS p | false |
| System accessory | true |
| With display | true |
| Supporting protocol for DeviceNet Safety | false |
| Redundancy | false |
| Suitable for safety functions | false |
| Supply voltage DC | 19.2 V |
| Supply voltage DC | 28.8 V |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for LON | false |
| Rack-assembly possible | false |
| Number of digital inputs | 16 |
