6ES7511-1FK02-0AB0
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

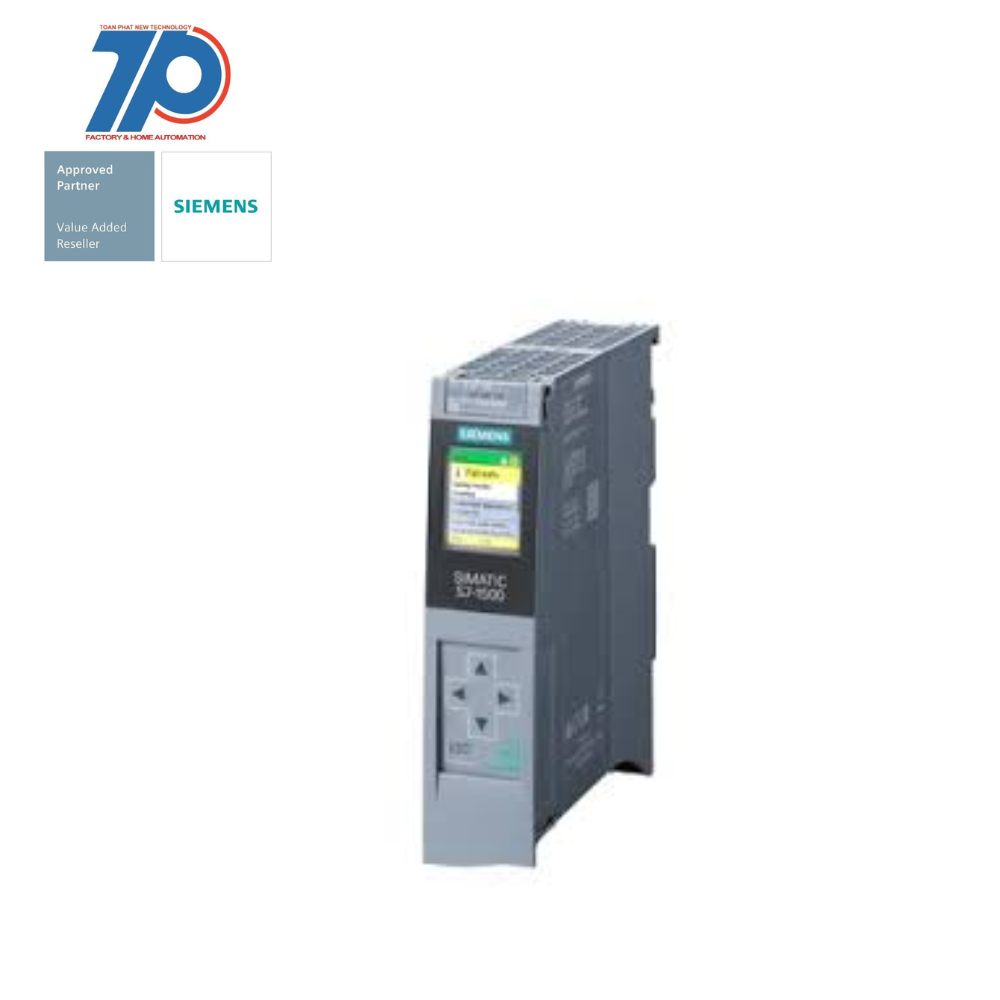

Material ID: 6ES7511-1FK02-0AB0
- Model: SIMATIC S7-1500F, CPU 1511F-1 PN
- Specifications:
- Central processing unit with working memory: 225 KB for program and 1 MB for data
- Interface: PROFINET IRT with 2 port switch
- 60 ns bit-performance
- SIMATIC memory card necessary
- Features of SIMATIC S7-1500 Advanced Controller:
- Sets new standards in system performance and usability
- Seamless integration in the TIA Portal
- Boosts productivity with short system response times
- CPU versions available:
- Standard CPUs
- Compact CPUs with integrated digital and analog I/Os
- Fail-safe CPUs for Standard and Safety programs
- Technology CPUs for Motion Control functions
- Configuration: SIMATIC STEP 7 Professional software
- Memory card required for operation
Additional Information
Support
- FAQ
- Siemens Support Portal
- Siemens EcoTechProfil (SEP)
- Application Example
- Sales Brochure
- 3D PDF
Technical Data
- Product Page
- Industry Mall
- Siemens Mall
- Certificates
- Technical Data Sheet
- Declaration of Conformity
Manuals / Links
- Manuals
- Product Note
- Download
- REACH Information
- Safety Data Sheet
- Environmental Product Declaration
Thông số kỹ thuật
| FEATURE | VALUE |
| Suitable for safety functions | true |
| Model | Modular |
| With optical interface | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for LON | false |
| Appendant operation agent (Ex ia) | false |
| Rail mounting possible | true |
| Supporting protocol for SUCONET | false |
| Number of interfaces PROFINET | 1 |
| Supporting protocol for Modbus | true |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Type of memory | Other |
| Supporting protocol for Data-Highway | false |
| IO link master | false |
| Processing time (1K, binary operation) | 0.06 ms |
| Supply voltage DC | 19.2 V |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for ASI | false |
| Supporting protocol for INTERBUS | false |
| Explosion safety category for dust | None |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supply voltage DC | 28.8 V |
| Width | 35 mm |
| Additional program memory possible | false |
| Appendant operation agent (Ex ib) | false |
| System accessory | true |
| Supporting protocol for PROFIsafe | true |
| Supporting protocol for TCP/IP | true |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for DeviceNet | false |
| Radio standard GSM | false |
| Rack-assembly possible | false |
| Supporting protocol for INTERBUS-Safety | false |
| Height | 147 mm |
| Supporting protocol for EtherNet/IP | false |
| With display | true |
| Supporting protocol for EtherCAT | false |
| Radio standard UMTS | false |
| Radio standard GPRS | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Front built-in possible | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for Foundation Fieldbus | false |
| Redundancy | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for SafetyBUS p | false |
| Radio standard Bluetooth | false |
| Supporting protocol for KNX | false |
| Depth | 129 mm |
| Supporting protocol for CAN | false |
| Supporting protocol for other bus systems | false |
| Memory size | 1225 kByte |
