Material ID: 6ES7511-1TK01-0AB0

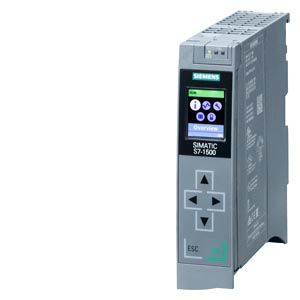

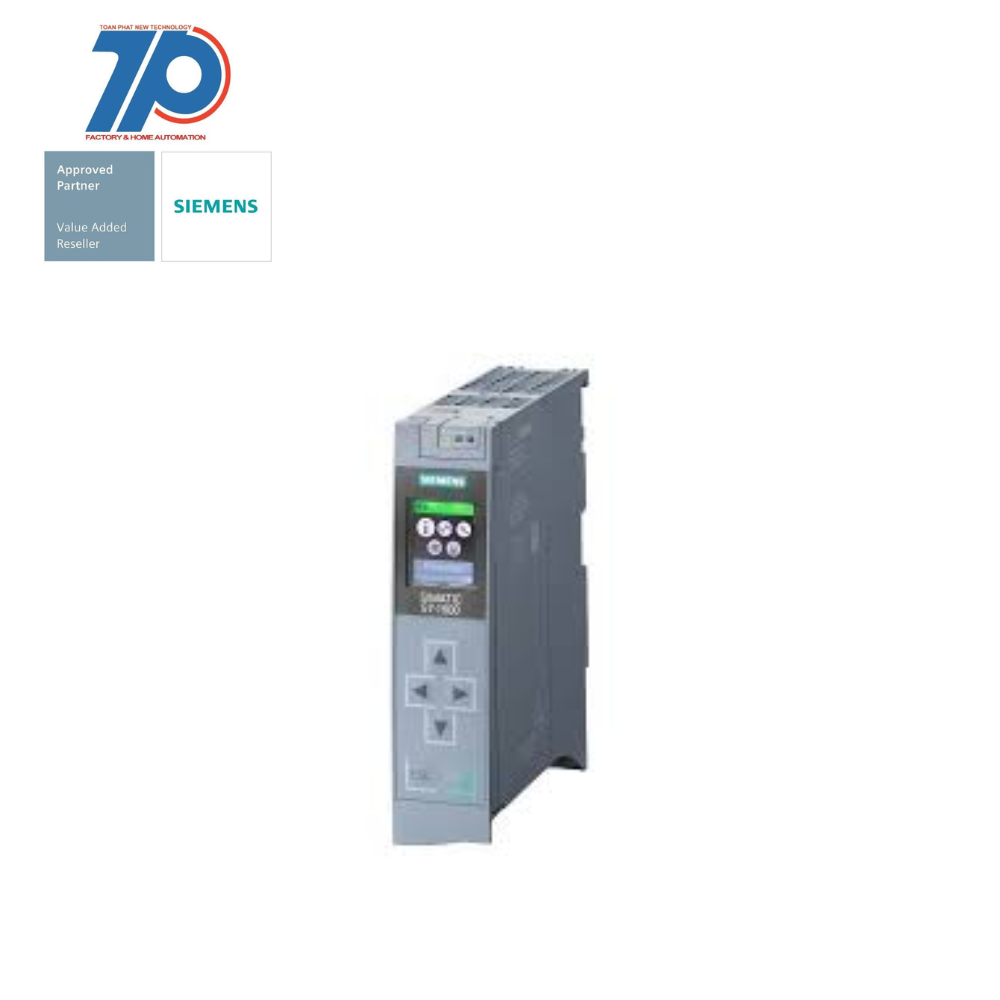

- SIMATIC S7-1500T, CPU 1511T-1 PN specifications:
- Central processing unit with Work memory 225 KB for program and 1 MB for data
- 1st interface: PROFINET IRT with 2-port switch
- 60 ns bit performance
- SIMATIC Memory Card required
- Advantages of SIMATIC S7-1500 Advanced Controller:
- Sets new standards for system performance and usability
- Seamless integration in the TIA Portal for common data storage and uniform operating concept
- Boosts productivity with short system response times
- Provides flexibility and shorter product launch time
- Various CPU versions available for SIMATIC S7-1500:
- Standard CPUs with option to integrate C/C++ code
- Compact CPUs with integrated digital and analog I/Os
- Fail-safe CPUs for executing Standard and Safety programs on the same controller
- Technology CPUs for expanding
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| System accessory | true |
| Supporting protocol for SERCOS | false |
| Supporting protocol for PROFINET IO | true |
| Memory size | 1225 kByte |
| Radio standard GSM | false |
| Number of interfaces PROFINET | 1 |
| Wall mounting/direct mounting | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for LON | false |
| Supporting protocol for Data-Highway | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for TCP/IP | true |
| Processing time (1K, binary operation) | 0.06 ms |
| Supporting protocol for Foundation Fieldbus | false |
| Voltage type (supply voltage) | DC |
| Type of memory | Other |
| Suitable for safety functions | false |
| Supporting protocol for Modbus | true |
| Radio standard UMTS | false |
| Supporting protocol for CAN | false |
| With display | true |
| Supporting protocol for KNX | false |
| With optical interface | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for DeviceNet | false |
| Appendant operation agent (Ex ib) | false |
| Additional program memory possible | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Radio standard GPRS | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFIsafe | false |
| Redundancy | false |
| Supporting protocol for ASI | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Rail mounting possible | true |
| Radio standard Bluetooth | false |
| Supporting protocol for EtherCAT | false |
| Explosion safety category for dust | None |
| Supporting protocol for other bus systems | false |
| Supporting protocol for EtherNet/IP | false |
| Front built-in possible | false |
| Rack-assembly possible | false |
| Depth | 129 mm |
| Height | 147 mm |
| Width | 35 mm |
| Supporting protocol for INTERBUS-Safety | false |
| Model | Modular |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIBUS | false |
| IO link master | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFINET CBA | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for AS-Interface Safety at Work | false |
