Material ID: 6ES7512-1DK01-0AB0

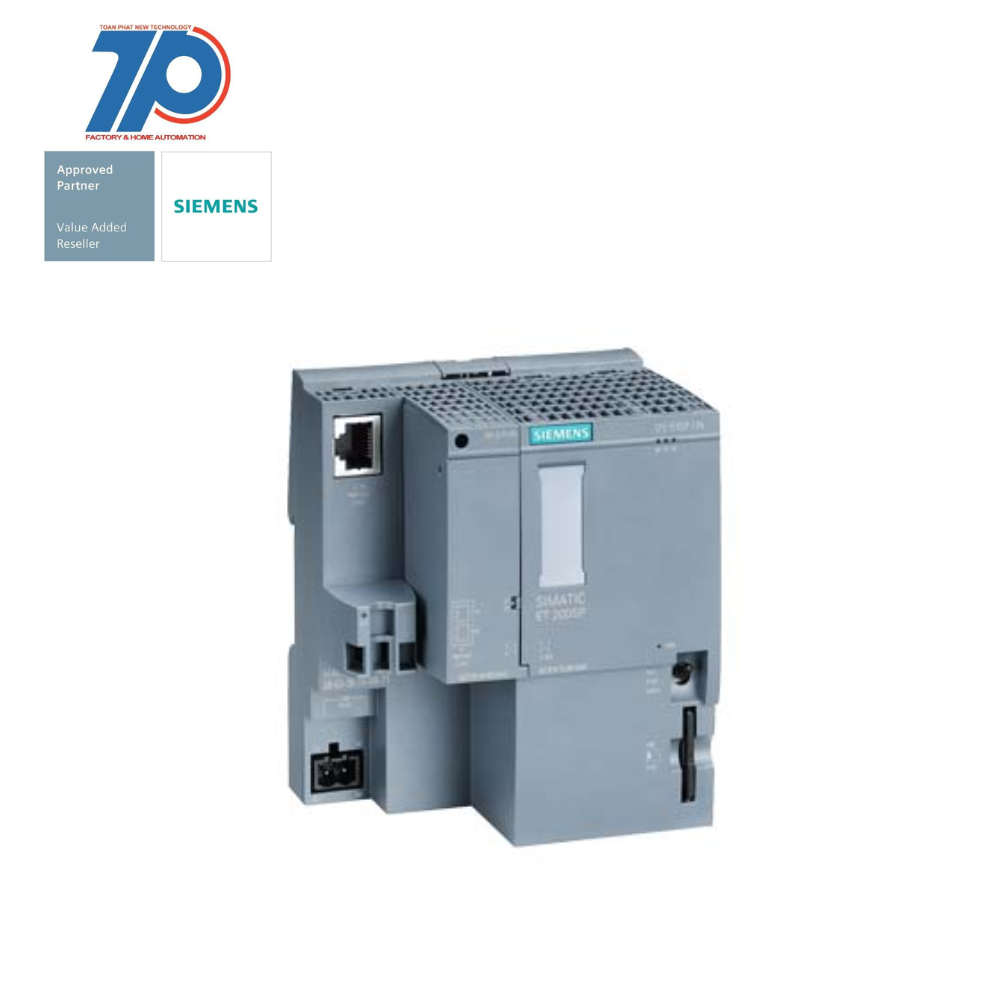

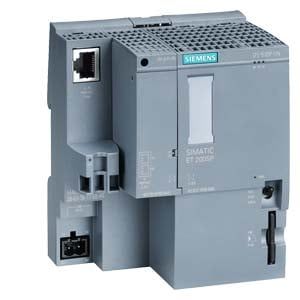

- SIMATIC DP, CPU 1512SP-1 PN for ET 200SP
- Central processing unit with Work memory 200 KB for program and 1 MB for data
- 1st interface: PROFINET IRT with 3-port switch, 48 ns bit performance
- SIMATIC Memory Card required
- BusAdapter required for Port 1 and 2
- Siemens SIMATIC ET 200SP
- Multifunctional and distributed I/O system
- Space-saving design for easy commissioning
- Degree of protection IP20, suitable for compact control boxes
- Multi hot swapping feature for quick module replacement
- Wide range of communication methods
- Integrated MultiFieldbus interface module IM155-6MF for flexible protocol use
- Features and Benefits
- Standardized identification system for simplified installation and service
- Future-proof investment with innovative and long-life automation products
- Consistent
Additional Information
Support
- FAQ
- Siemens Support Portal
- Siemens EcoTechProfil (SEP)
- Application Example
- Sales Brochure
- 3D PDF
Technical Data
- Product Page
- Industry Mall
- Siemens Mall
- Certificates
- Technical Data Sheet
- Declaration of Conformity
Manuals / Links
- Manuals
- Product Note
- Download
- REACH Information
- Safety Data Sheet
- Environmental Product Declaration
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for DeviceNet Safety | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for CAN | false |
| Depth | 75 mm |
| With pluggable modules, communication modules | true |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for PROFIBUS | true |
| With integrated power supply | false |
| Max. input current DC | 0.9 A |
| Supporting protocol for DeviceNet | false |
| Radio standard UMTS | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Degree of protection (IP) | IP20 |
| Number of interfaces PROFINET | 1 |
| Height | 117 mm |
| IO link master | false |
| With bus coupler for modular station connection | true |
| Supporting protocol for INTERBUS-Safety | false |
| With pluggable modules, function and technology modules | true |
| Number of HW-interfaces industrial Ethernet | 1 |
| Radio standard GPRS | false |
| Supporting protocol for PROFINET IO | true |
| System accessory | true |
| With optical interface | true |
| Supporting protocol for LON | false |
| Number of slots | 80 |
| Suitable for safety functions | false |
| Input voltage DC | 19.2 V |
| Supporting protocol for AS-Interface Safety at Work | false |
| Front built-in possible | false |
| Rail mounting possible | true |
| Supporting protocol for SUCONET | false |
| Radio standard GSM | false |
| Radio standard Bluetooth | false |
| Radio standard WLAN 802.11 | false |
| Input voltage DC | 28.8 V |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for other bus systems | false |
| Explosion safety category for dust | None |
| Type of voltage (input voltage) | DC |
| Supporting protocol for SERCOS | false |
| With pluggable modules, analogue I/O | true |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for INTERBUS | false |
| Rack-assembly possible | false |
| With pluggable modules, digital I/O | true |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for Foundation Fieldbus | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for Modbus | true |
| Supporting protocol for ASI | true |
| With pluggable modules, others | true |
| Supporting protocol for KNX | false |
| Width | 100 mm |
| Wall mounting/direct mounting | true |
| With pluggable modules, central modules | true |
