Material ID: 6ES7513-1FL02-0AB0

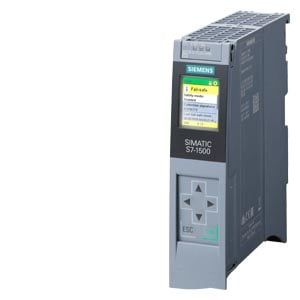

- SIMATIC S7-1500F, CPU 1513F-1 PN
- Central processing unit with working memory: 450 KB for program and 1.5 MB for data
- Interface: PROFINET IRT with 2 port switch, 40 ns bit-performance
- SIMATIC Memory Card necessary
- The SIMATIC S7-1500 Advanced Controller sets new standards in system performance and usability
- Seamless integration in the TIA Portal offers advantages such as common data storage, uniform operating concept, and central services
- Easy use of universal functions with short system response times
- Boosts productivity and enables more flexibility and shorter product launch time
- Various CPU versions available for SIMATIC S7-1500, with several performance classes
- Standard CPUs with the option to integrate C/C++ code
- Compact CPUs with integrated digital and analog I/Os
- Counting inputs and pulse outputs can be measured directly on the CPU
- Fail-safe
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| With display | true |
| Supporting protocol for DeviceNet | false |
| Type of memory | Other |
| Suitable for safety functions | true |
| Redundancy | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for SafetyBUS p | false |
| Additional program memory possible | false |
| Radio standard GSM | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for CAN | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of interfaces PROFINET | 1 |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFINET IO | true |
| IO link master | false |
| Supporting protocol for ASI | false |
| Supporting protocol for PROFIsafe | true |
| Supporting protocol for DeviceNet Safety | false |
| Model | Modular |
| Memory size | 1950 kByte |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for Data-Highway | false |
| Processing time (1K, binary operation) | 0.04 ms |
| Explosion safety category for dust | None |
| Voltage type (supply voltage) | DC |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Number of HW-interfaces industrial Ethernet | 1 |
| Radio standard GPRS | false |
| Wall mounting/direct mounting | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for TCP/IP | true |
| Depth | 129 mm |
| System accessory | true |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for LON | false |
| Width | 35 mm |
| Supporting protocol for EtherCAT | false |
| Radio standard UMTS | false |
| Radio standard Bluetooth | false |
| Supporting protocol for INTERBUS-Safety | false |
| Rail mounting possible | true |
| Supporting protocol for Modbus | true |
| Supply voltage DC | 19.2 V |
| Supporting protocol for EtherNet/IP | false |
| With optical interface | false |
| Supporting protocol for KNX | false |
| Rack-assembly possible | false |
| Height | 147 mm |
| Supporting protocol for SUCONET | false |
| Appendant operation agent (Ex ia) | false |
| Front built-in possible | false |
