Material ID: 6ES7513-2PL00-0AB0

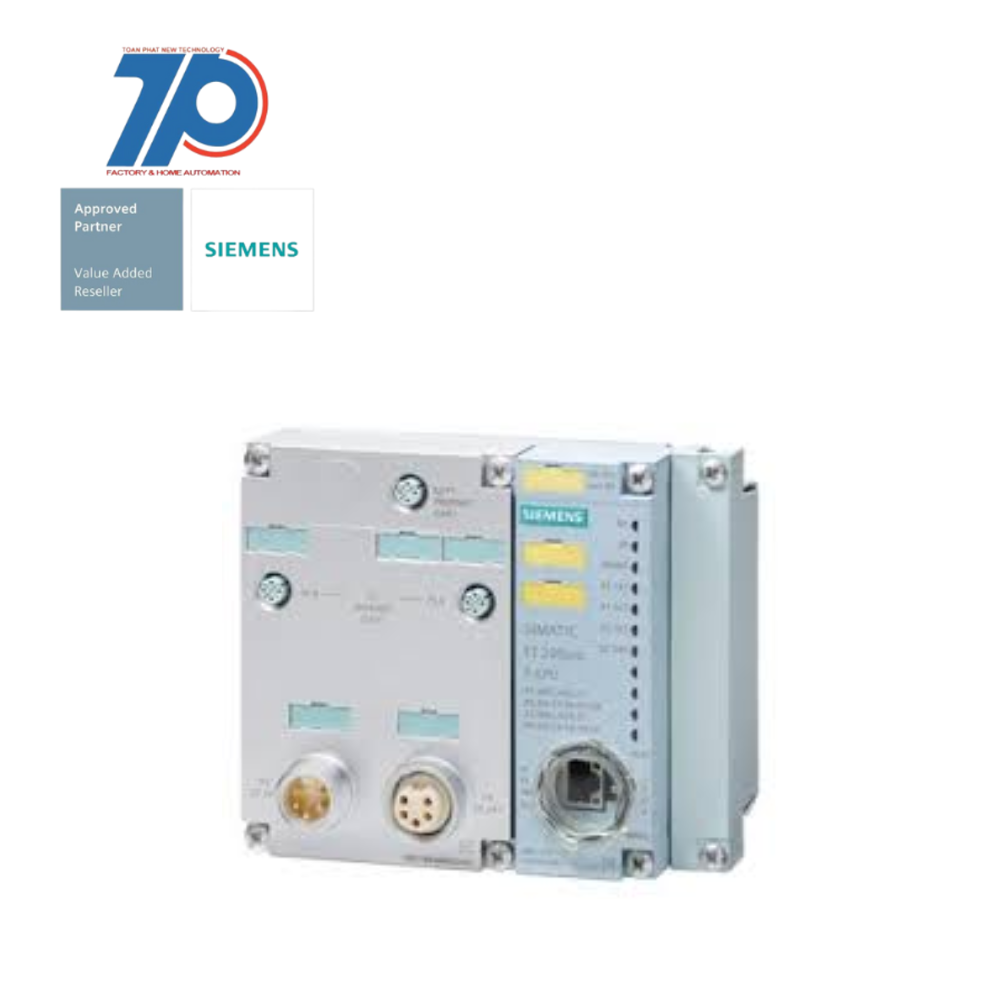

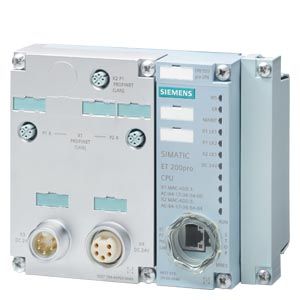

SIMATIC DP, CPU 1513pro-2 PN for ET 200pro

The SIMATIC DP, CPU 1513pro-2 PN for ET 200pro is a central processing unit with 300 KB work memory for program and 1.5 MB for data. It offers high performance with a 40 ns bit performance.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200pro is a modular, rugged, and versatile I/O system with a degree of protection IP65/67. It offers a comprehensive range of modules, allowing for flexible and quick responses to varied automation requirements. The modular design enables direct installation on the machine, eliminating the need for a control cabinet.

The system features extensive and precise diagnostics functions in its High Feature modules, minimizing plant downtimes. Hot swapping allows for the replacement of electronic modules without shutting down the plant, ensuring continuous operation. The rugged construction makes it suitable for high mechanical loads.

Siemens provides a high-quality and flexible complete solution, setting new market standards. The ET 200pro system offers a wide range of modules, including digital and analog input and output modules, fail-safe modules for applications up to SIL 3 / PLe, motor starters, frequency converters, IO-Link master, and a module for connecting RFID component devices via the RS 232 / 422 interface.

    • 1st interface: PROFINET IRT with 3-port switch
    • 2nd interface: PROFINET RT
    • Degree of protection: IP65/67
    • SIMATIC Memory Card required
    • Connection module required
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFIsafefalse
Supporting protocol for INTERBUSfalse
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for LONfalse
Wall mounting/direct mountingtrue
With pluggable modules, otherstrue
Supporting protocol for DeviceNet Safetyfalse
With pluggable modules, analogue I/Otrue
Supporting protocol for Data-Highwayfalse
Depth65 mm
Supporting protocol for other bus systemsfalse
Front built-in possiblefalse
Supporting protocol for PROFINET IOtrue
Supporting protocol for PROFINET CBAfalse
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces other0
Max. input current DC0.4 A
Supporting protocol for AS-Interface Safety at Workfalse
Input voltage DC28.8 V
Number of HW-interfaces parallel0
Supporting protocol for SafetyBUS pfalse
Supporting protocol for SERCOSfalse
With bus coupler for modular station connectiontrue
Radio standard UMTSfalse
Number of HW-interfaces RS-2320
Supporting protocol for KNXfalse
Rack-assembly possiblefalse
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-4220
Supporting protocol for CANfalse
Supporting protocol for PROFIBUSfalse
With pluggable modules, digital I/Otrue
Appendant operation agent (Ex ib)false
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Supporting protocol for EtherNet/IPfalse
With pluggable modules, communication modulestrue
Supporting protocol for TCP/IPtrue
Type of voltage (input voltage)DC
Width135 mm
Number of HW-interfaces industrial Ethernet2
Height130 mm
Radio standard Bluetoothfalse
Number of HW-interfaces wireless0
Radio standard WLAN 802.11false
With pluggable modules, central modulestrue
Number of HW-interfaces RS-4850
With pluggable modules, function and technology modulestrue
System accessorytrue
Number of HW-interfaces serial TTY0
Suitable for safety functionsfalse
IO link masterfalse
Supporting protocol for Foundation Fieldbusfalse
Number of interfaces PROFINET2
Appendant operation agent (Ex ia)false
Input voltage DC20.4 V
Rail mounting possibletrue
Radio standard GSMfalse
