Material ID: 6ES7516-2PN00-0AB0

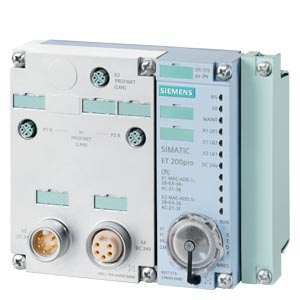

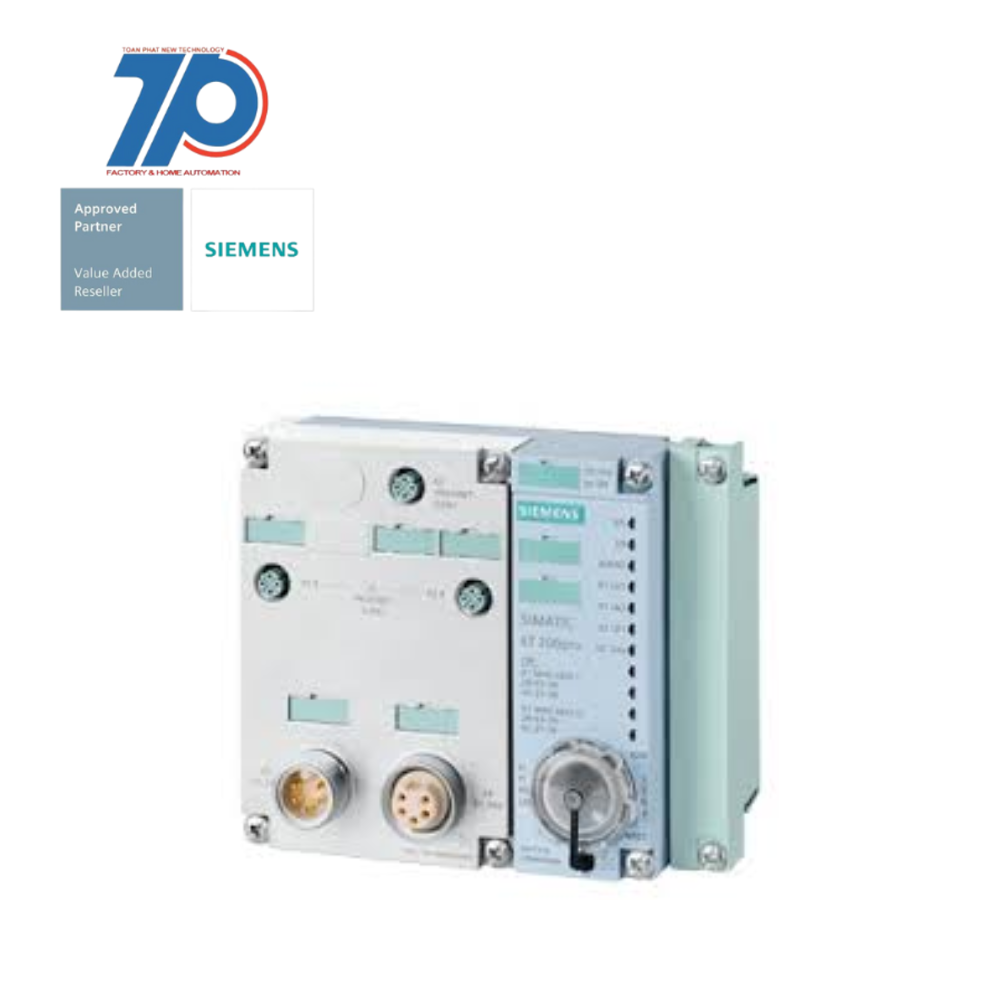

SIMATIC DP, CPU 1516PRO-2 PN for ET 200pro

Central processing unit with Work memory 1 MB for program and 5 MB for data

1st interface: PROFINET IRT with 3-port switch

2nd interface: PROFINET RT

10 ns bit performance

Degree of protection: IP65/67

SIMATIC Memory Card required

Connection module required

Product Overview

SIMATIC ET 200pro is a modular, rugged, and versatile I/O system with a degree of protection IP65/67. It offers a comprehensive range of modules and is designed for space-saving installation directly on the machine, eliminating the need for a control cabinet.

Key Features

Module Range

The ET 200pro system provides a wide range of modules, including:

Commercial Benefits

Siemens offers a high-quality and flexible complete solution for industrial automation needs.

    • Modular design for flexible and quick response to automation requirements
    • Extensive and innovative range of modules
    • Space-saving and simple installation
    • Extensive and precise diagnostics functions in High Feature modules
    • Hot swapping for module replacement without plant shutdown
    • Rugged construction for high mechanical loads
    • Continuous quality management for reliable performance
    • Various digital and analog input and output modules
    • Fail-safe modules for applications up to SIL 3 / PLe
    • Motor starters and frequency converters for motor control
    • Fail-safe variants of motor starters and frequency converters
    • IO-Link master
    • Module for connecting RFID component devices via RS 232 / 422 interface
    • Space-saving design reduces installation footprint
    • Quick and flexible response to automation requirements
    • Extensive diagnostics functions minimize plant downtimes
    • Hot swapping enables module replacement without plant shutdown
    • Rugged construction ensures reliable performance under high mechanical loads
    • Continuous quality management sets new market standards
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Number of slots16
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
Supporting protocol for SERCOSfalse
With pluggable modules, function and technology modulestrue
Supporting protocol for SUCONETfalse
Number of HW-interfaces industrial Ethernet2
Supporting protocol for DeviceNetfalse
With pluggable modules, central modulestrue
Supporting protocol for KNXfalse
Supporting protocol for INTERBUSfalse
Input voltage DC28.8 V
Number of HW-interfaces RS-4850
Front built-in possiblefalse
Supporting protocol for TCP/IPtrue
Radio standard GPRSfalse
Number of HW-interfaces parallel0
With pluggable modules, analogue I/Otrue
Supporting protocol for AS-Interface Safety at Workfalse
Rail mounting possibletrue
With pluggable modules, digital I/Otrue
Supporting protocol for PROFIBUSfalse
Width135 mm
Number of HW-interfaces wireless0
Type of voltage (input voltage)DC
Suitable for safety functionsfalse
Height130 mm
Supporting protocol for LONfalse
Number of HW-interfaces RS-2320
Depth65 mm
With bus coupler for modular station connectiontrue
Appendant operation agent (Ex ib)false
With optical interfacefalse
Rack-assembly possiblefalse
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for EtherNet/IPfalse
Number of interfaces PROFINET2
IO link masterfalse
Supporting protocol for CANfalse
System accessorytrue
Supporting protocol for Foundation Fieldbusfalse
With integrated power supplyfalse
Radio standard GSMfalse
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces USB0
Supporting protocol for DeviceNet Safetyfalse
Appendant operation agent (Ex ia)false
Input voltage DC20.4 V
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces other0
Supporting protocol for Data-Highwayfalse
With pluggable modules, communication modulestrue
Radio standard WLAN 802.11false
Max. input current DC0.4 A
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Supporting protocol for other bus systemsfalse
Radio standard UMTSfalse
Radio standard Bluetoothfalse
Supporting protocol for PROFINET IOtrue
Wall mounting/direct mountingtrue
With pluggable modules, otherstrue
