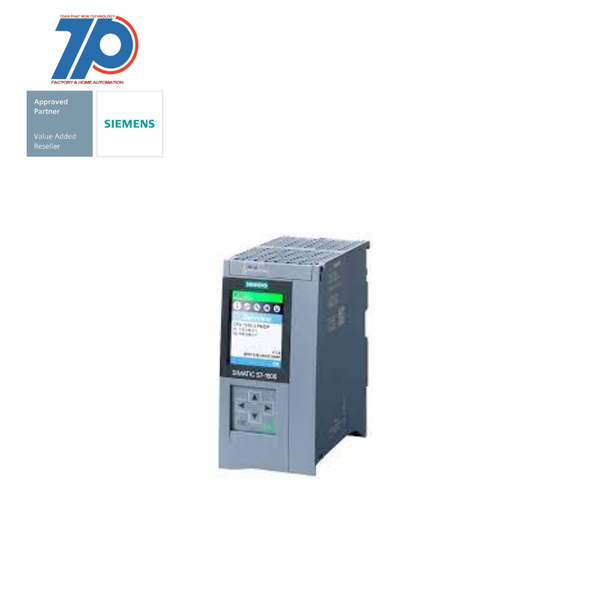

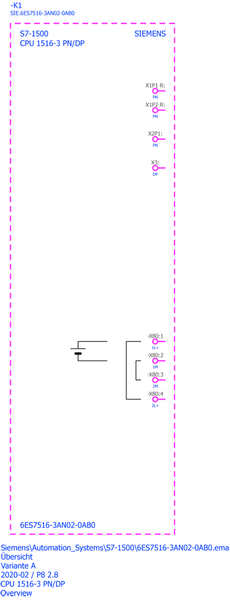

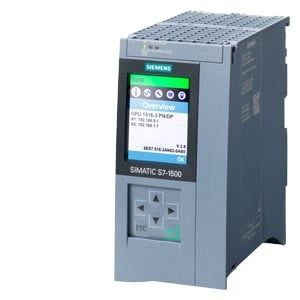

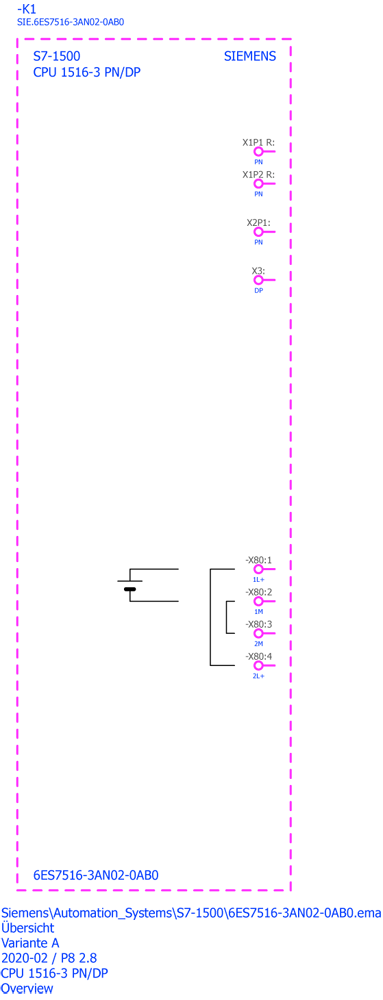

6ES7516-3AN02-0AB0

• SIMATIC S7-1500, CPU 1516-3 PN/DP
• 1 MB work memory for program and 5 MB for data
• 1st interface: PROFINET IRT with 2-port switch
• 2nd interface: PROFINET RT
• 3rd interface: PROFIBUS
• 10 ns bit performance
• SIMATIC Memory Card required
• Seamless integration in the Totally Integrated Automation Portal (TIA Portal)
• Common data storage
• Uniform operating concept
• Central services
• Short system response times
• Boosts productivity
• More flexibility
• Shorter product launch time
• Various CPU versions available
• Standard CPUs with option of integrating C/C++ code
• Compact CPUs with integrated digital and analog I/Os
• Counting inputs and pulse outputs can be measured directly on the CPU
• Fail-safe CPUs for executing Standard and Safety programs
• Technology CPUs for expanding Motion Control functions
• Configured using SIMATIC STEP 7 Professional software
