6ES7516-3FP03-0AB0
86,680,000₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi
Material ID: 6ES7516-3FP03-0AB0

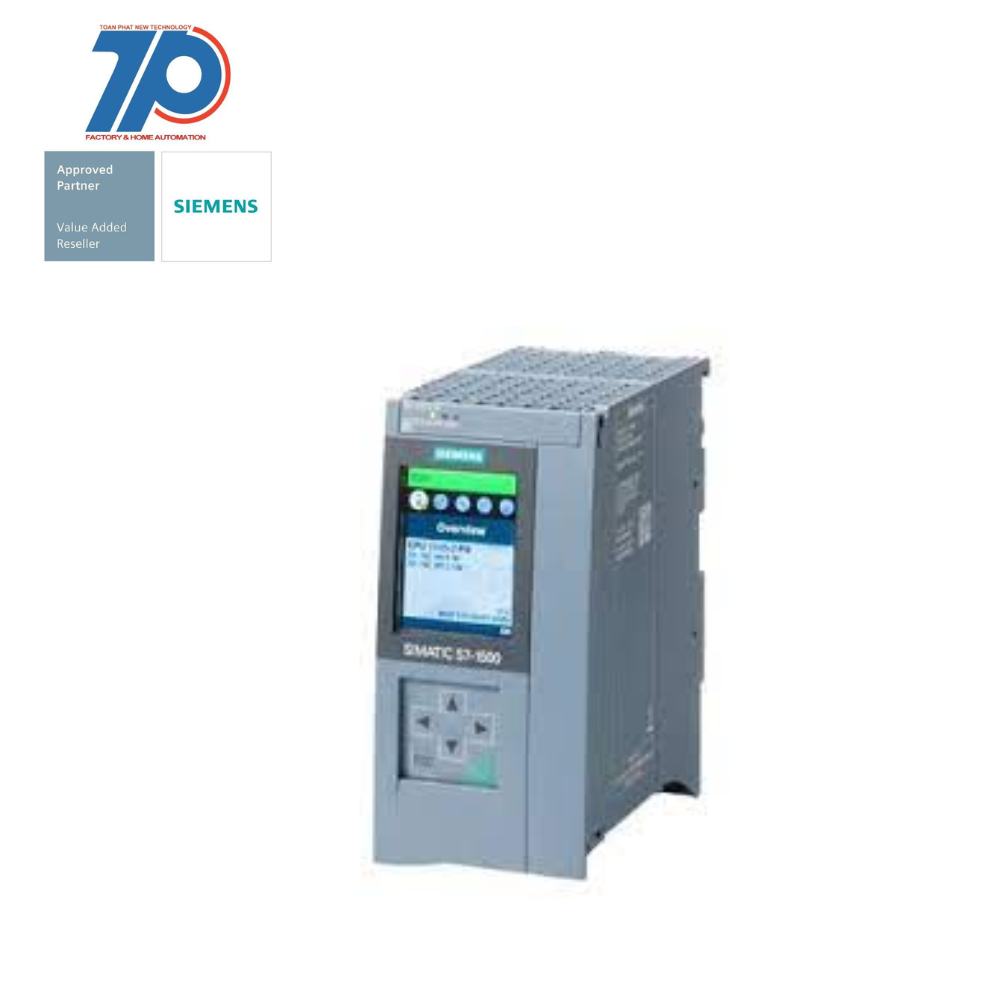

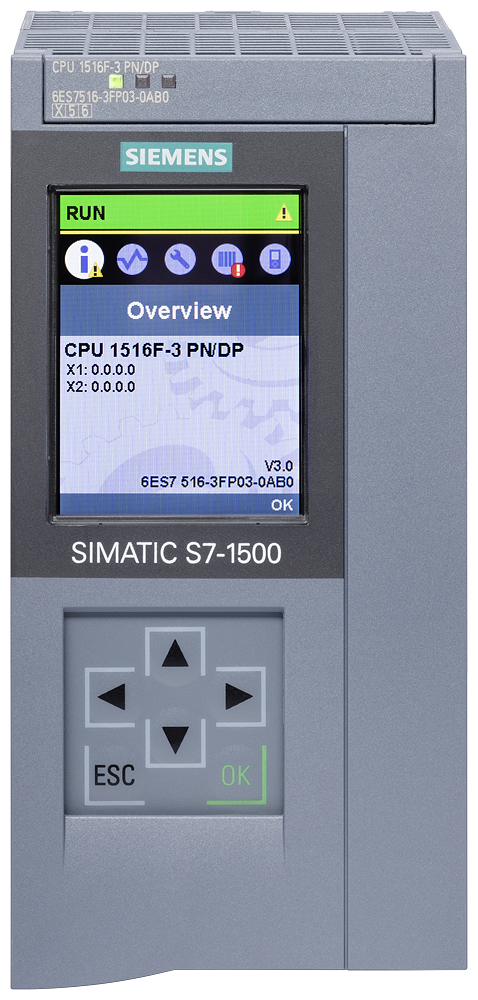

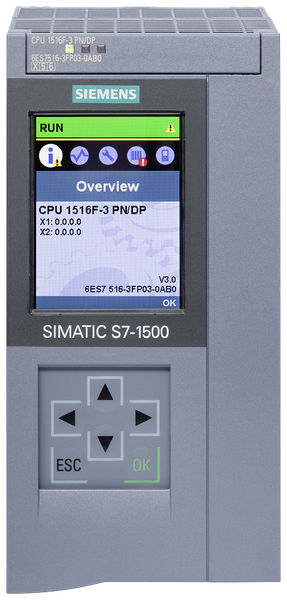

- SIMATIC S7-1500F, CPU 1516F-3 PN/DP
- Central processing unit with work memory: 3 MB for program and 7.5 MB for data
- Interfaces:
- 1st interface: PROFINET IRT with 2-port switch
- 2nd interface: PROFINET RT
- 3rd interface: PROFIBUS
- 6 ns bit performance
- SIMATIC Memory Card required
- Approvals and certificates according to entry 109817466 at support.industry.siemens.com to be considered
- The SIMATIC S7-1500 Advanced Controller sets new standards in system performance and usability
- Seamless integration in the Totally Integrated Automation Portal (TIA Portal) offering advantages like common data storage, uniform operating concept, and central services
- Short system response times for increased productivity
- Various CPU versions available
- Standard CPUs with option for integrating C/C++ code
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Supply voltage DC | 19.2 V |
| Depth | 129 mm |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for DeviceNet | false |
| System accessory | true |
| Supporting protocol for LON | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Memory size | 10500 kByte |
| Model | Modular |
| Explosion safety category for dust | None |
| Supporting protocol for SUCONET | false |
| With optical interface | false |
| Suitable for safety functions | true |
| Height | 147 mm |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for Data-Highway | false |
| With display | true |
| Supporting protocol for SafetyBUS p | false |
| Number of HW-interfaces RS-485 | 1 |
| Supply voltage DC | 28.8 V |
| Supporting protocol for PROFIsafe | true |
| Supporting protocol for PROFINET CBA | false |
| Radio standard GPRS | false |
| Radio standard GSM | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for Foundation Fieldbus | false |
| Width | 70 mm |
| Supporting protocol for KNX | false |
| Supporting protocol for PROFINET IO | true |
| Redundancy | false |
| Number of HW-interfaces industrial Ethernet | 2 |
| Radio standard UMTS | false |
| Processing time (1K, binary operation) | 0.006 ms |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for TCP/IP | true |
| Front built-in possible | false |
| Rack-assembly possible | false |
| Number of interfaces PROFINET | 2 |
| Voltage type (supply voltage) | DC |
| Wall mounting/direct mounting | false |
| Supporting protocol for INTERBUS-Safety | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ib) | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Type of memory | Other |
| Supporting protocol for ASI | false |
| Rail mounting possible | true |
| Supporting protocol for Modbus | true |
| Radio standard Bluetooth | false |
| Supporting protocol for CAN | false |
| Additional program memory possible | false |
| IO link master | false |
