Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

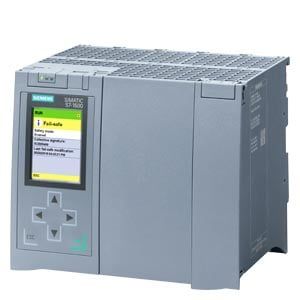

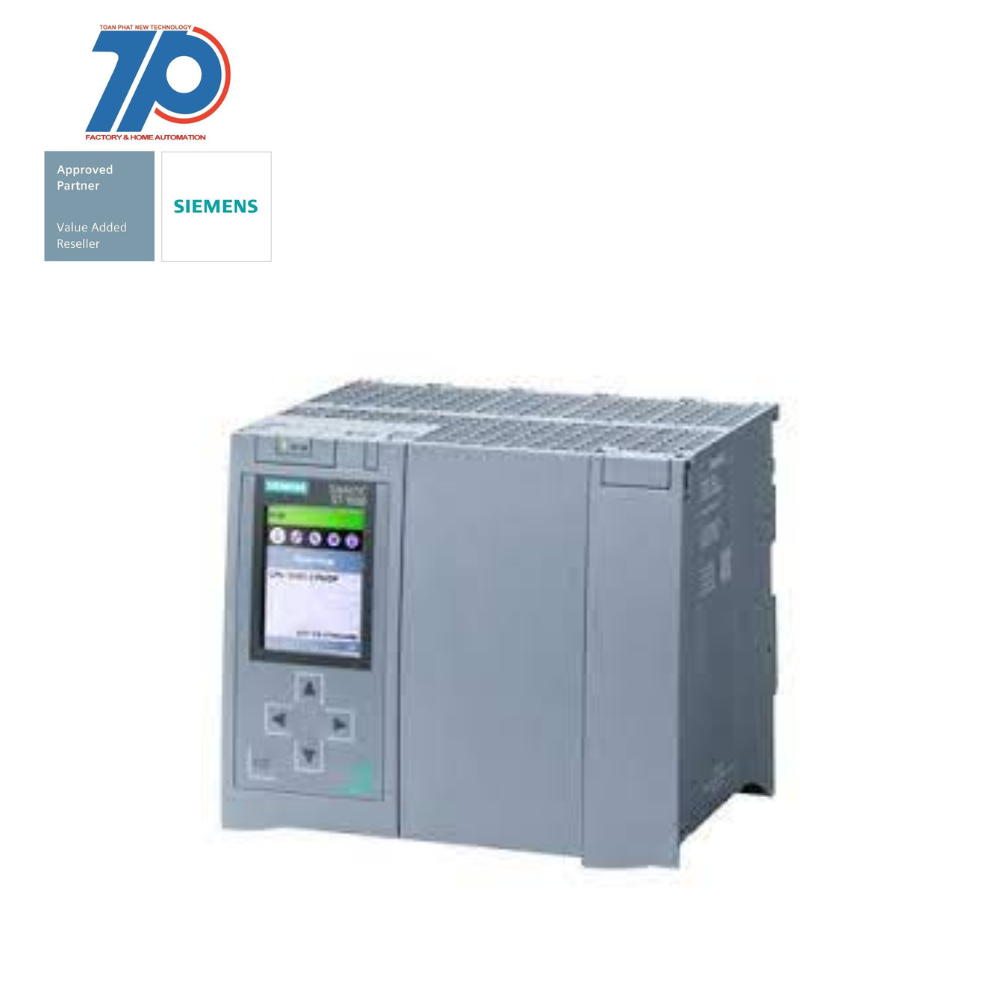

Material ID: 6ES7516-3UN00-0AB0
- SIMATIC S7-1500TF, CPU 1516TF-3 PN/DP
- Work memory: 3 MB for program, 7.5 MB for data
- Interfaces: 1. PROFINET IRT with 2-port switch 2. Ethernet 3. PROFIBUS
- 6 ns bit performance
- SIMATIC Memory Card required
- Features of SIMATIC S7-1500 Advanced Controller:
- New standards for system performance and usability
- Seamless integration in TIA Portal
- Common data storage, uniform operating concept, central services
- Short system response times, boosts productivity
- Various CPU versions available:
- Standard CPUs
- Compact CPUs with integrated digital and analog I/Os
- Fail-safe CPUs for Standard and Safety programs
- Technology CPUs for Motion Control functions
- Configuration using SIMATIC STEP 7 Professional software
- SIMATIC Memory Card
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for SUCONET | false |
| Rack-assembly possible | false |
| Radio standard GSM | false |
| Supporting protocol for INTERBUS | false |
| IO link master | false |
| Supporting protocol for Modbus | true |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for SafetyBUS p | false |
| Depth | 129 mm |
| Supporting protocol for PROFIBUS | true |
| Redundancy | false |
| Height | 147 mm |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for EtherCAT | false |
| Additional program memory possible | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for DeviceNet Safety | false |
| Memory size | 10500 kByte |
| Radio standard UMTS | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFIsafe | true |
| Supporting protocol for AS-Interface Safety at Work | false |
| Type of memory | Other |
| Supporting protocol for KNX | false |
| Supporting protocol for TCP/IP | true |
| Number of HW-interfaces industrial Ethernet | 2 |
| Voltage type (supply voltage) | DC |
| With display | true |
| Wall mounting/direct mounting | false |
| Model | Modular |
| Supporting protocol for CAN | false |
| Supporting protocol for INTERBUS-Safety | false |
| Radio standard GPRS | false |
| Supporting protocol for PROFINET CBA | false |
| Supply voltage DC | 19.2 V |
| With optical interface | false |
| Processing time (1K, binary operation) | 0.006 ms |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ib) | false |
| System accessory | true |
| Supporting protocol for ASI | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for LON | false |
| Supporting protocol for SERCOS | false |
| Radio standard Bluetooth | false |
| Width | 175 mm |
| Supporting protocol for DeviceNet | false |
| Rail mounting possible | true |
| Front built-in possible | false |
| Supply voltage DC | 28.8 V |
| Number of interfaces PROFINET | 2 |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFINET IO | true |
| Suitable for safety functions | true |
| Supporting protocol for other bus systems | false |
