Material ID: 6ES7517-3FP00-0AB0

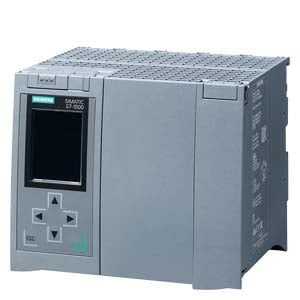

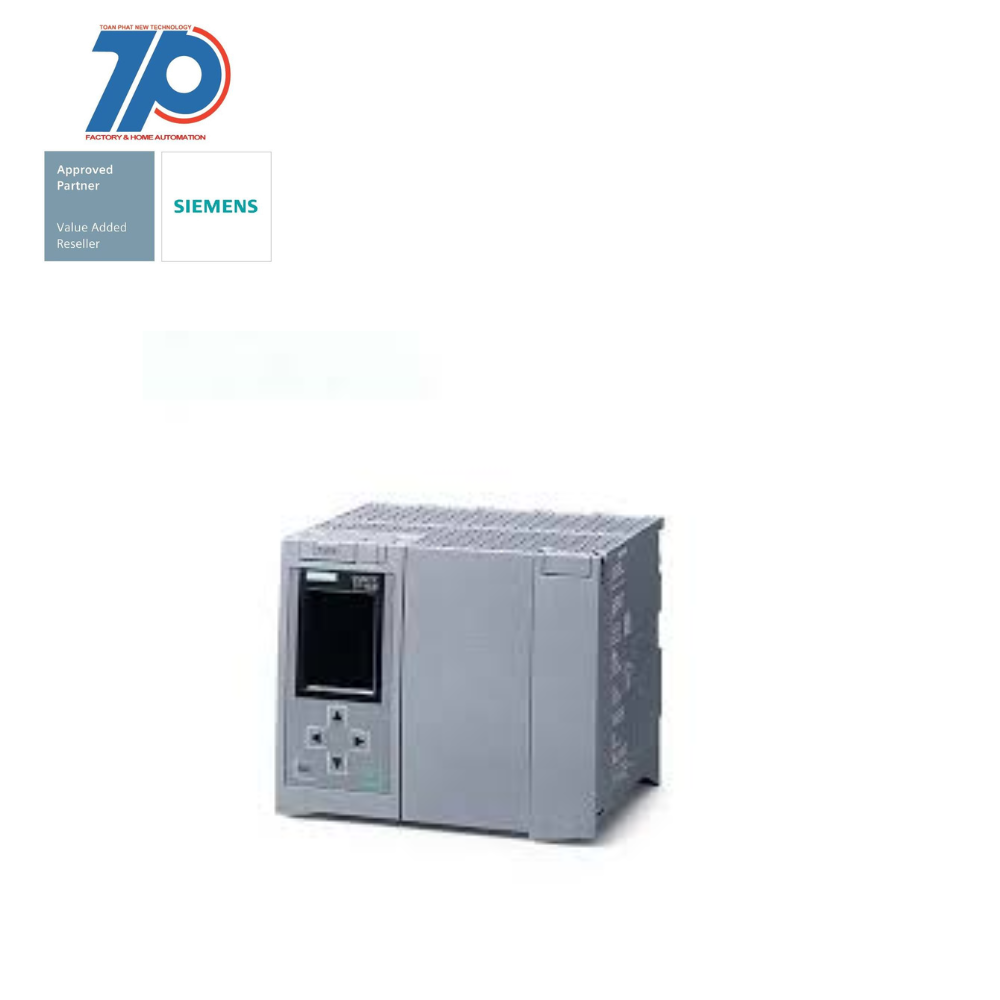

- SIMATIC S7-1500F, CPU 1517F-3 PN/DP
- Central processing unit with work memory: 3 MB for program and 8 MB for data
- 1st interface: PROFINET IRT with 2-port switch
- 2nd interface: PROFINET RT
- 3rd interface: PROFIBUS
- Bit performance: 2 ns
- SIMATIC Memory Card required
- The SIMATIC S7-1500 Advanced Controller sets new standards with system performance and usability
- Seamless integration with TIA Portal for common data storage, uniform operating concept, and central services
- Universal functions made easy to use
- Short system response times boosting productivity
- More flexibility and shorter product launch times
- Various CPU versions available for SIMATIC S7-1500 in different performance classes
- Standard CPUs with the option of integrating C/C++ code
- Compact CPUs with integrated digital and analog I/O
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Model | Modular |
| Processing time (1K, binary operation) | 0.002 ms |
| Supporting protocol for PROFIsafe | true |
| Supply voltage DC | 19.2 V |
| Additional program memory possible | false |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for AS-Interface Safety at Work | false |
| Wall mounting/direct mounting | false |
| Front built-in possible | false |
| Explosion safety category for dust | None |
| Supporting protocol for Data-Highway | false |
| System accessory | true |
| Supporting protocol for LON | false |
| Supporting protocol for PROFINET IO | true |
| Appendant operation agent (Ex ia) | false |
| Radio standard GPRS | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for ASI | false |
| Width | 175 mm |
| Redundancy | false |
| Radio standard UMTS | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for CAN | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for Foundation Fieldbus | false |
| Number of HW-interfaces industrial Ethernet | 2 |
| Height | 147 mm |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for Modbus | true |
| Memory size | 11000 kByte |
| Supporting protocol for SafetyBUS p | false |
| Suitable for safety functions | true |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for SUCONET | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for DeviceNet | false |
| With display | true |
| Type of memory | Other |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ib) | false |
| Depth | 129 mm |
| Radio standard GSM | false |
| With optical interface | false |
| Radio standard WLAN 802.11 | false |
| IO link master | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for SERCOS | false |
| Radio standard Bluetooth | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for KNX | false |
| Supply voltage DC | 28.8 V |
| Rail mounting possible | true |
| Number of interfaces PROFINET | 2 |
| Rack-assembly possible | false |
