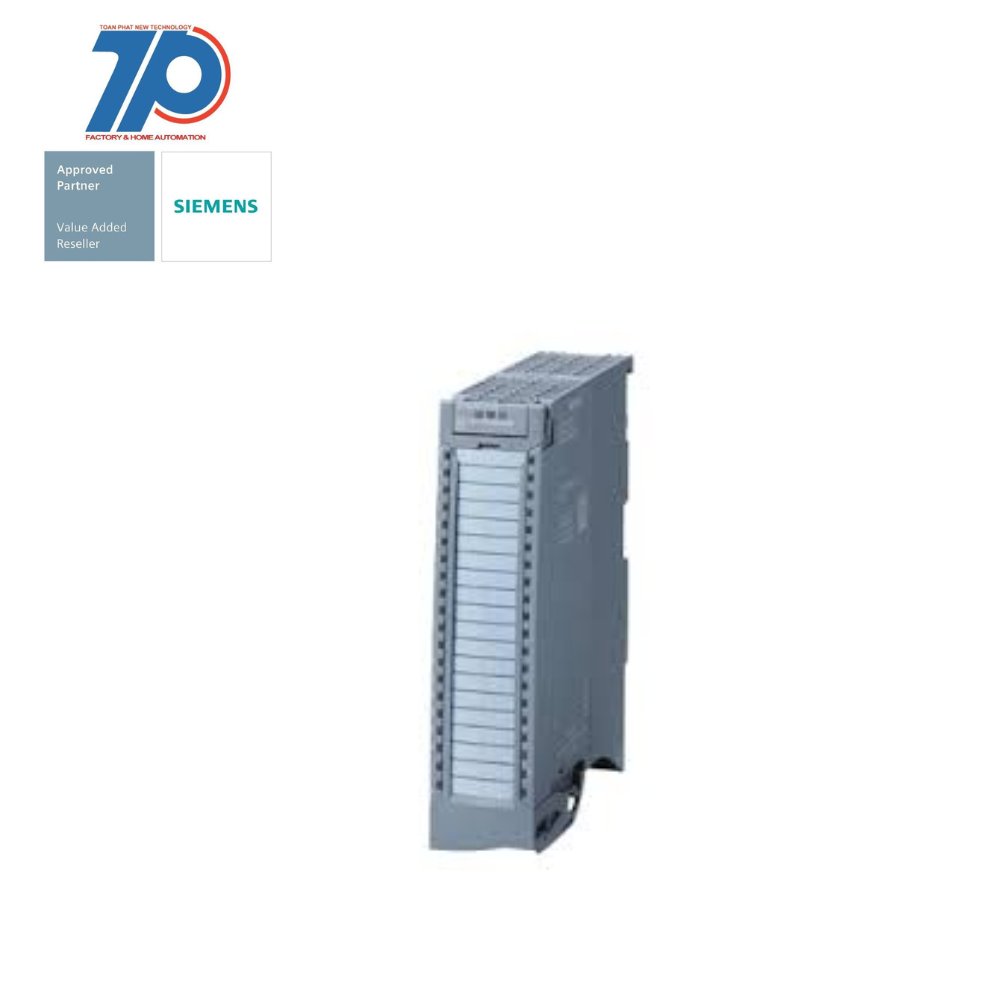

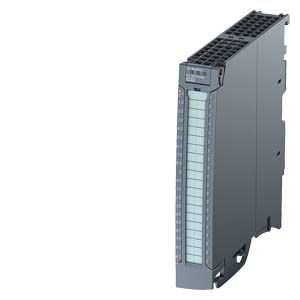

6ES7522-1BH01-0AB0

• SIMATIC S7-1500, digital output module DQ16x24 V DC/0.5A HF
• 16 channels in groups of 8
• 4 A per group
• Single-channel diagnostics
• Substitute value: switching cycle counter for connected actuators
• The module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015
• Front connector (screw terminals or push-in) to be ordered separately
• SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500
• It permits the shortest bus cycle times and fastest response times, even with large volumes of data
• The distributed I/O system is particularly easy to install, wire, and commission
• Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements
• The scalable configuration of an ET 200MP station is ensured by the wide range of signal modules
• A large number of digital and analog input and output modules are available
• This ensures the universal applicability of the system

Additional Information
