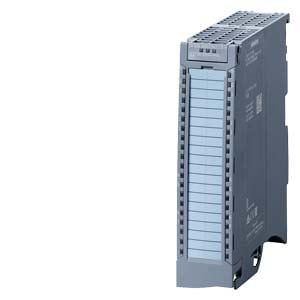

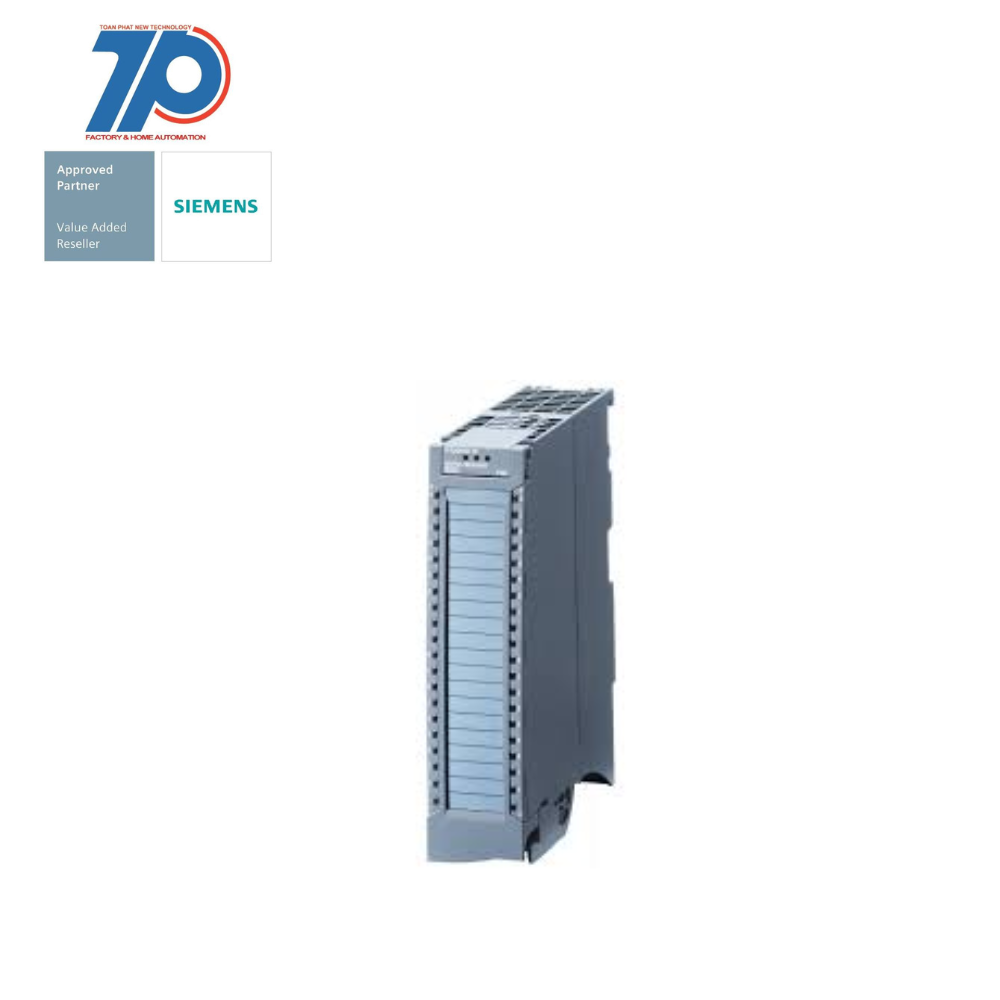

6ES7522-5EH00-0AB0 SIMATIC S7-1500 DQ 16x24 ... 48 V UC/125 V DC/0,5 A ST 35 mm Siemens

Simatic S7-1500 cho cấu hình cá nhân hóa.

Thông số kỹ thuật:

• Module Type:Digital output module DQ16x24..48VUC/125V DC/0.5A ST

• Channels:16 channels in group 1

• Current per channel:0.5 A for each group

• Safety Performance:Supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015

• Connection:Front connector (screw terminal or push-in), ordered separately

• Expansion Capability:Modular and expandable with IP20 for general use

• Bus Cycle Time:Allows the shortest bus cycle time and fastest response time even with large data volumes

• Installation:Easy wiring and commissioning of the distributed I/O system

• Signal Module Range:Extensive range of digital and analog input and output modules available

Lợi ích cho khách hàng:

• Flexibility:The design allows precise adjustment of the IO station according to on-site requirements.

• Wide Application:The extensive variety of signal modules ensures broad applicability of the system.

• Efficiency:Achieves high performance even in complex industrial environments with varying data loads.

• Ease of Use:Simplified installation and set-up processes enhance operational efficiency.
