6ES7522-5HF00-0AB0

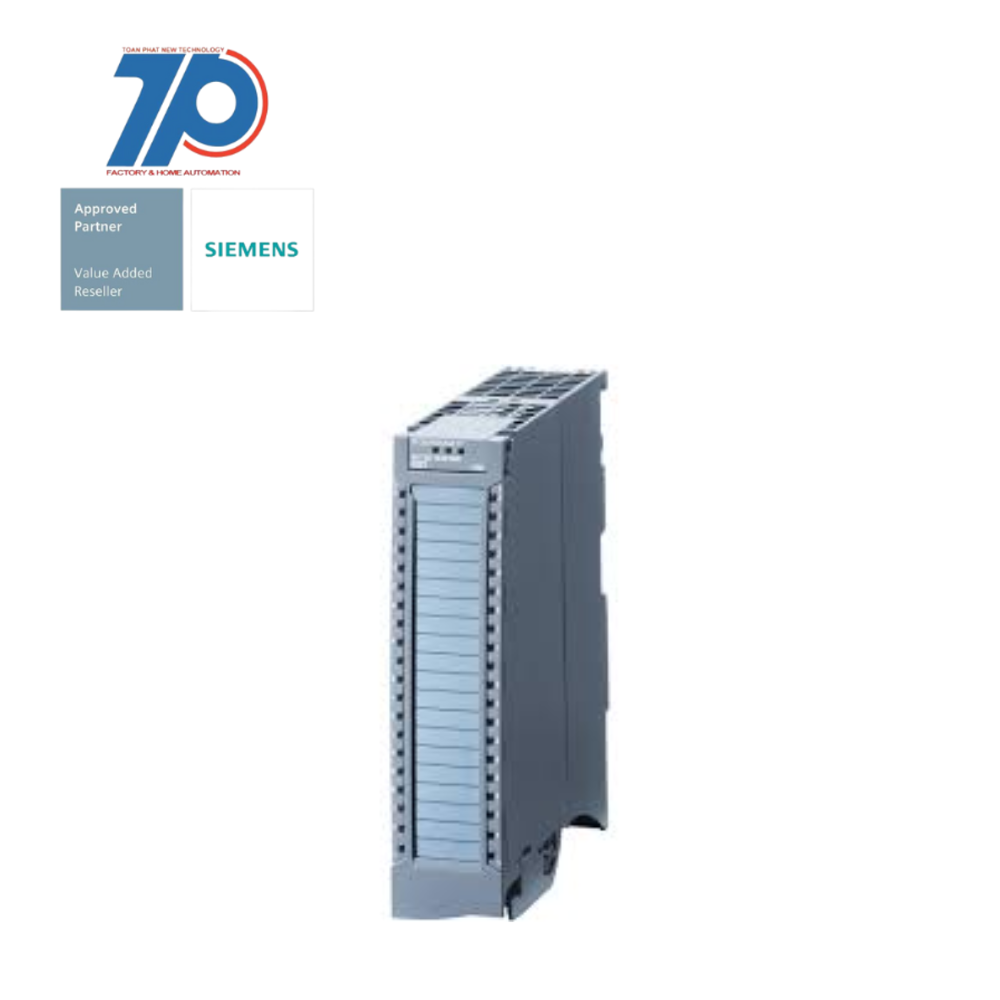

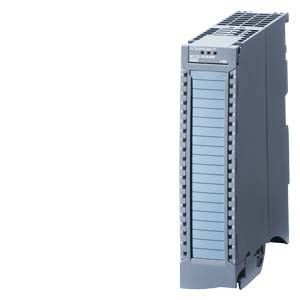

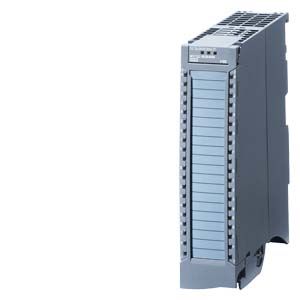

SIMATIC S7-1500, digital output module DQ 8xAC 230V/5A ST

The SIMATIC S7-1500 digital output module DQ 8xAC 230V/5A ST is a relay module with 8 channels in groups of 1. Each group can handle a current of 5A. The module supports diagnostics and has a substitute value feature, which includes a switching cycle counter for the integrated relay.

The module is designed to support the safety-oriented shutdown of load groups up to SIL1 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015.

The front connector for this module, whether it is screw terminals or push-in, needs to be ordered separately.

SIMATIC ET 200MP

SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use. It offers the same system advantages as the S7-1500.

This I/O system allows for the shortest bus cycle times and fastest response times, even with large volumes of data.

The distributed I/O system is easy to install, wire, and commission. Its scalable design allows for the configuration of an ET 200MP station to be tailored to the specific on-site requirements.

The system offers a wide range of signal modules, including a large number of digital and analog input and output modules, ensuring its universal applicability.
