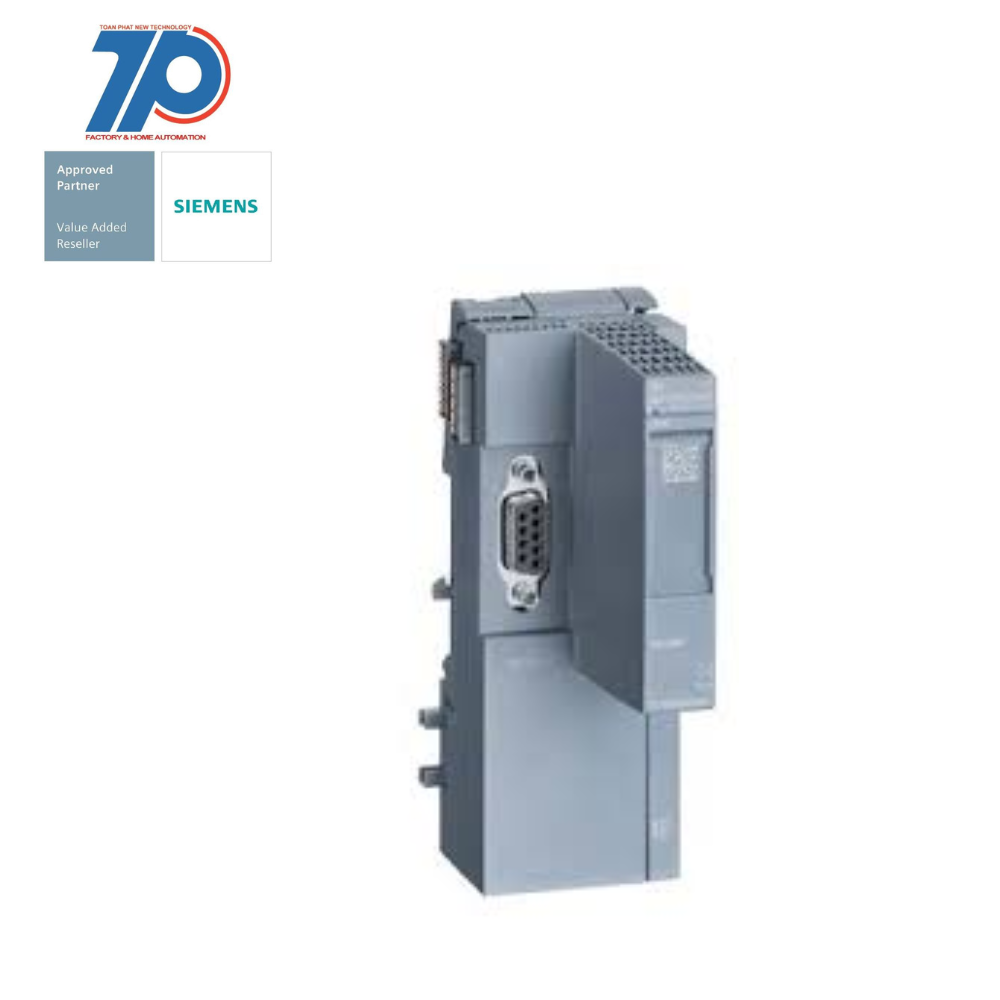

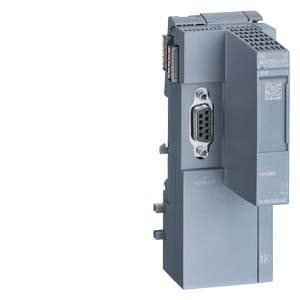

Material ID: 6ES7545-5DA00-0AB0
- SIMATIC DP, CM PROFIBUS DP for ET 200SP CPU module with PROFIBUS DP interface (9-pole D-sub socket)
- DP master for 125 DP slaves
- DP slave
- Approved for degree of protection IP20 and for installation in a compact control box
- Multi hot swapping feature for easy module replacement
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF for flexible protocol selection
- Standardized identification system for simplified installation and service
- Future-proof investment with innovative and long-life automation products
- Consistent data availability, flexible use cases, and versatile integration options
- Communication modules for expanded communication capabilities
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for KNX | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for LON | false |

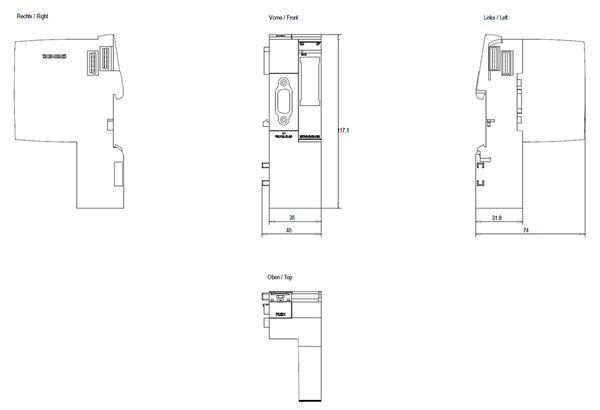

| Height | 117 mm |
| IO link master | false |
| Supporting protocol for CAN | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for SERCOS | false |
| Radio standard LTE | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for DeviceNet Safety | false |
| Radio standard Bluetooth | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for PROFIsafe | false |
| System accessory | true |
| Depth | 75 mm |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for ASI | false |
| Supporting protocol for other bus systems | false |
| Radio standard UMTS | false |
| Radio standard eGPRS | false |
| Rail mounting possible | true |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for Modbus | false |
| With potential separation | true |
| Supporting protocol for INTERBUS | false |
| Suitable for safety functions | false |
| Supporting protocol for DeviceNet | false |
| Radio standard GPRS | false |
| Appendant operation agent (Ex ia) | false |
| Radio standard GSM | false |
| Width | 35 mm |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for PROFINET CBA | false |
| Supply voltage DC | 28.8 V |
| Front built-in possible | false |
| Appendant operation agent (Ex ib) | false |
| Rack-assembly possible | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for EtherNet/IP | false |
