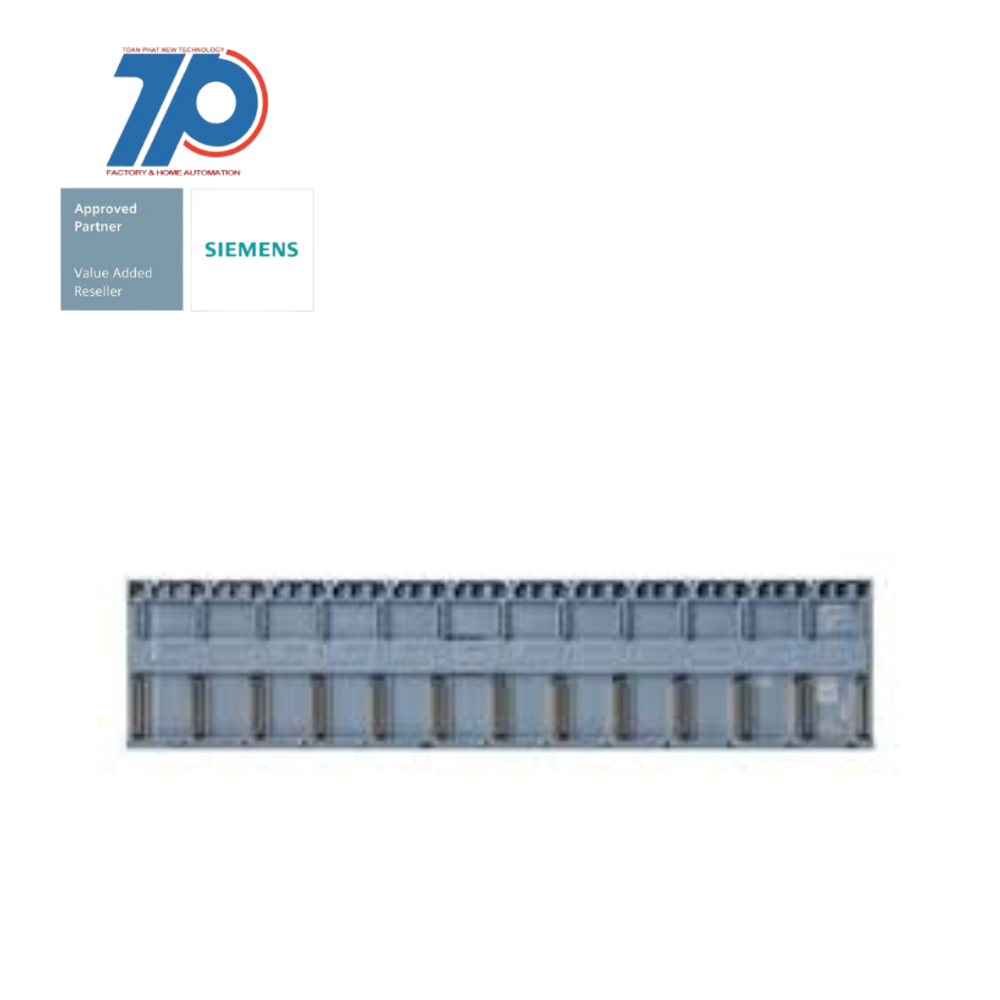

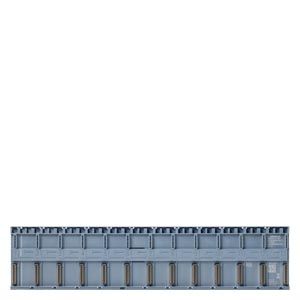

Material ID: 6ES7590-0BL00-0AA0

SIMATIC S7-1500 / ET 200MP

The SIMATIC S7-1500 / ET 200MP is a modular and scalable I/O system with IP20 for universal use. It offers the same system advantages as the S7-1500.

Technical Features:

Commercial Benefits:

    • Active backplane bus with 12 slots for inserting S7-1500 I/O modules for hot swapping
    • Compatible with ET 200MP with IM 155-5 PN HF (from FW V4.4.1)
    • S7-1500 mounting rail and slot covers to be ordered separately
    • Shortest bus cycle times and fastest response times, even with large volumes of data
    • Easy installation, wiring, and commissioning
    • Scalable design to meet on-site requirements
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Depth14 mm
Height99 mm
Wall mounting/direct mountingtrue
Redundancyfalse
With integrated power supplyfalse
Appendant operation agent (Ex ia)false
Number of slots13
Appendant operation agent (Ex ib)false
Width434 mm
Front built-in possiblefalse
Suitable for safety functionsfalse
Rack-assembly possibletrue
Rail mounting possiblefalse
