6ES7615-4DF10-0AB0

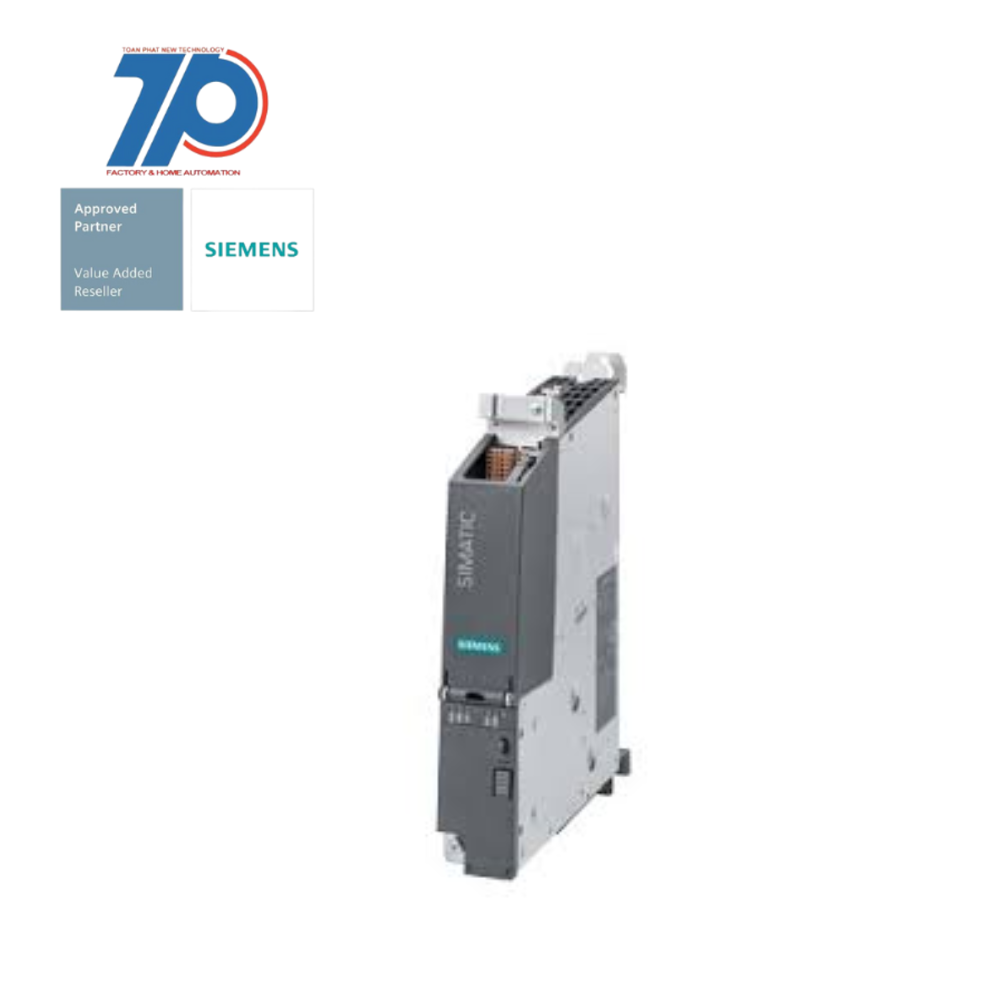

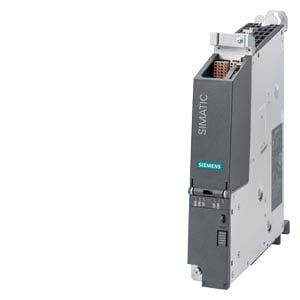

SIMATIC S7-1500, Drive Controller CPU 1504D TF with SINAMICS S120 Integrated

The SIMATIC S7-1500 Drive Controller CPU 1504D TF is a powerful controller that integrates motion control functionality, technological functionality, and PLC functionality directly into the SINAMICS S120 multi-axis drive system. This integration eliminates the need for additional space for a separate controller.

Technical Features:

Commercial Benefits:

The SIMATIC S7-1500 Drive Controller offers comprehensive interfaces and technology I/Os, enabling the efficient implementation of compact and modular automation solutions. Its quick system response times make it an ideal solution for systems with large axis quantity structures and minimum cycle times for high machine clock rates. It also ensures optimum product quality through deterministic and reproducible machine behavior.

The SIMATIC S7-1500 Drive Controller is available in two performance classes, including fail-safe technology CPUs, to meet the demands of even the most challenging motion control solutions.

To configure the SIMATIC S7-1500 Drive Controller, you will need the software SIMATIC STEP 7 Professional and SINAMICS Startdrive.

The SIMATIC Drive Controller can be expanded with components from the modular SINAMICS S120 drive system and SIMATIC automation components such as HMI and I/O systems.

• • Interfaces: 12 DI, 16 DI/DQ, 4 DRIVE-CLiQ, 3 PROFINET: 3+1+1 ports, 1 PROFIBUS
  • Supported firmware version: SIMATIC S7-1500 FW up to V3.1 (technology version up to V8.0), SINAMICS FW V5.2/V5.2 SP3
  • SIMATIC Memory Card required for operation
