6ES7615-7DF10-0AB0

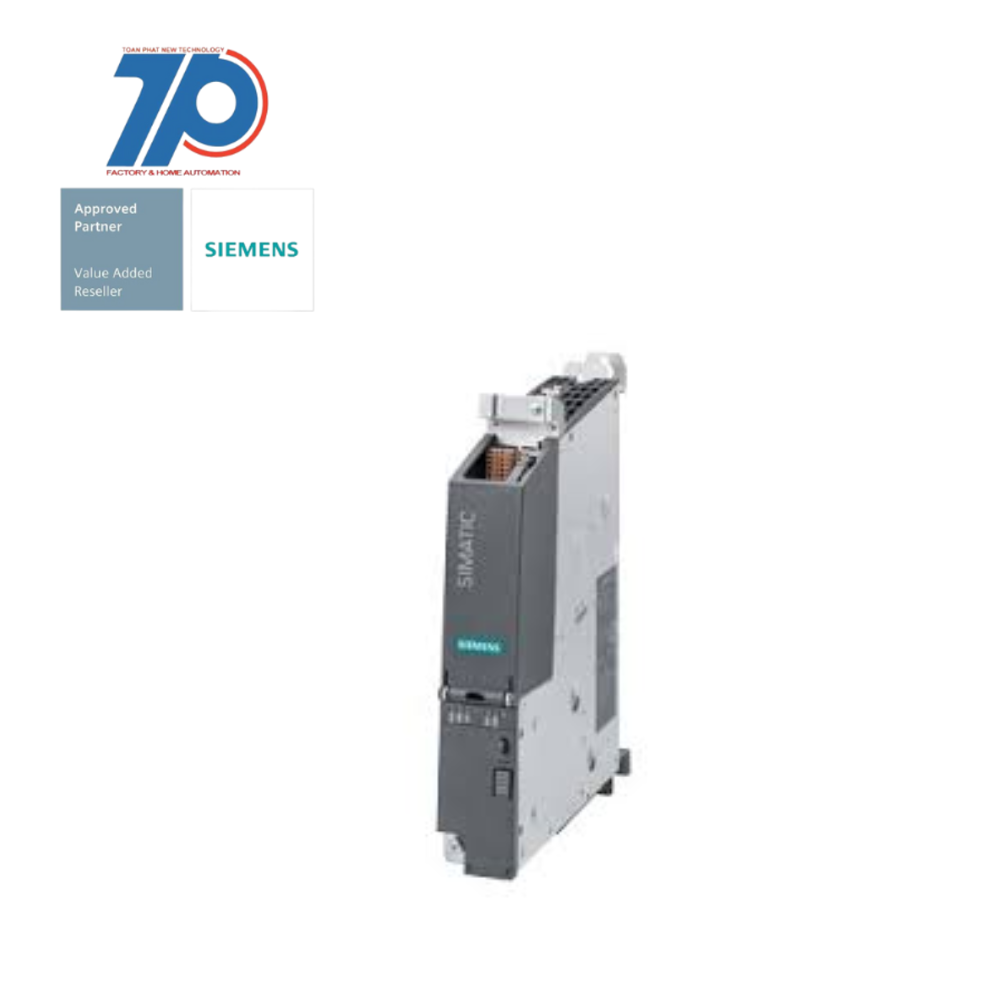

SIMATIC S7-1500, Drive Controller CPU 1507D TF with SINAMICS S120 Integrated

The SIMATIC S7-1500 Drive Controller is a powerful solution that integrates motion control functionality, technological functionality, and PLC functionality directly into the SINAMICS S120 multi-axis drive system. This integration eliminates the need for additional space for a separate controller.

Technical Features:

Commercial Benefits:

The SIMATIC S7-1500 Drive Controller offers comprehensive interfaces and technology I/Os, enabling the efficient implementation of compact and modular automation solutions. Its quick system response times make it ideal for systems with large axis quantity structures and minimum cycle times for high machine clock rates.

With deterministic and reproducible machine behavior, this drive controller ensures optimum product quality. It is particularly suitable for applications that demand high machine performance and precise control.

Performance Classes:

The SIMATIC S7-1500 Drive Controller is available in two performance classes, including fail-safe technology CPUs. This makes it suitable for even the most demanding motion control solutions.

Configuration:

The SIMATIC S7-1500 Drive Controller is configured using the software SIMATIC STEP 7 Professional and SINAMICS Startdrive. Please note that a SIMATIC memory card is required for the operation of this module.

Expansion:

The SIMATIC Drive Controller can be expanded with components of the modular SINAMICS S120 drive system and SIMATIC automation components such as HMI and I/O systems.

• • Interfaces: 12 DI, 16 DI/DQ, 4 DRIVE-CLiQ, 3 PROFINET: 3+1+1 ports, 1 PROFIBUS
  • Supported firmware version: SIMATIC S7-1500 FW up to V3.1 (technology version up to V8.0), SINAMICS FW V5.2/V5.2 SP3
  • SIMATIC Memory Card required for operation
