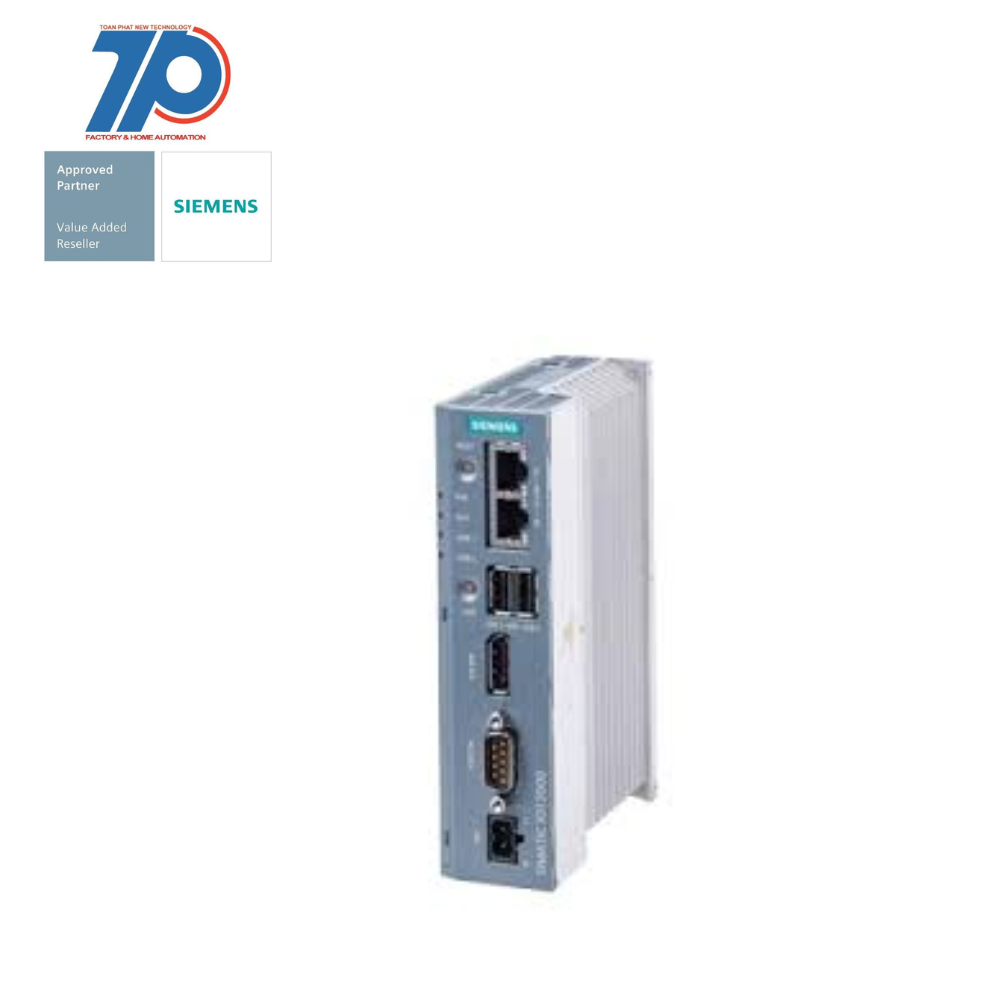

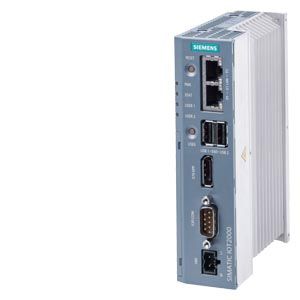

Material ID: 6ES7647-0BA00-0YA2
- SIMATIC IOT2050, 2x Gbit Ethernet RJ45
- Display port
- 2x USB2.0
- SD card slot
- 24 V DC industrial power supply
- The SIMATIC IOT2050 is the reliable, open platform designed for the acquisition, processing and transfer of data directly in the production environment.
- It is ideally suited for use as a gateway between the cloud or company IT level and production.
- The openness of the system in supporting numerous communication protocols and programming in high-level languages enables tailored solutions.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Operating temperature | 50 °C |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for other bus systems | true |
| Supporting protocol for SUCONET | false |
| Height | 142 mm |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supply voltage DC | 12 V |
| With hard disc | false |
| With optical drive | false |
| Supporting protocol for KNX | false |
| Rack-assembly possible | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for SafetyBUS p | false |
| Radio standard GPRS | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for EtherNet/IP | false |
| Number of HW-interfaces USB | 2 |
| Max. main memory | 1000 MB |
| Suitable for safety functions | false |
| IO link master | false |
| Supporting protocol for PROFIsafe | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for LON | false |
| Radio standard Bluetooth | false |
| Supporting protocol for SERCOS | false |
| Radio standard WLAN 802.11 | false |
| Number of HW-interfaces RS-232 | 1 |
| Supporting protocol for ASI | false |
| Supporting protocol for Foundation Fieldbus | false |
| Operating temperature | 0 °C |
| Rail mounting possible | true |
| Radio standard GSM | false |
| With floppy disc drive | false |
| Construction type housing | Box |
| Radio standard UMTS | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for INTERBUS-Safety | false |
| Number of storage media bays | 1 |
| Wall mounting/direct mounting | true |
| Front built-in possible | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for CAN | false |
| Supporting protocol for Modbus | false |
| Number of interfaces PROFINET | 2 |
| Number of HW-interfaces RS-422 | 1 |
| Depth | 100 mm |
| Supporting protocol for EtherCAT | false |
| With sound card | false |
| With graphic card | true |
| Width | 37 mm |
| Processor clock rate | 1 GHz |
| Number of HW-interfaces industrial Ethernet | 2 |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for Data-Highway | false |
