Material ID: 6ES7655-5DX40-2AA0

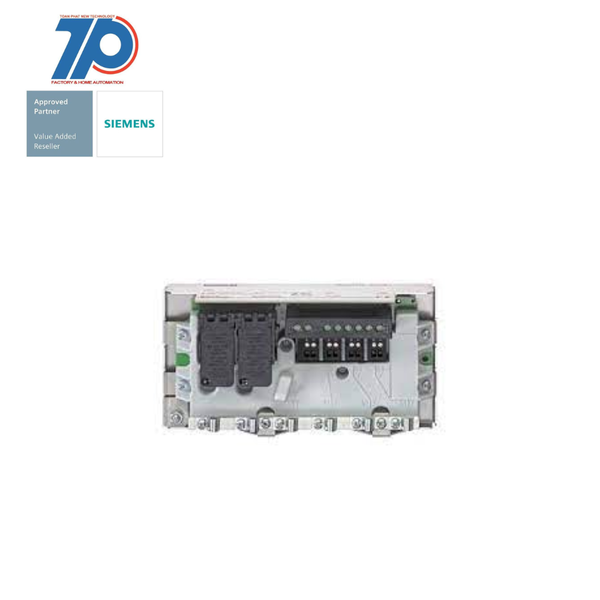

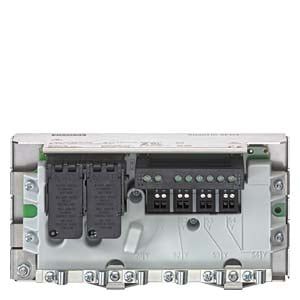

- Active field distributor AFD4 for standard mounting rail mounting without enclosure
- PROFIBUS PA for foundation Fieldbus H1
- 4 short circuit-proof spur lines with bounce protection logic
- Automatic bus termination for line and ring topology
- Extended temperature range
- Degree of protection IP20
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard UMTS | false |
| Radio standard GPRS | false |
| Supporting protocol for KNX | false |
| Degree of protection (IP) | IP20 |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for Data-Highway | false |
| Supply voltage DC | 32 V |
| Radio standard GSM | false |
| Depth | 83 mm |
| With potential separation | true |
| Supporting protocol for INTERBUS | false |
| System accessory | true |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for ASI | false |
| Radio standard LTE | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for LON | false |
| Supply voltage DC | 16 V |
| Supporting protocol for SERCOS | false |
| Height | 120 mm |
| Supporting protocol for AS-Interface Safety at Work | false |
| Width | 220 mm |
| Radio standard eGPRS | false |
| Radio standard Bluetooth | false |
