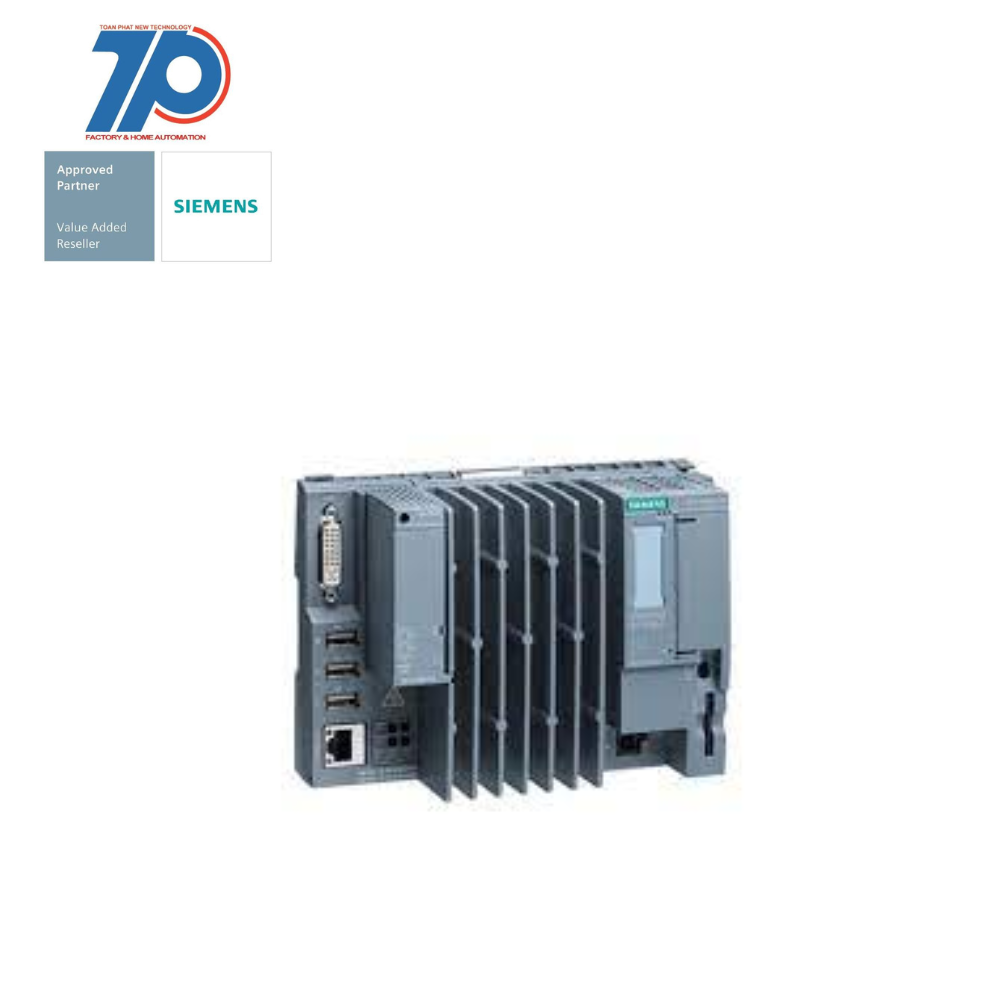

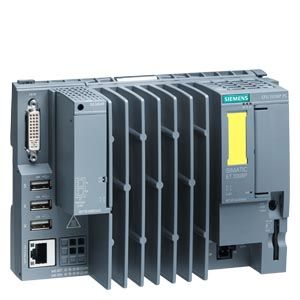

Material ID: 6ES7677-2FA41-0FK0
- SIMATIC ET 200SP Open Controllers
- CPU 1515SP PC F +HMI 128PT
- 4 GB RAM
- 30 GB CFAST with WES 7 P 64 bit pre-installed
- mit S7-1500 Fail-safe SWC CPU 1505SP F pre-installed with WinCC Runtime Advanced V14 pre-installed with 128 PowerTags license
- Interfaces: 1x slot CFAST, 1x slot SD/MMC, 1x connection for ET 200SP bus adapter PROFINET 1x 10/100/1000 Mbit/s Ethernet, 3x USB, 1x DVI-I graphics card connection
- Documentation on DVD
- Restore DVD
SIMATIC ET 200SP is a multifunctional and distributed I/O system with a space-saving design. It has a degree of protection IP20 and can be installed in a compact control box. The system allows for easy module replacement with the multi hot swapping feature. It offers various communication methods and supports multiple Ethernet protocols with the integrated MultiFieldbus interface module IM155-6MF. Installation and service are simplified with a standardized identification system and color-coded connector assignments. Siemens guarantees a future-proof investment with innovative and long-life automation products. The SIMATIC ET 200SP Open Controller combines the functions of a PC-based software controller, visualization, PC applications, and central I/Os in a single device. It is also available in a fail-safe design and with HMI functionality.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Front built-in possible | false |
| With pluggable modules, function and technology modules | true |
| Radio standard GSM | false |
| Radio standard WLAN 802.11 | false |
| Depth | 75 mm |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for INTERBUS-Safety | false |
| Radio standard UMTS | false |
| With pluggable modules, communication modules | true |
| Input voltage DC | 19.2 V |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Number of HW-interfaces USB | 3 |
| Rail mounting possible | true |
| Supporting protocol for CAN | false |
| Supporting protocol for Foundation Fieldbus | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for PROFINET CBA | false |
| Explosion safety category for dust | None |
| Supporting protocol for TCP/IP | true |
| With pluggable modules, central modules | true |
| Supporting protocol for KNX | false |
| Width | 160 mm |
| Rack-assembly possible | false |
| Supporting protocol for SUCONET | false |
| Radio standard GPRS | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for other bus systems | false |
| Input voltage DC | 28.8 V |
| Number of HW-interfaces industrial Ethernet | 2 |
| With bus coupler for modular station connection | true |
| Type of voltage (input voltage) | DC |
| Wall mounting/direct mounting | true |
| With optical interface | false |
| Supporting protocol for LON | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for EtherNet/IP | false |
| Number of interfaces PROFINET | 1 |
| Number of slots | 64 |
| Degree of protection (IP) | IP20 |
| IO link master | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for PROFIsafe | true |
| System accessory | true |
| Appendant operation agent (Ex ib) | false |
| With pluggable modules, others | true |
| Suitable for safety functions | true |
| With pluggable modules, digital I/O | true |
| Supporting protocol for SafetyBUS p | false |
| Number of HW-interfaces RS-485 | 1 |
| Radio standard Bluetooth | false |
| Supporting protocol for INTERBUS | false |
| Height | 117 mm |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for Modbus | true |
| Supporting protocol for ASI | false |
| With pluggable modules, analogue I/O | true |
| Supporting protocol for DeviceNet Safety | false |
| With integrated power supply | true |
