Material ID: 6ES7677-2SB42-0GL0

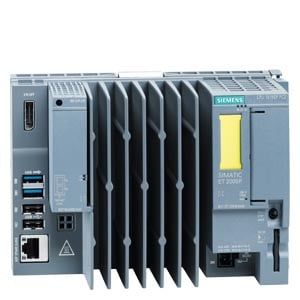

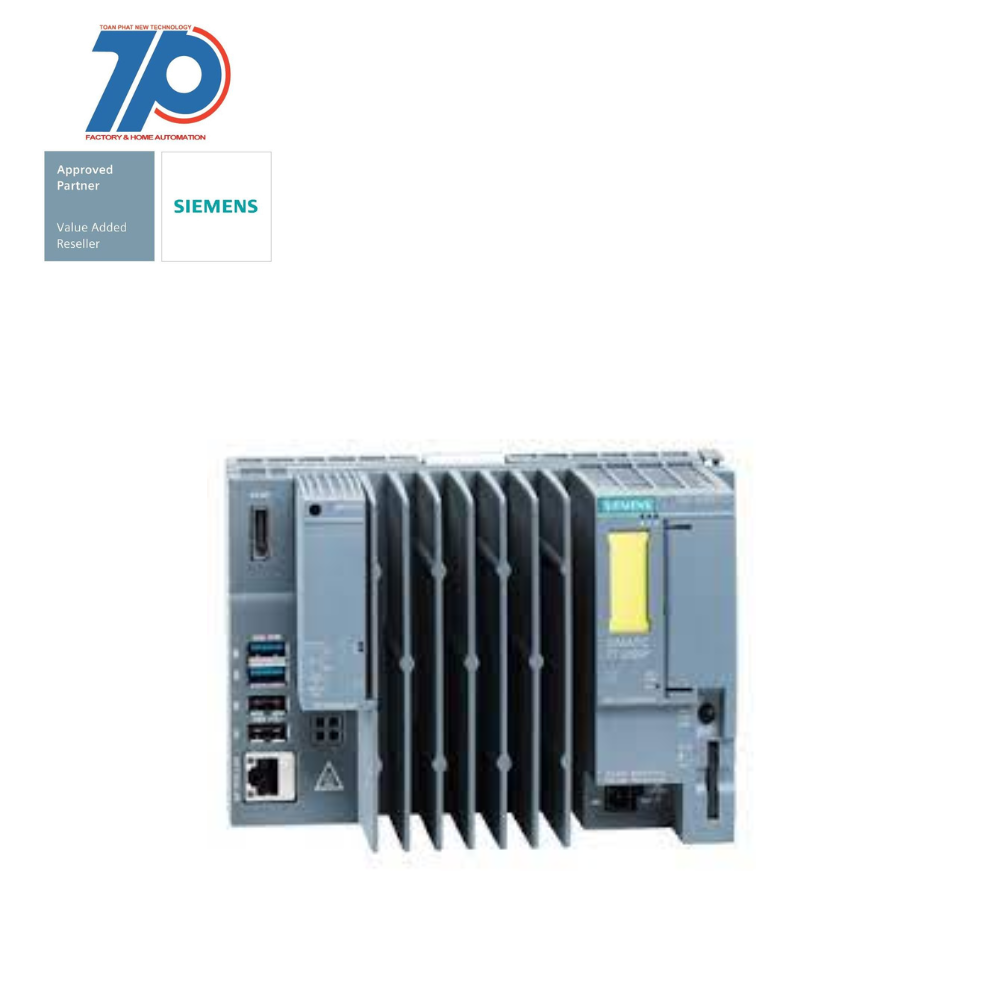

- SIMATIC ET 200SP Open Controller, CPU 1515SP PC2 F + HMI 512PT, 8 GB RAM (basic device 6ES7677-2DB40-0AA0)
- 128 GB CFast with Windows 10 IoT Enterprise LTSC 2019 64-bit
- S7-1500 Failsafe Software Controller CPU 1505SP F V2x and WinCC Runtime Advanced V17 preinstalled, with 512 PowerTags license
- Interfaces: 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet, 2x USB 3.0, 2x USB 2.0, 1x DisplayPort
- Documentation on CFast
- SIMATIC ET 200SP offers a multifunctional and distributed I/O system
- Approved for degree of protection IP20 and for installation in a compact control box
- Multi hot swapping feature for easy module replacement
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF for flexible protocol usage
- Standardized identification system for simplified installation and service
- Future-proof investment with innovative and long-life automation products
- SIMATIC ET 200SP Open Controller combines PC-based software controller, visualization, PC applications, and central I/Os in a single device
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Rack-assembly possible | false |
| Number of interfaces PROFINET | 1 |
| Radio standard WLAN 802.11 | false |
| System accessory | true |
| Radio standard GPRS | false |
| Supporting protocol for LON | false |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for SERCOS | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for CAN | false |
| Height | 117 mm |
| With pluggable modules, analogue I/O | true |
| Supporting protocol for PROFIsafe | true |
| Front built-in possible | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| With pluggable modules, central modules | true |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Suitable for safety functions | true |
| With pluggable modules, digital I/O | true |
| Radio standard Bluetooth | false |
| Appendant operation agent (Ex ia) | false |
| With pluggable modules, communication modules | true |
| Wall mounting/direct mounting | true |
| With optical interface | false |
| Width | 160 mm |
| Supporting protocol for other bus systems | false |
| Fieldbus connection over separate bus coupler possible | true |
| With integrated power supply | true |
| Supporting protocol for EtherNet/IP | false |
| Input voltage DC | 28.8 V |
| Supporting protocol for DeviceNet | false |
| Explosion safety category for dust | None |
| Supporting protocol for Foundation Fieldbus | false |
| Depth | 75 mm |
| Supporting protocol for TCP/IP | true |
| IO link master | false |
| Supporting protocol for Modbus | true |
| Supporting protocol for ASI | false |
| Degree of protection (IP) | IP20 |
| Radio standard UMTS | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for PROFIBUS | true |
| Type of voltage (input voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Radio standard GSM | false |
| Supporting protocol for PROFINET IO | true |
| Number of HW-interfaces industrial Ethernet | 2 |
| Rail mounting possible | true |
| With bus coupler for modular station connection | true |
| Input voltage DC | 19.2 V |
| Max. input current DC | 2.9 A |
| Appendant operation agent (Ex ib) | false |
| With pluggable modules, others | true |
| With pluggable modules, function and technology modules | true |
| Supporting protocol for KNX | false |
| Number of HW-interfaces USB | 4 |
