6ES7677-2SB42-0GM0

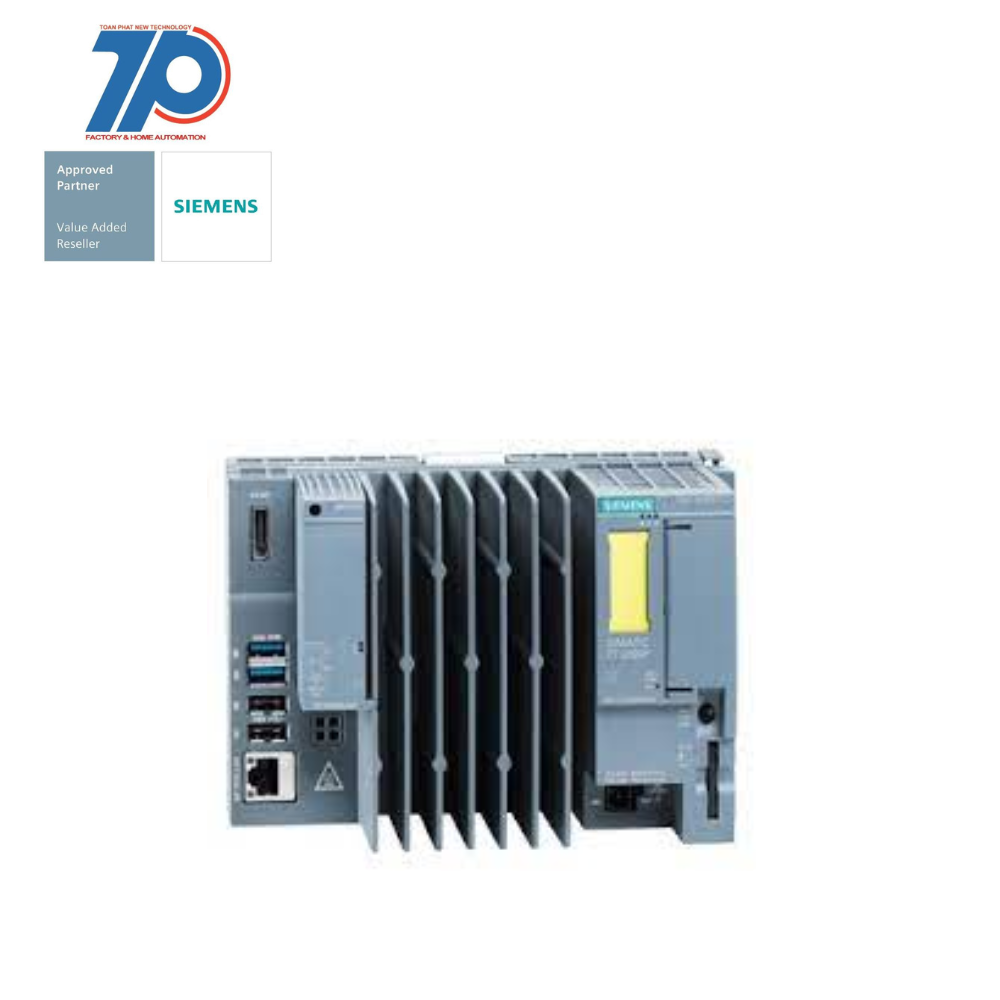

• SIMATIC ET 200SP Open Controller, CPU 1515SP PC2 F + HMI 2048PT, 8 GB RAM (basic device 6ES7677-2DB40-0AA0), 128 GB CFast with Windows 10 IoT Enterprise LTSC 2019 64-bit, S7-1500 Failsafe Software Controller CPU 1505SP F V2x and WinCC Runtime Advanced V17 preinstalled, with 2048 PowerTags license;
• Interfaces: 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet, 2x USB 3.0, 2x USB 2.0, 1x DisplayPort;
• Documentation on CFast;
• With SIMATIC ET 200SP, Siemens offers a multifunctional and distributed I/O system, which can be commissioned very simply due to its space-saving design;
• Approved for degree of protection IP20 and for installation in a compact control box;
• Multi hot swapping feature allows for quick and simple module replacement;
• Wide range of different and fast communication methods;
• Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols;
• Standardized identification system based on equipment labeling plates and color-coded connector assignments simplifies installation and service;
• Future-proof investment due to integration of innovative and long-life automation products;
• Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance of ET 200 products;
• SIMATIC ET 200SP Open Controller combines the functions of a PC-based software controller with visualization, PC applications, and central I/Os (inputs/outputs) in a single, compact device.
