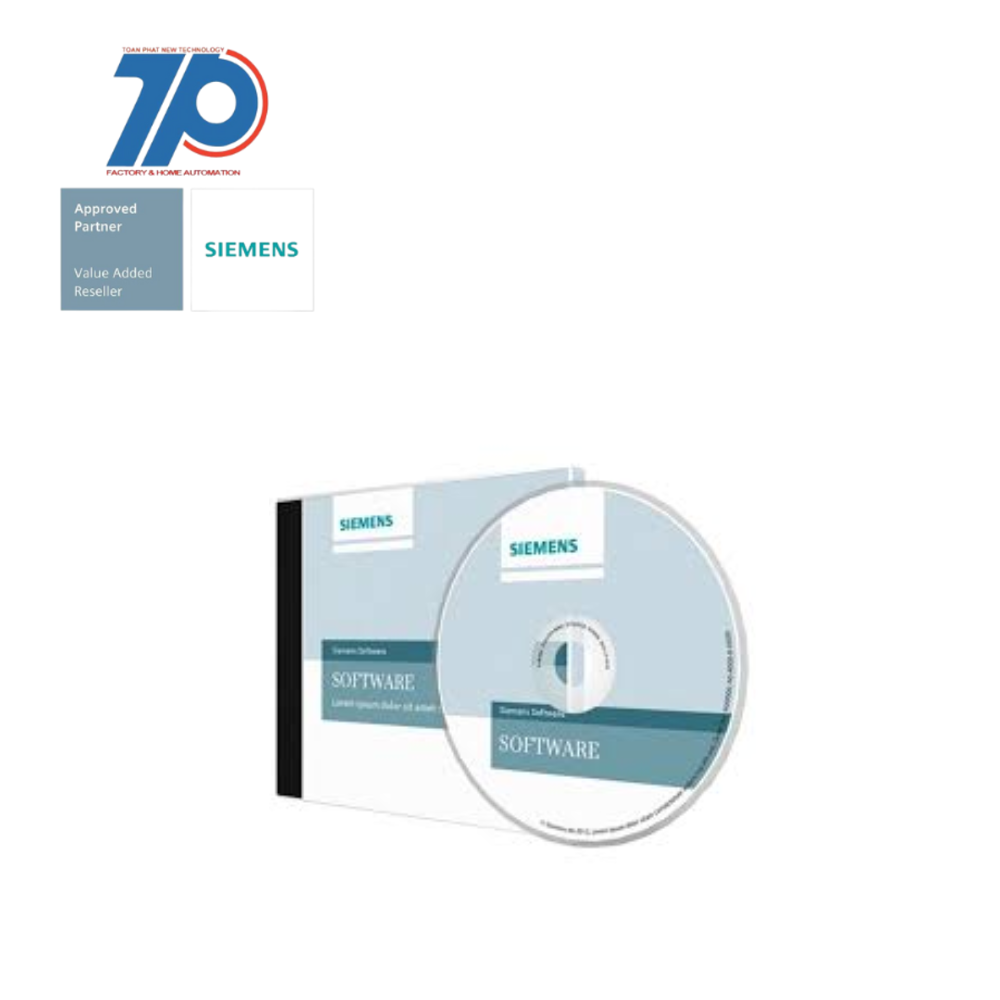

Material ID: 6ES7811-0CC08-0YE5SIMATIC S7, S7-GRAPH V5.7 SP1

SIMATIC S7, S7-GRAPH V5.7 SP1

Technical Features:

Product Description:

SIMATIC S7-GRAPH is a programming software based on STEP 7. It is designed for sequential processes with alternative or parallel step sequences. The software allows for clear and quick configuration and programming using a standardized method of representation (according to IEC 61131-3, EN 61131). The process is graphically described and broken down into inpidual steps with a manageable functional scope. Actions for each step can be defined and controlled, while transitions (transitional conditions) control the flow from one step to the next. Interlock and monitoring conditions can be defined for each step. S7-Graph is already included in STEP 7 Professional (TIA Portal).

Commercial Benefits:

    • Upgrade
    • Floating license for 1 user engineering software
    • Software and documentation on CD
    • License key on USB flash drive
    • Class A
    • 5 languages (de,en,fr,es,it)
    • Compatible with STEP7 V5.7 executable in Windows Server 2016/2019/2022, Windows 10/11 Professional, Windows 10/11 Enterprise
    • Reference hardware: S7-300/400, C7
    • Content: set (1x CD + 1x USB)
    • Efficient configuration and programming of sequential processes
    • Clear and standardized representation of step sequences
    • Quick and easy graphical description of processes
    • Manageable functional scope for each step
    • Controlled execution of defined actions
    • Smooth transitions between steps
    • Flexible interlock and monitoring conditions
    • Compatible with various operating systems and reference hardware
    • Includes software, documentation, and license key for convenient installation
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Put into operation function integratedfalse
With editor for programming language Flowchartfalse
Suitable for operating system Windows MEfalse
Suitable for operating system Windows 2003 Serverfalse
Simulation function integratedfalse
Suitable for operating system Windows NTfalse
With editor for programming language IL (Instruction List)false
Suitable for operating system Linuxfalse
Suitable for other operating systemtrue
According to IEC 1131-3 (DIN EN 61131-3)true
With editor for programming language FBD (Function Block Diagram)false
Suitable for safety functionsfalse
With editor for programming language LD (Ladder Diagram)false
With editor for programming language SFC (Sequential Function Chart)false
With editor for programming language ST (structured text)false
Suitable for operating system Windows 2000false
Suitable for operating system Windows XPfalse
Suitable for operating system Windows 8false
Suitable for operating system Windows CEfalse
Integrated position functionfalse
Integrated evaluation functiontrue
Integrated data detection functiontrue
Integrated application configuration functiontrue
With editor for manufacturer specific programming languagetrue
Integrated analysis functiontrue
Integrated diagnosis functiontrue
Integrated communication functiontrue
Integrated motion functionfalse
Suitable for operating system Windows Vistafalse
Maintenance function integratedfalse
Integrated configuration functiontrue
Suitable for operating system Windows 7false
Technology function integratedfalse
Suitable for operating system Windows 9xfalse
