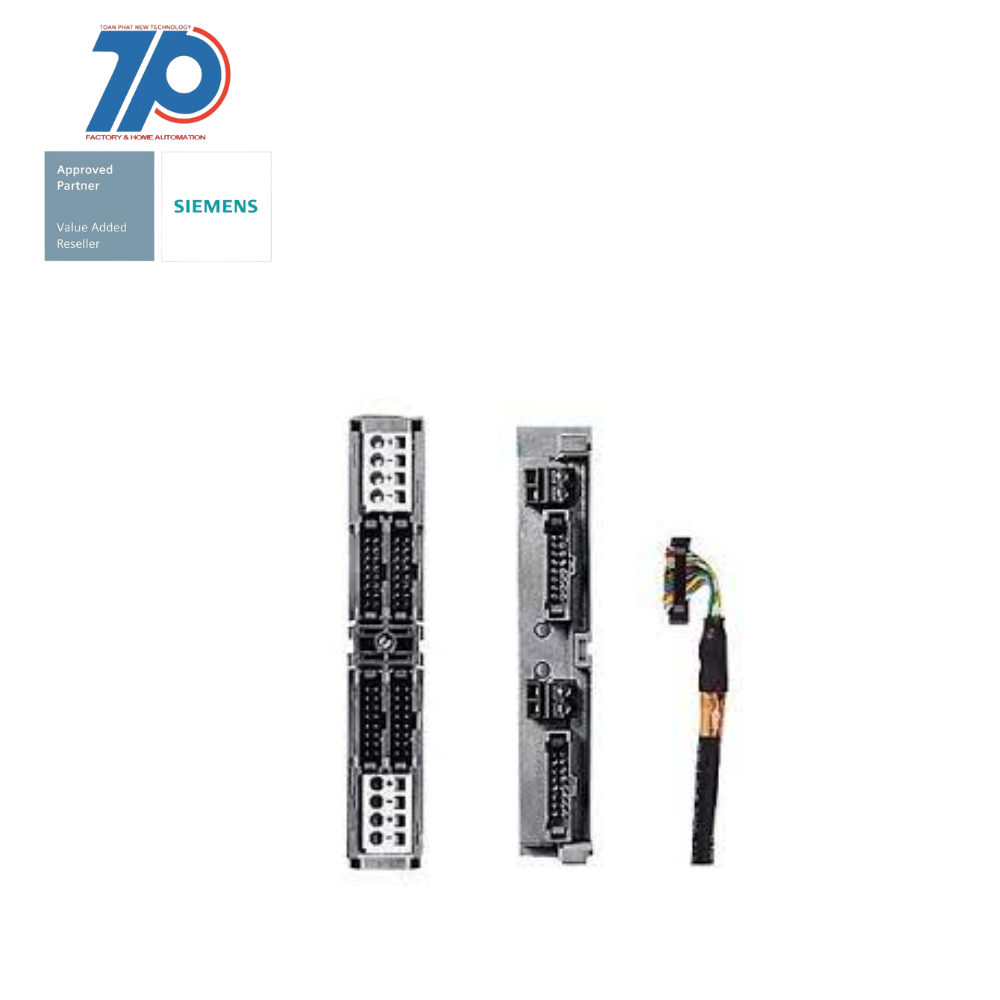

Material ID: 6ES7921-3AA00-0AA0

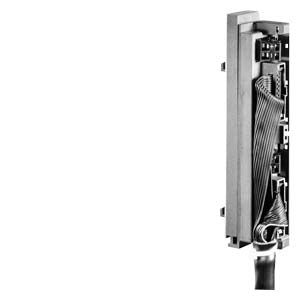

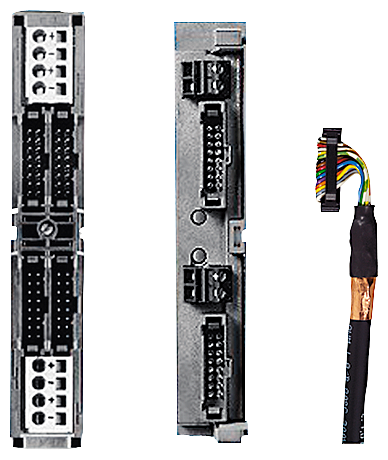

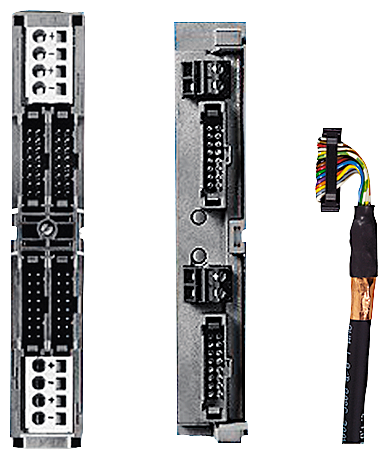

- Front connector module with flat ribbon Cable connection for digital 16 I/O modules of the S7-300
- Power supply over Spring terminals
- The front connector module for SIMATIC S7-300 with spring terminals for potential feed to connect 2x16-pole cables represents a modified front connector for connection to a digital I/O module.
- This is plugged into the module to be wired instead of the front connector.
- Here the cables are plugged in and connected to the connection module.
- This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling.
- In addition to low wiring costs, error sources in cabling can be significantly reduced.

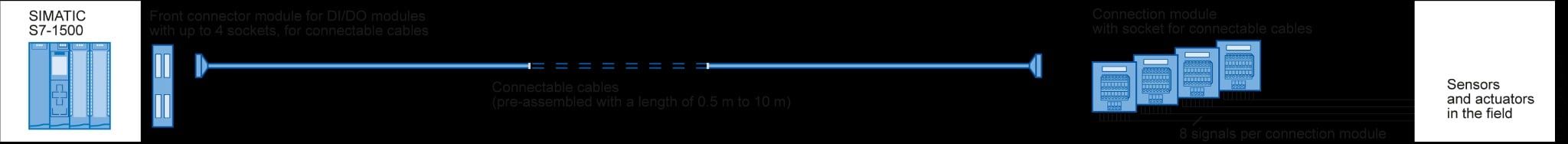

- Sensors and actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect and linked to the SIMATIC S7-300 via connecting cable and front plug-in module.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Connectable conductor cross section multi-wired | 1.5 mm² |
| Rated current In | 1 A |
| Operating temperature | 0 °C |
| Material insulation body | Other |
| Closing plate required | false |
| Transparent | false |
| Number of poles | 20 |
| Connectable conductor cross section fine-strand without cable end sleeve | 1.5 mm² |
| Rated voltage | 60 V |
| Explosion-tested version 'Ex e' | false |
| Type of electrical connection 1 | Plug-in connection |
| Colour | Black |
| Operating temperature | 60 °C |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 1.5 mm² |
| Connectable conductor cross section multi-wired | 0.25 mm² |
| Mounting method | Direct mounting |
