6ES7921-3AG00-0AA0
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)

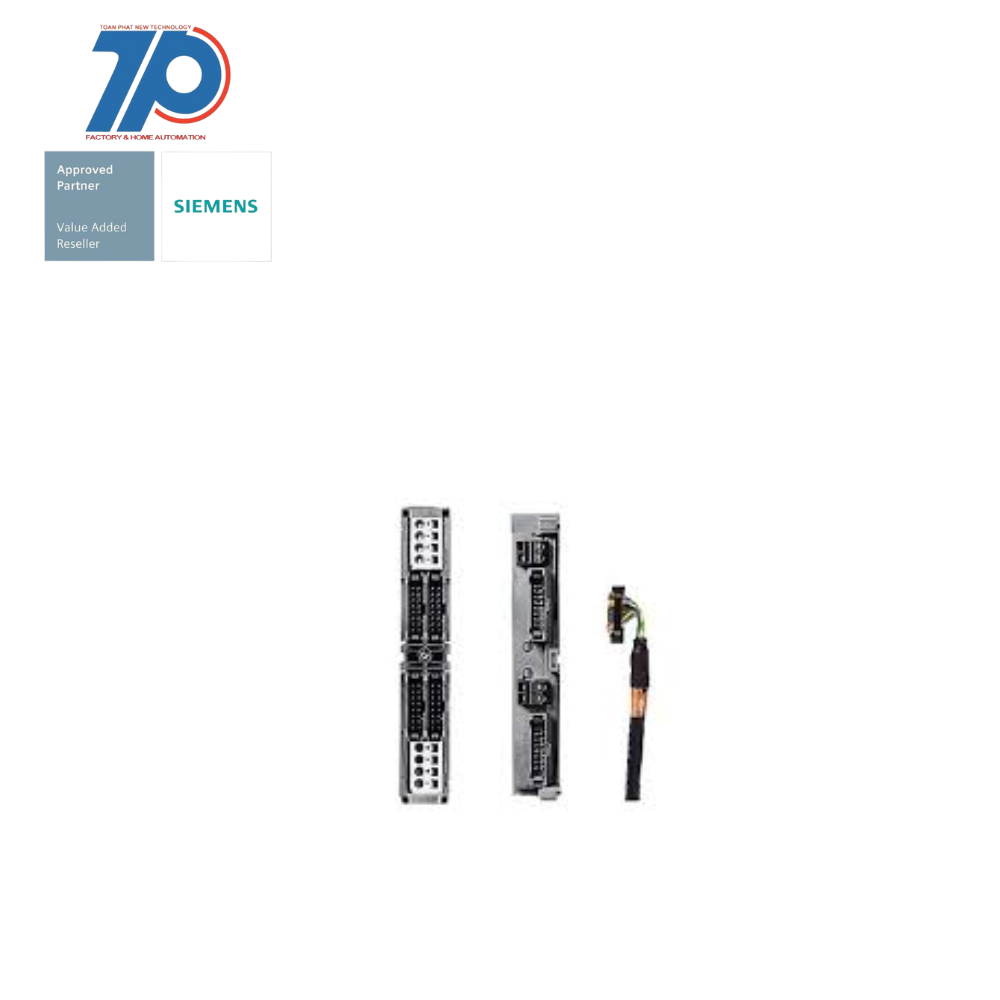

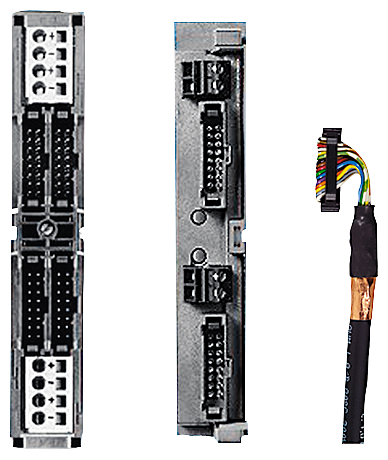

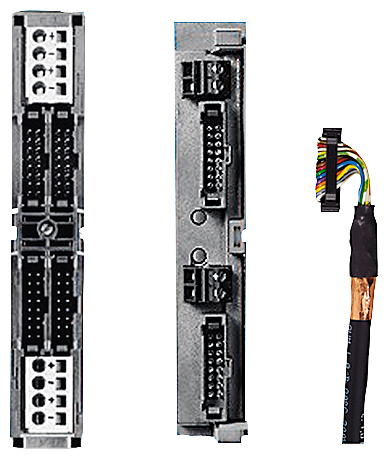

Material ID: 6ES7921-3AG00-0AA0
- Spare part: front connector module with flat ribbon cable connection for analog modules of the S7-300
- Power supply over screw terminals
- Modified front connector module for potential feed
- Connect 2x16-pole cables
- Plugged into the module to be wired instead of the front connector
- Cables are plugged in and connected to the connection module
- Part of the fully modular connection of SIMATIC TOP connect
- Fastest and safest system cabling
- Reduces wiring costs
- Significantly reduces error sources in cabling

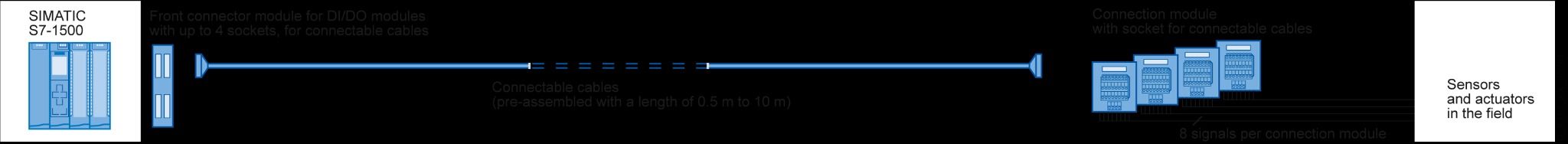

- Sensors and actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect
- Linked to the SIMATIC S7-300 via connecting cable and front plug-in module
Additional Information
Support
|
Technical Data
|
Manuals / Links
|
Thông số kỹ thuật
| FEATURE | VALUE |
| Rated voltage | 60 V |
| Operating temperature | 60 °C |
| Closing plate required | false |
| Connectable conductor cross section multi-wired | 0.25 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25 mm² |
| Connectable conductor cross section multi-wired | 1.5 mm² |
| Number of poles | 20 |
| Colour | Black |
| Connectable conductor cross section fine-strand with cable end sleeve | 1.5 mm² |
| Rated current In | 1 A |
| Operating temperature | 0 °C |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 1.5 mm² |
| Transparent | false |
| Explosion-tested version 'Ex e' | false |
