Material ID: 6ES7921-5CB20-0AA0

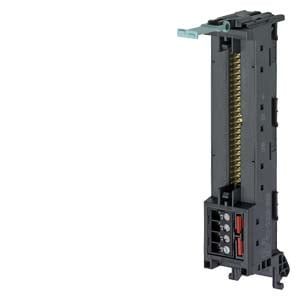

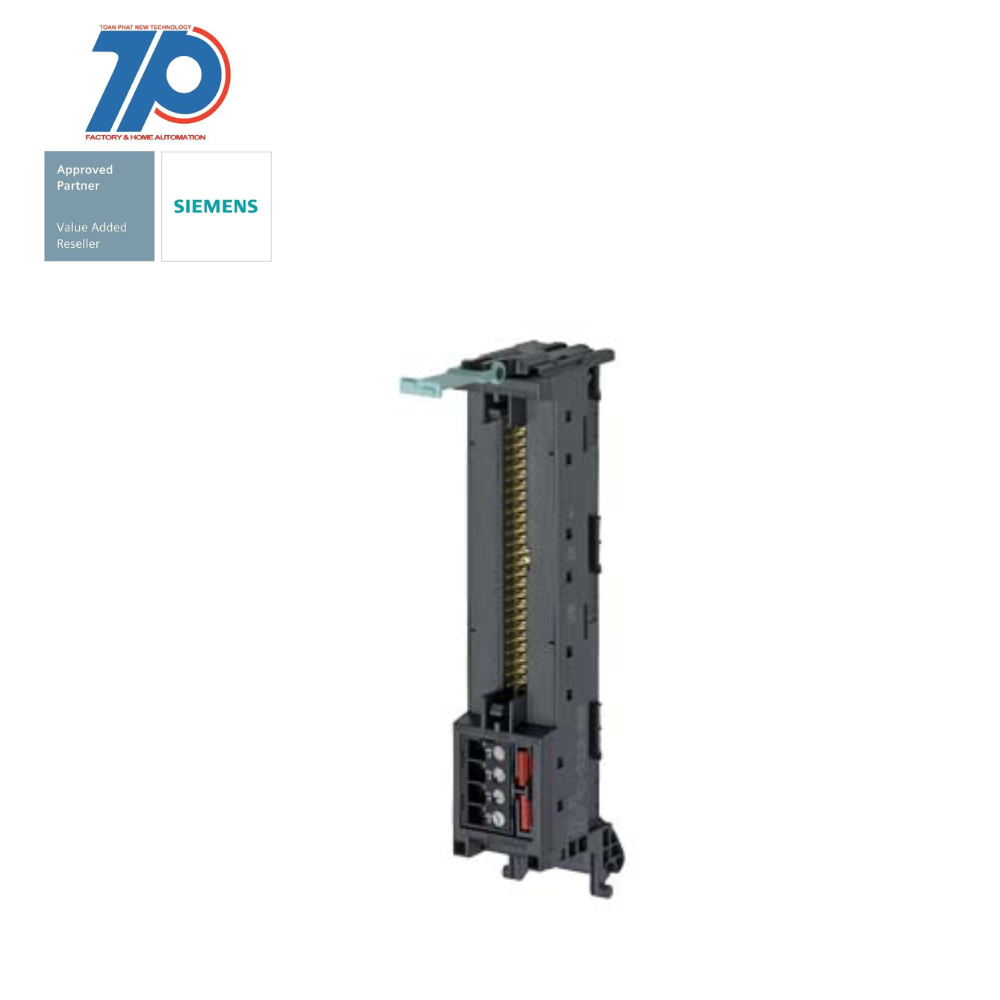

- Front connector module with 1x50 pole IDC connector for digital 32 I/O modules of the S7-1500

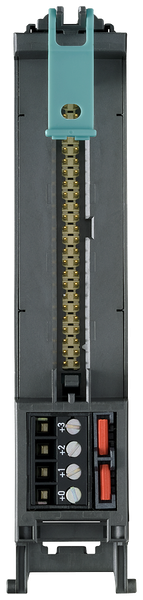

- Potential supply over Screw terminals
- The front connector module for SIMATIC S7-1500 with screw terminals for potential feed to connect 50-pole cables represents a modified front connector for connection to a digital I/O module.

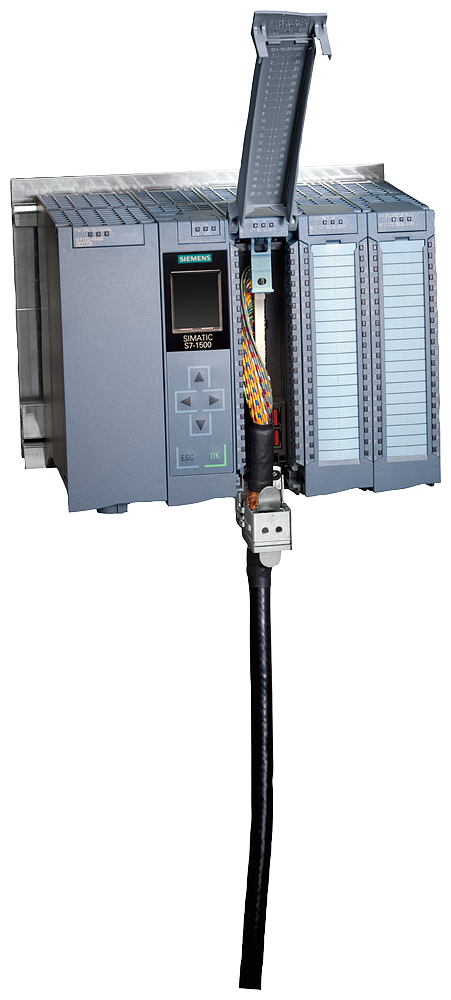

- This is plugged into the module to be wired instead of the front connector.
- Here the cables are plugged in and connected to the connection module.

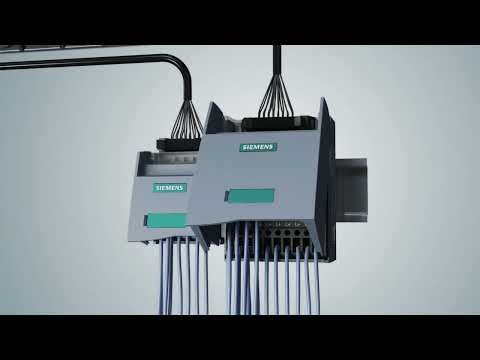

- This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling.
- In addition to low wiring costs, error sources in cabling can be significantly reduced.

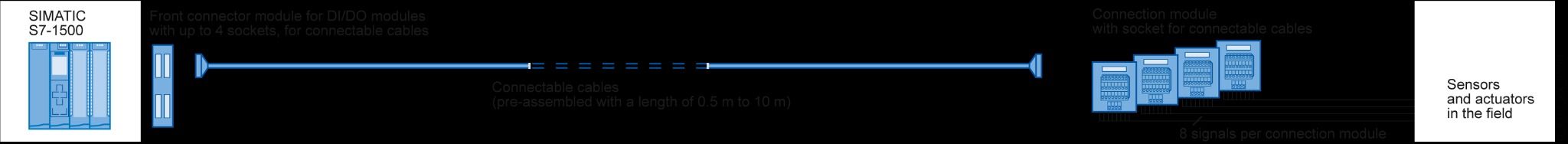

- Sensors and actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect and linked to the SIMATIC S7-300 via connecting cable and front plug-in module.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 2.5 mm² |
| Connectable conductor cross section multi-wired | 2.5 mm² |
| Closing plate required | false |
| Connectable conductor cross section multi-wired | 0.5 mm² |
| Rated voltage | 24 V |
| Material insulation body | Other |
| Type of electrical connection 1 | Plug-in connection |
| Connectable conductor cross section fine-strand with cable end sleeve | 1.5 mm² |
| Colour | Black |
| Operating temperature | 60 °C |
| Transparent | false |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5 mm² |
| Number of poles | 40 |
| Explosion-tested version 'Ex e' | false |
| Mounting method | Direct mounting |
| Operating temperature | 0 °C |
