6ES7922-3BD20-0AF0
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
Material ID: 6ES7922-3BD20-0AF0

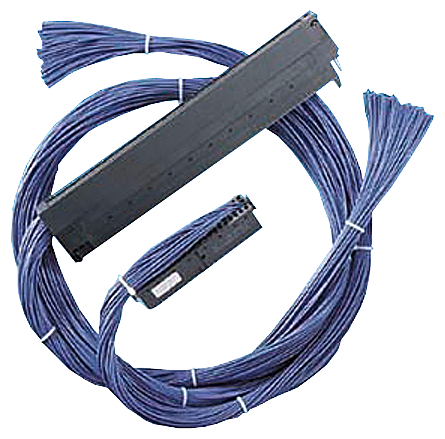

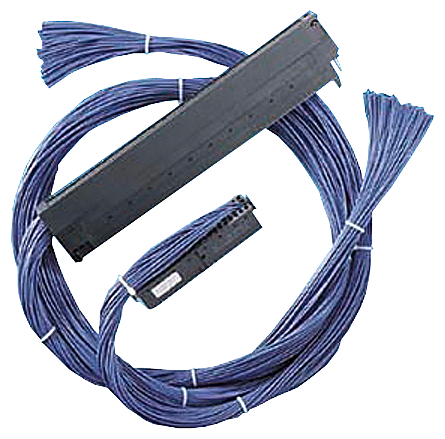

- Front connector for SIMATIC S7-300 20 pole (6ES7921-3AH00-0AA0) with 20 single cores 0.5 mm2
- Single cores H05V-K
- Crimp version VPE=1 unit L = 3.2 m

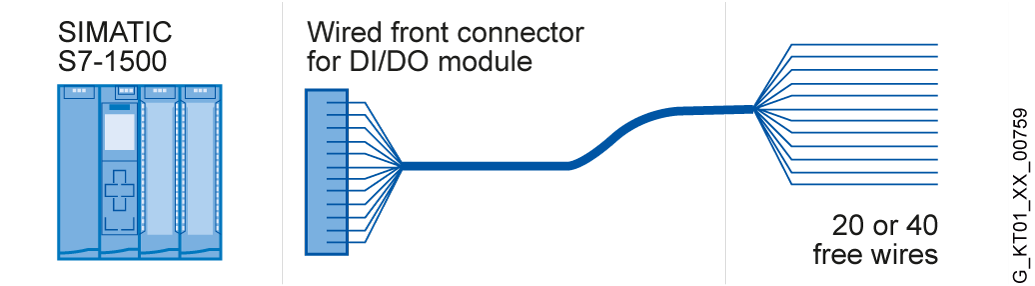

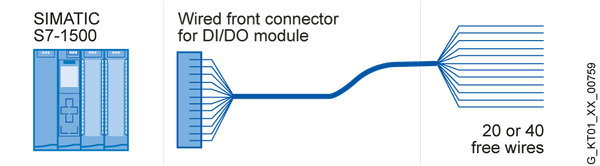

- The pre-assembled 20-pole front connector with 20 single wires of type H05V-K, conductor cross-section 0.5qmm, with a length of 3.2m in spring-loaded version is intended for connection to a digital I/O module of the SIMATIC S7-300.
- This is plugged onto the module to be wired instead of the front connector.
- This allows the signals of the digital I/O module to be easily connected to the elements to be wired via the numbered inpidual wires.
- This front connector with single wires is part of the flexible connection of SIMATIC TOP connect for the fastest and safest system cabling.
- In addition to a 50% lower wiring effort, sources of errors in cabling can be significantly reduced.
Additional Information
Support
|
Technical Data
|
Manuals / Links
|
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of poles | 20 |
| Suitable for output card PLC | true |
| Suitable for analogue signals | false |
| Suitable for digital signals | true |
| Suitable for input board PLC | true |
| Type of electrical connection, field-sided | Other |
| Type of electrical connection, box-sided | Other |
| Length | 3.2 m |
