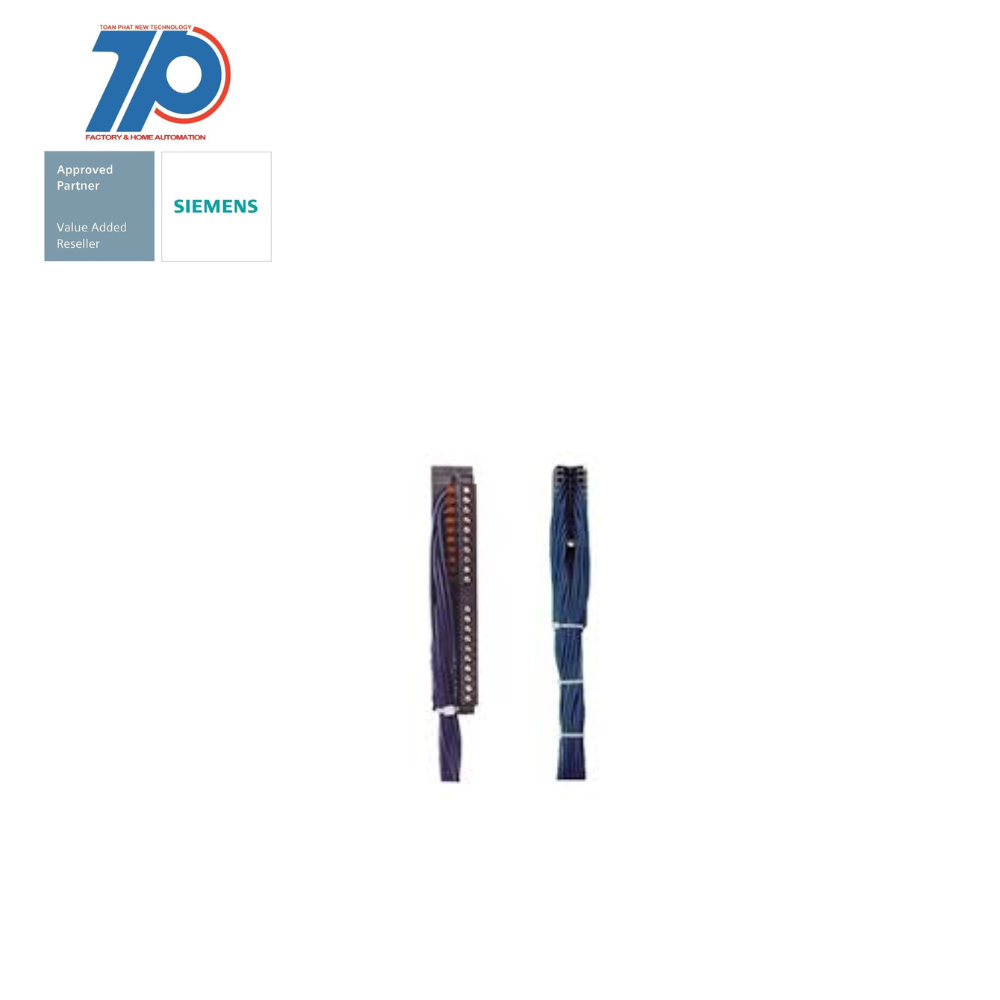

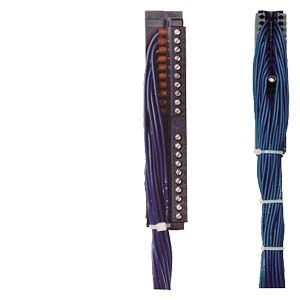

Front connector for SIMATIC S7-300 20 pole (6ES7392-1AJ00-0AA0) with 20 single cores 0.5 mm2
Single cores H05V-K
Screw version VPE=1 unit L = 5.0 m

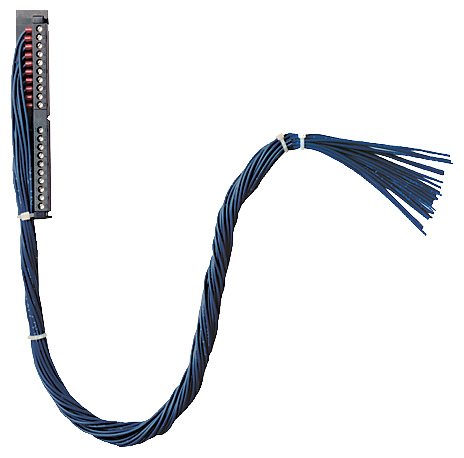

The pre-assembled 20-pole front connector with 20 single wires of type H05V-K, conductor cross-section 0.5qmm, with a length of 5,0m in screw version is intended for connection to a digital I/O module of the SIMATIC S7-300.
This is plugged onto the module to be wired instead of the front connector.

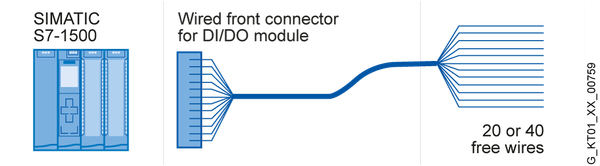

This allows the signals of the digital I/O module to be easily connected to the elements to be wired via the numbered inpidual wires.
This front connector with single wires is part of the flexible connection of SIMATIC TOP connect for the fastest and safest system cabling.
In addition to a 50% lower wiring effort, sources of errors in cabling can be significantly reduced.
