6ES7922-5BD20-0AC0

• Front connector for SIMATIC S7-1500 40 pole (6ES7592-1AM00-0XB0)
• 40 single cores 0.5 mm2 Core type H05V-K
• Screw version L = 3.2 m

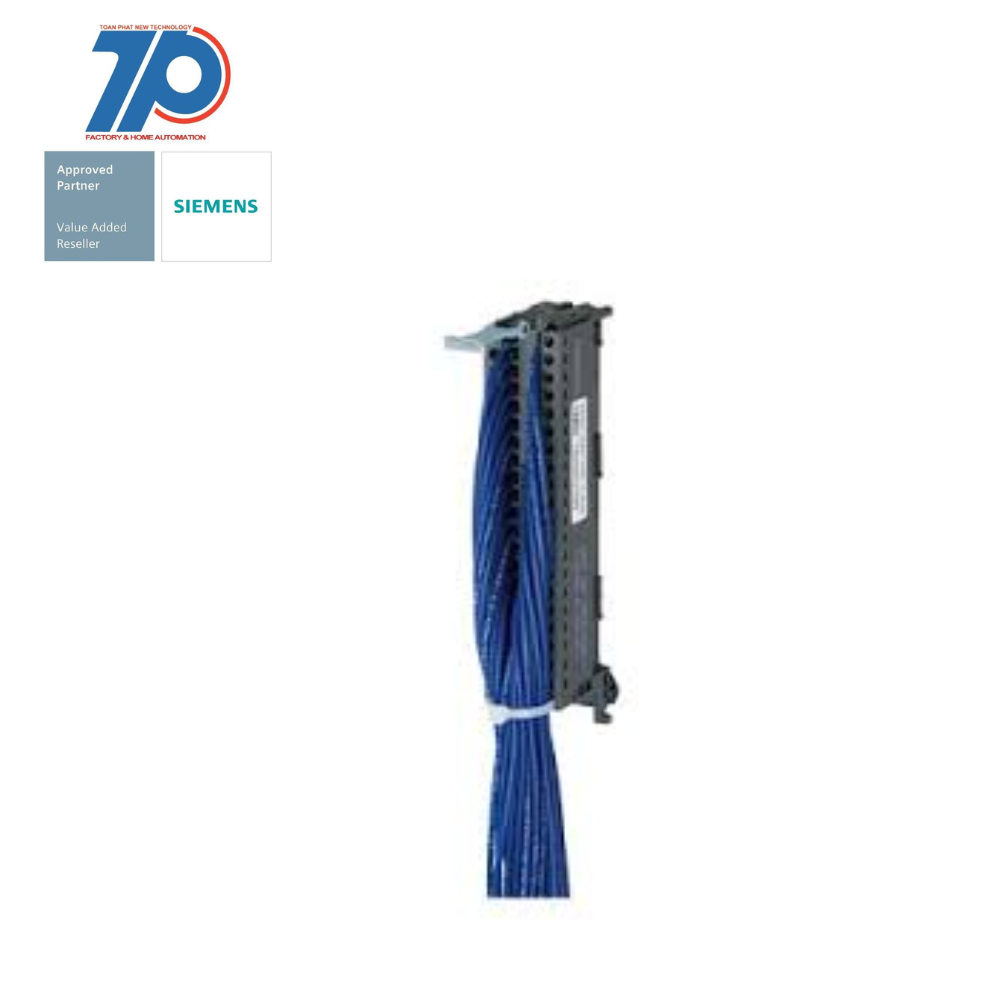

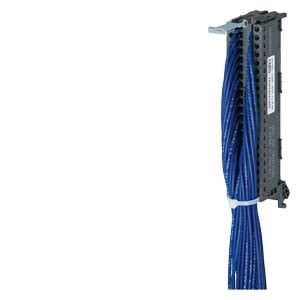

• Pre-assembled 40-pole front connector with 40 single wires of type H05V-K, conductor cross-section 0.5qmm, with a length of 3.2m in screw version
• Intended for connection to a digital I/O module of the SIMATIC S7-1500
• Plugged onto the module to be wired instead of the front connector

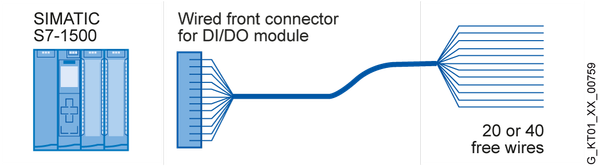

• Allows easy connection of signals from the digital I/O module to the elements to be wired via the numbered inpidual wires

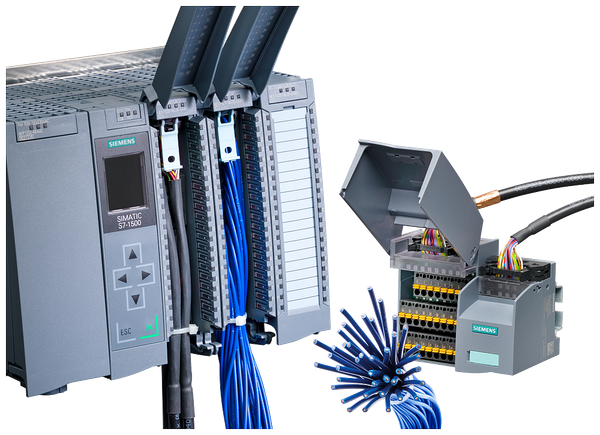

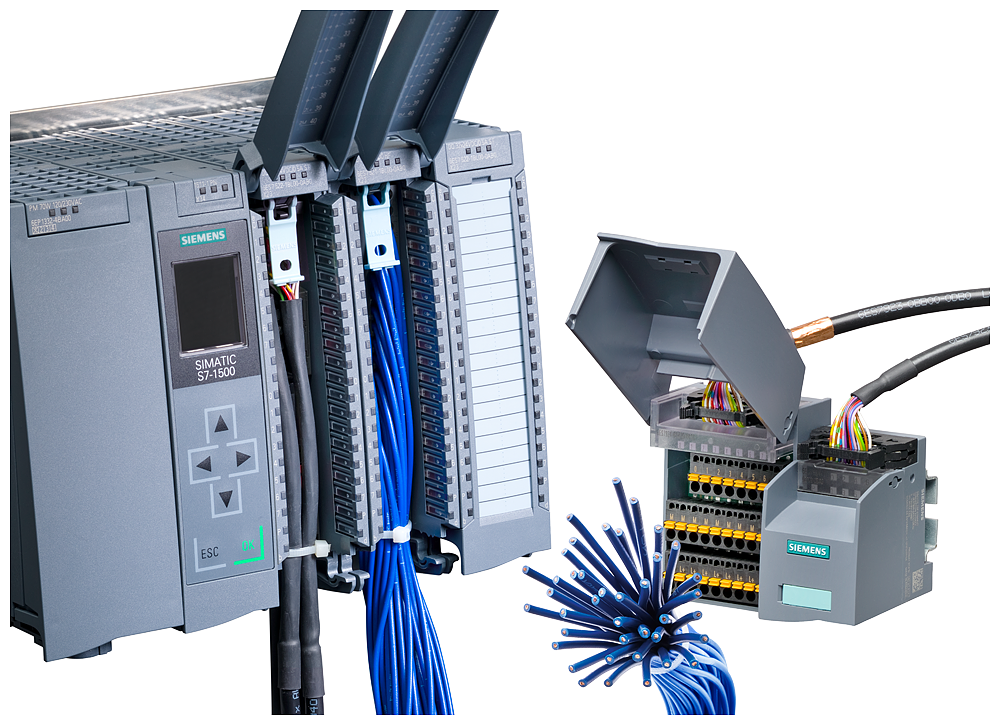

• Part of the flexible connection of SIMATIC TOP connect for the fastest and safest system cabling
• Reduces wiring effort by 50% and significantly reduces sources of errors in cabling
