Material ID: 6ES7922-5BD20-0UB0

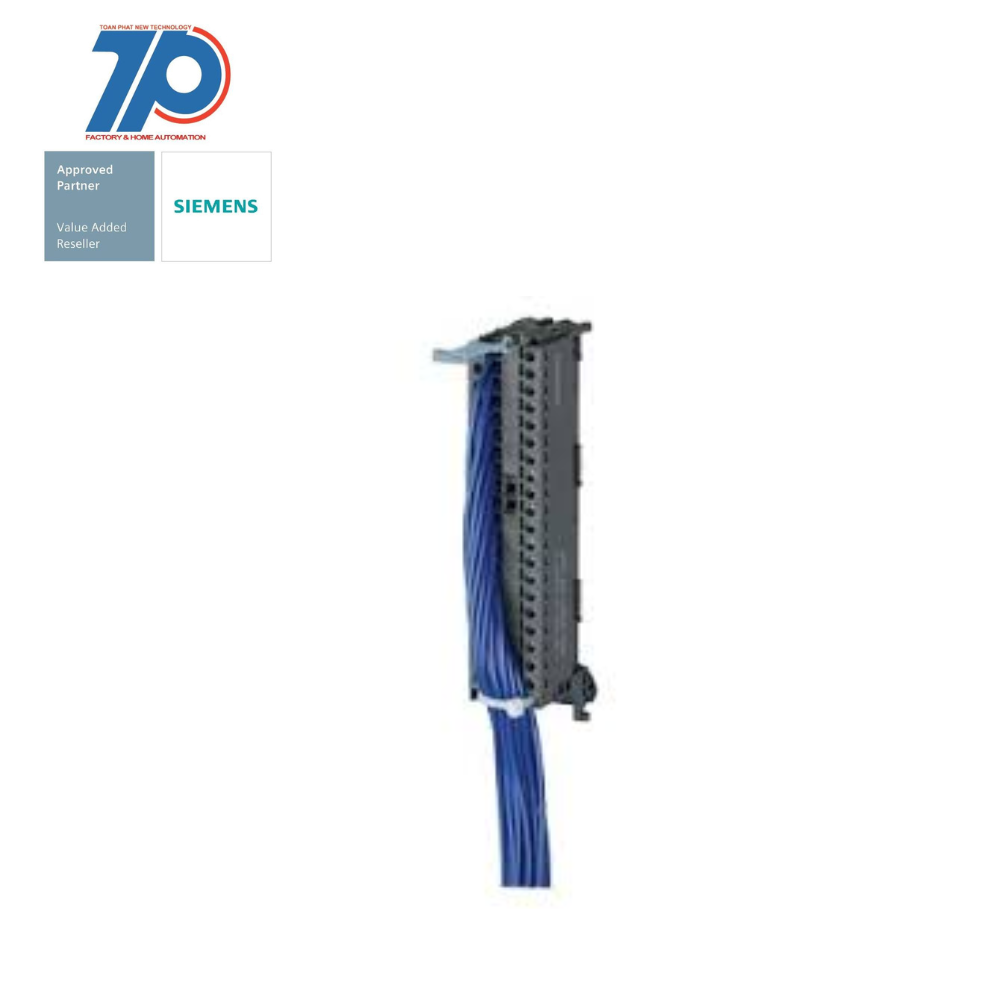

- Front connector for SIMATIC S7-1500 40 pole (6ES7592-1AM00-0XB0)
- 20 single cores 0.5 mm2 (1-20)
- Core type UL/SCA certified
- Screw version
- L = 3.2 m
The pre-assembled 40-pole front connector with 20 single UL/CSA type wires, conductor cross-section 0.5qmm, with a length of 3.2m in screw version is intended for connection to a digital I/O module of the SIMATIC S7-1500. This is plugged onto the module to be wired instead of the front connector. This allows the signals of the digital I/O module to be easily connected to the elements to be wired via the numbered inpidual wires.
This front connector with single wires is part of the flexible connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to a 50% lower wiring effort, sources of errors in cabling can be significantly reduced.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Length | 3.2 m |
| Suitable for digital signals | true |
| Type of electrical connection, box-sided | Screw connection |
| Type of electrical connection, field-sided | Other |
| Number of poles | 40 |
| Suitable for input board PLC | true |
| Suitable for analogue signals | false |
| Suitable for output card PLC | true |
