Material ID: 6ES7922-5BJ00-0AC0

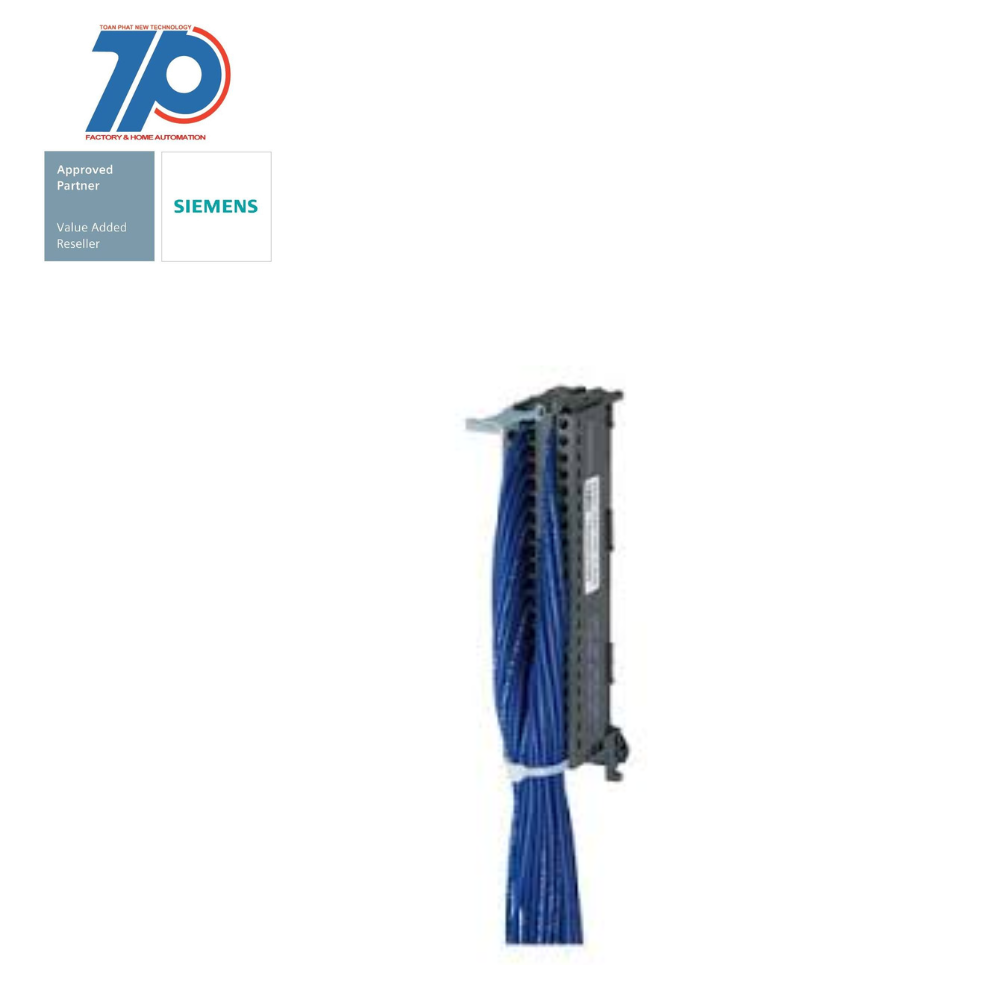

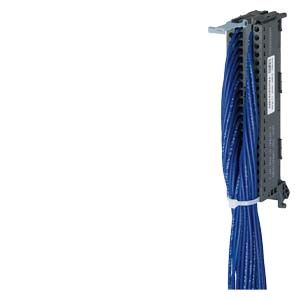

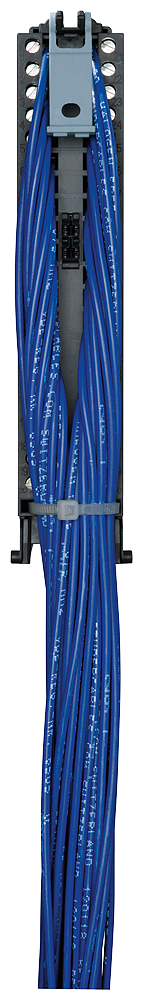

- Front connector for SIMATIC S7-1500 40 pole (6ES7592-1AM00-0XB0)
- 40 single cores 0.5 mm2 Core type H05V-K
- Screw version L = 8.0 m

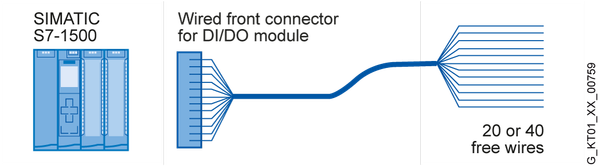

- The pre-assembled 40-pole front connector with 40 single wires of type H05V-K, conductor cross-section 0.5qmm, with a length of 8.0m in screw version is intended for connection to a digital I/O module of the SIMATIC S7-1500.
- This is plugged onto the module to be wired instead of the front connector.

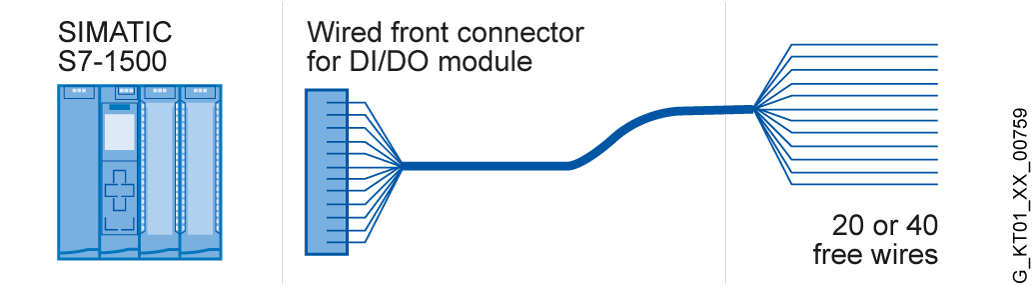

- This allows the signals of the digital I/O module to be easily connected to the elements to be wired via the numbered inpidual wires.

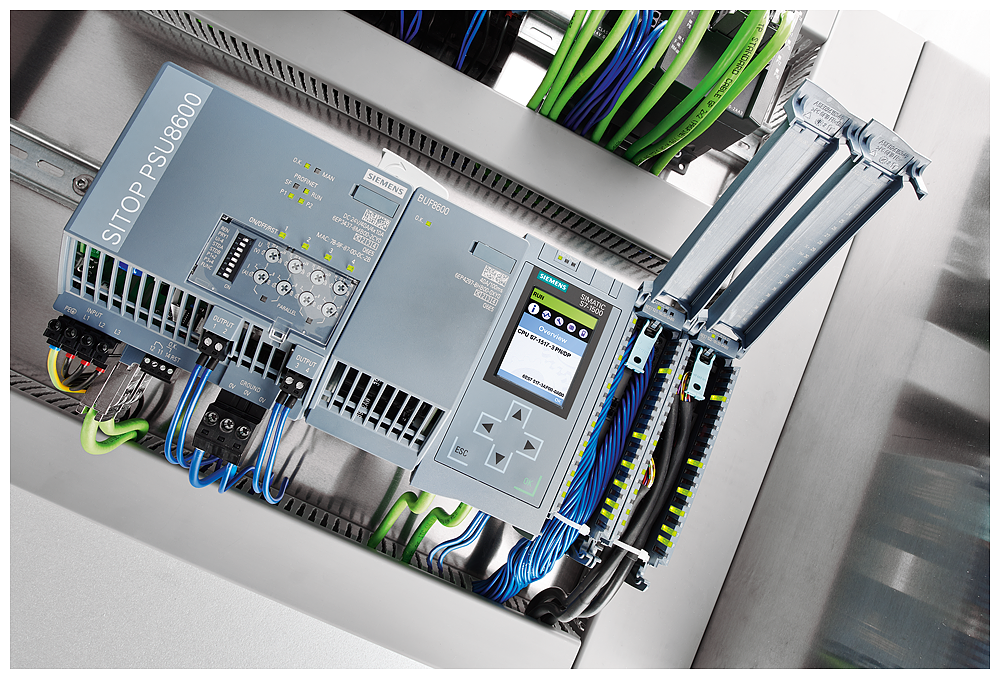

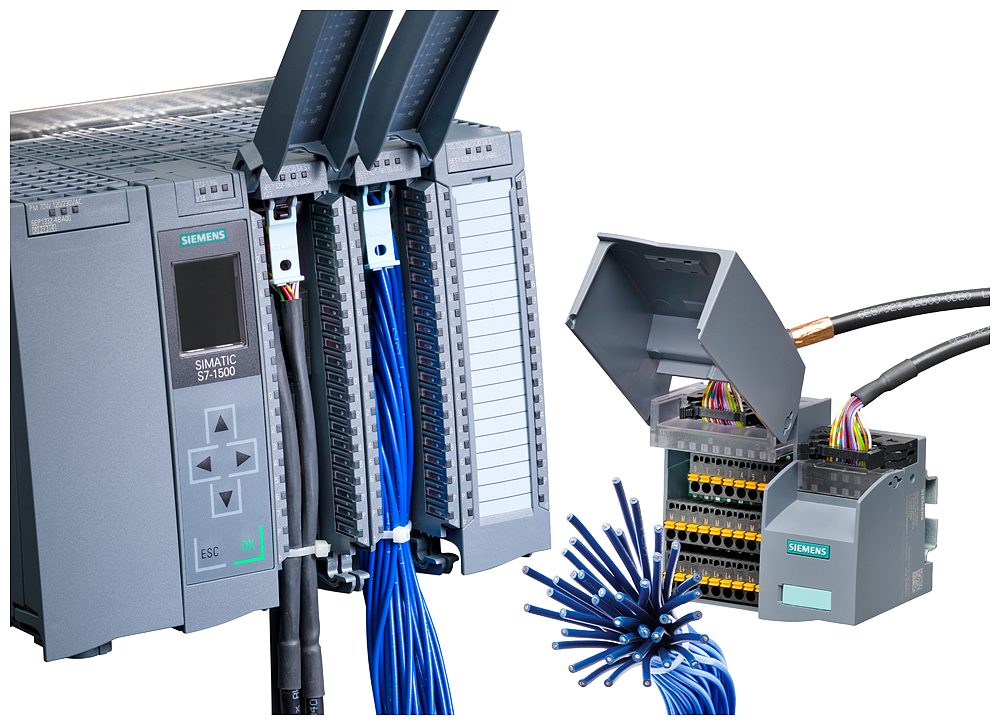

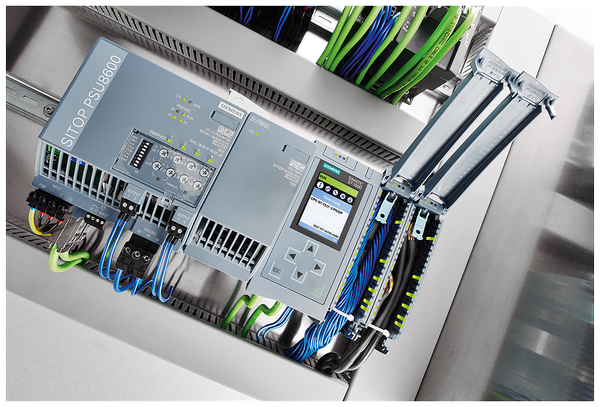

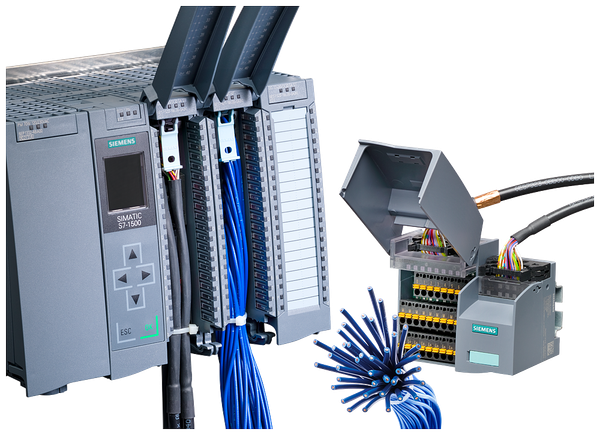

- This front connector with single wires is part of the flexible connection of SIMATIC TOP connect for the fastest and safest system cabling.
- In addition to a 50% lower wiring effort, sources of errors in cabling can be significantly reduced.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Suitable for analogue signals | false |
| Suitable for output card PLC | true |
| Type of electrical connection, box-sided | Screw connection |
| Suitable for digital signals | true |
| Suitable for input board PLC | true |
| Number of poles | 40 |
| Length | 8 m |
| Type of electrical connection, field-sided | Other |
