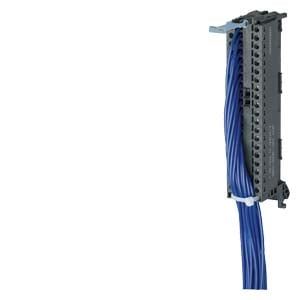

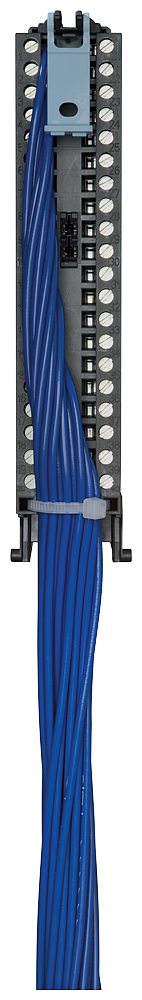

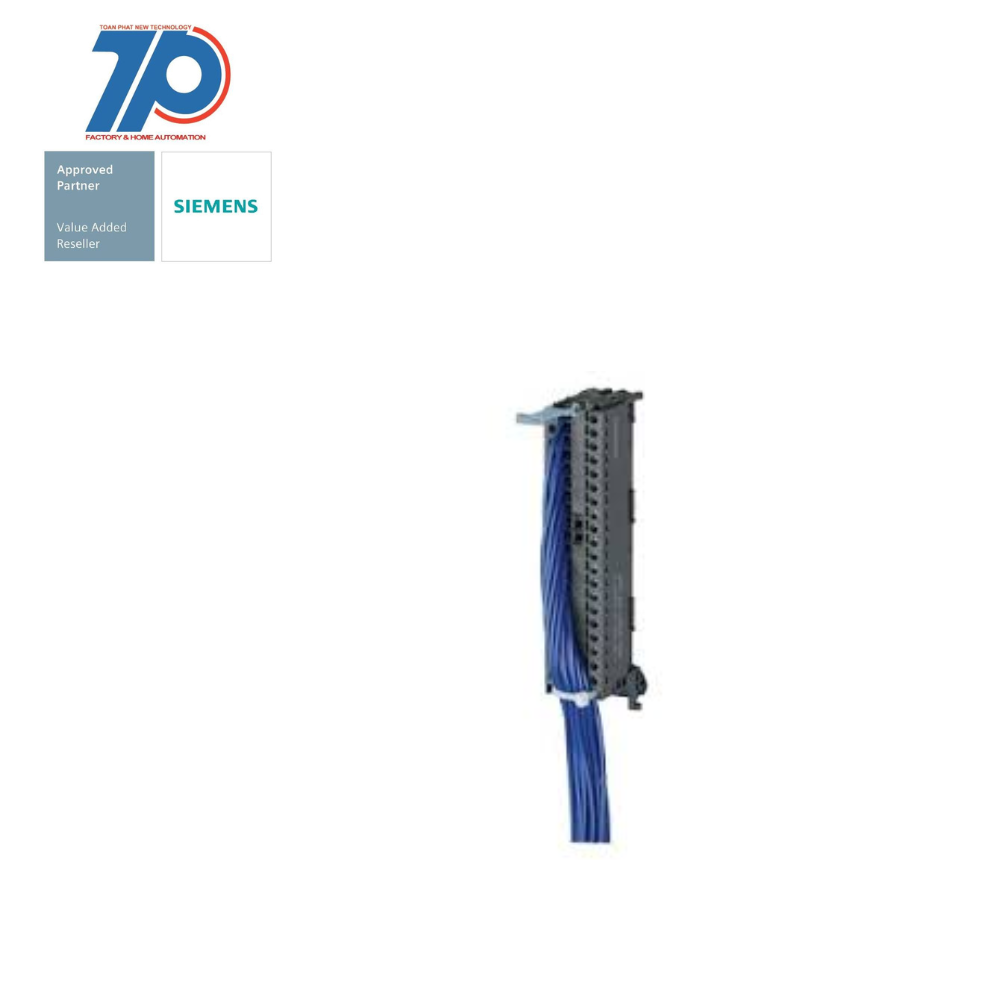

Material ID: 6ES7922-5BJ00-0HB0
- Front connector for SIMATIC S7-1500 40 pole (6ES7592-1AM00-0XB0)
- 20 single cores 0.5 mm2 (1-20)
- Core type H05Z-K (halogen-free)
- Screw version L = 8.0 m

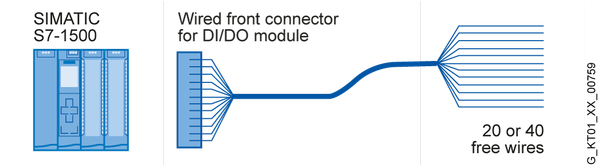

- Pre-assembled 40-pole front connector with 20 single wires
- Halogen-free, conductor cross-section 0.5qmm
- Length of 8.0m in screw version

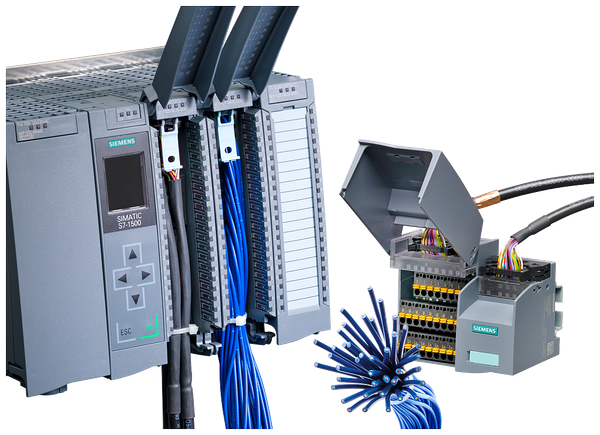

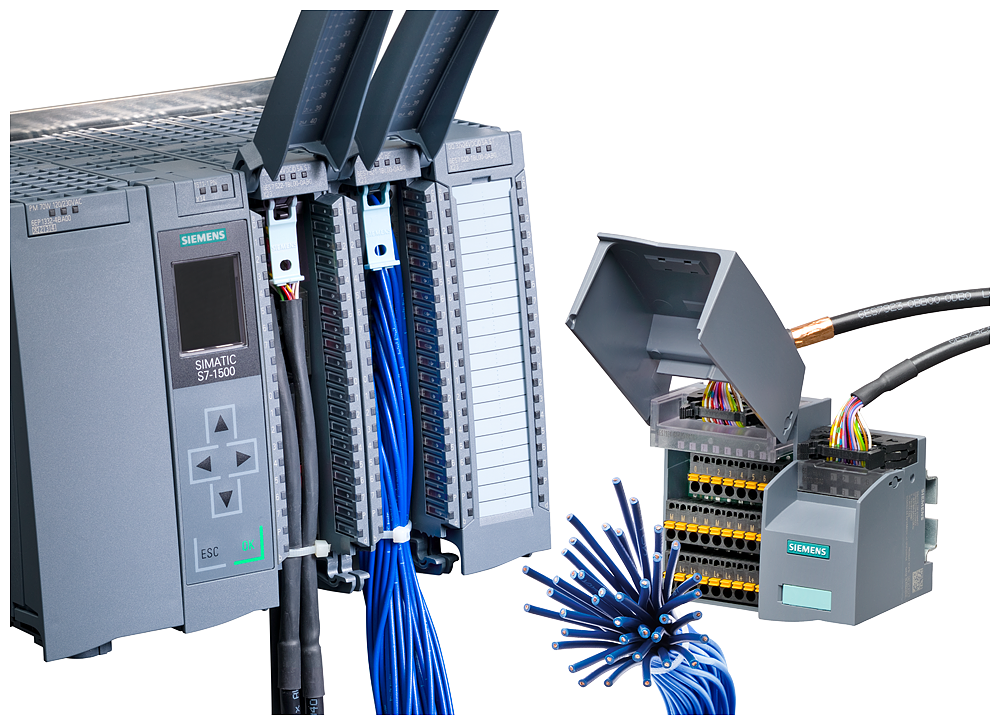

- Intended for connection to a digital I/O module of the SIMATIC S7-1500
- Plugged onto the module to be wired instead of the front connector
- Allows easy connection of signals to elements via numbered inpidual wires
- Part of the flexible connection of SIMATIC TOP connect
- Enables fastest and safest system cabling
- Reduces wiring effort by 50%
- Significantly reduces sources of errors in cabling
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Type of electrical connection, field-sided | Other |
| Length | 8 m |
| Suitable for digital signals | true |
| Suitable for output card PLC | true |
| Type of electrical connection, box-sided | Screw connection |
| Suitable for analogue signals | false |
| Suitable for input board PLC | true |
| Number of poles | 40 |
| Type of electrical connection, field-sided | Other |
| Suitable for output card PLC | true |
| Suitable for analogue signals | false |
| Length | 8 m |
| Type of electrical connection, box-sided | Screw connection |
| Suitable for input board PLC | true |
| Number of poles | 40 |
| Suitable for digital signals | true |
