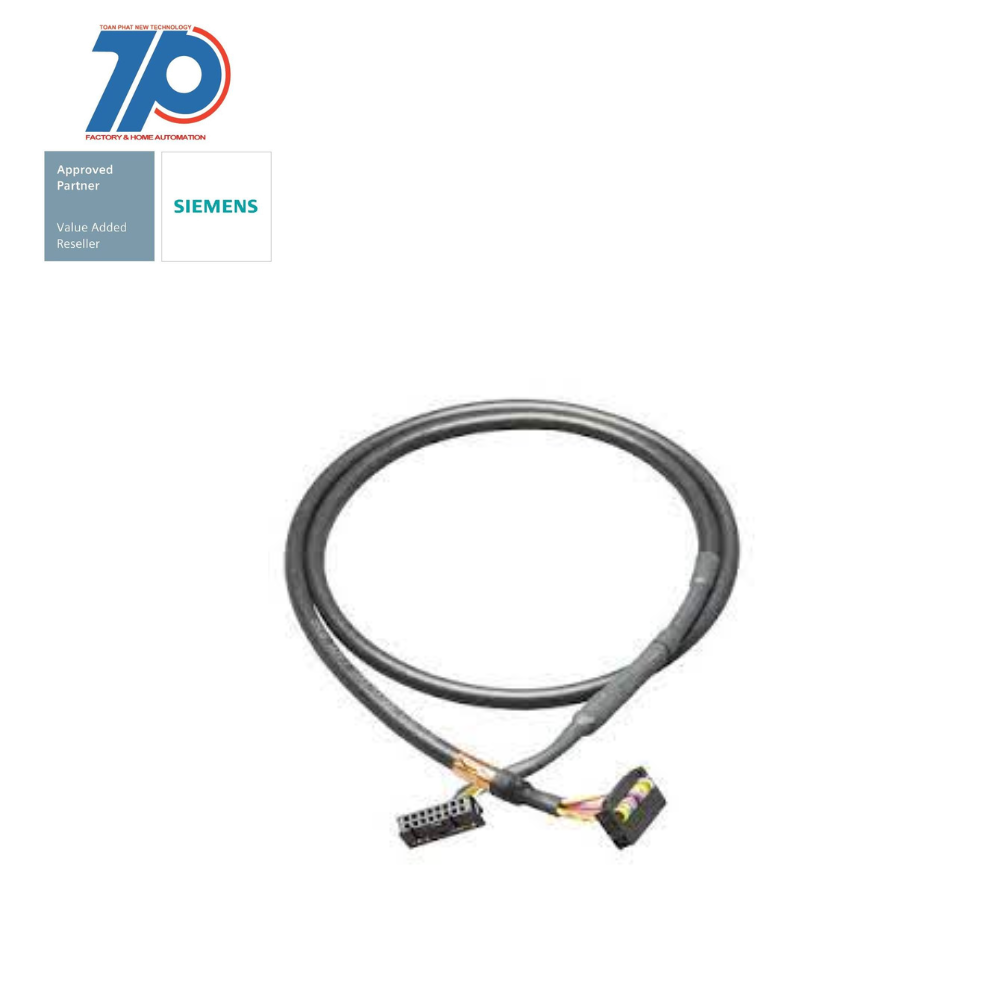

Material ID: 6ES7923-0CB00-0DB0
- Connecting cable shielded for SIMATIC S7-300/1500 between front connector module and Connection module
- 16x0.14 mm2 with IDC connectors
- Length = 10.0 m
- The 16-pin round cable (shielded) with a length of 10m represents the link between the front connector and connection module.
- This pre-assembled cable enables a trouble-free and safe signal flow.
- Even complex installations remain manageable and can be checked in the shortest possible time, which makes maintenance and expansion affordable.
- This pre-assembled connecting cable is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling.
- In addition to low wiring costs, error sources in cabling can be significantly reduced.
- Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-1500 via cable and front plug-in module.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Length | 10 m |
| Suitable for analogue signals | true |
| Type of electrical connection, box-sided | Connection plug board |
| Suitable for digital signals | true |
| Type of electrical connection, field-sided | Connection plug board |
| Suitable for input board PLC | true |
| Suitable for output card PLC | true |
| Number of poles | 16 |
