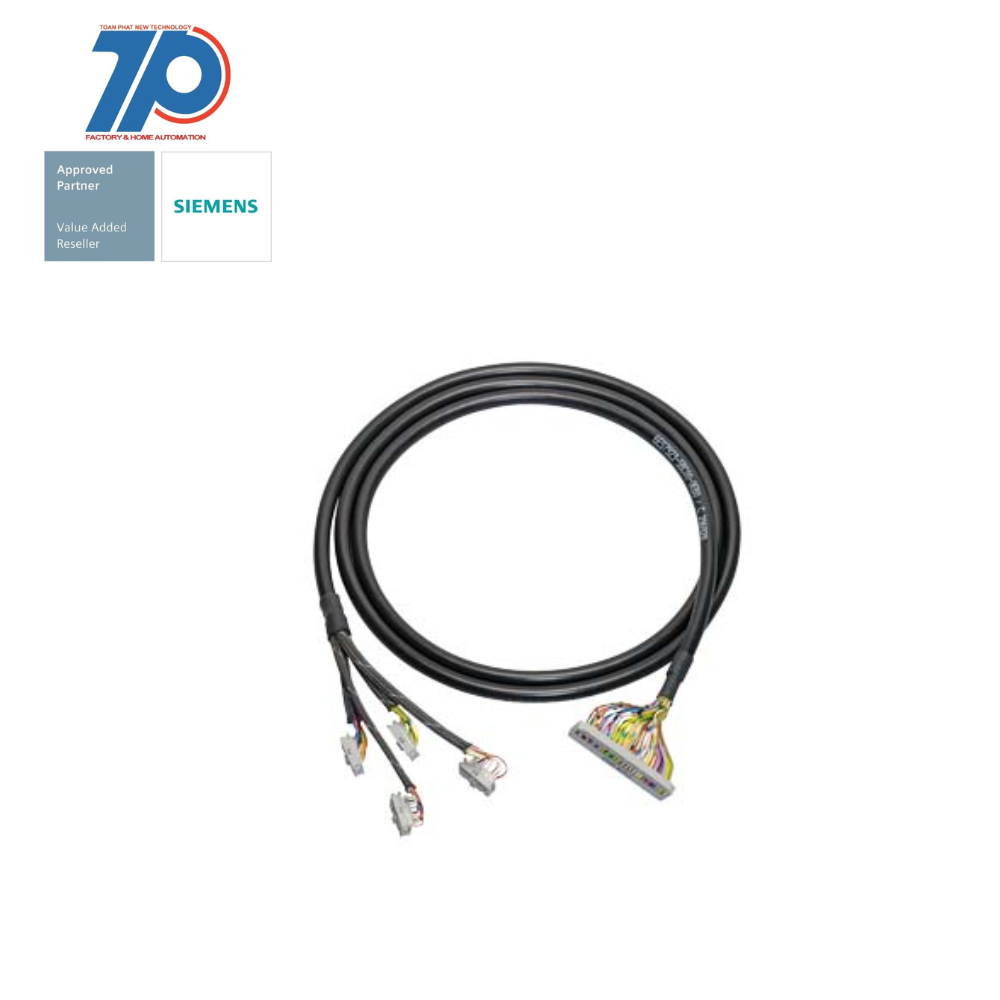

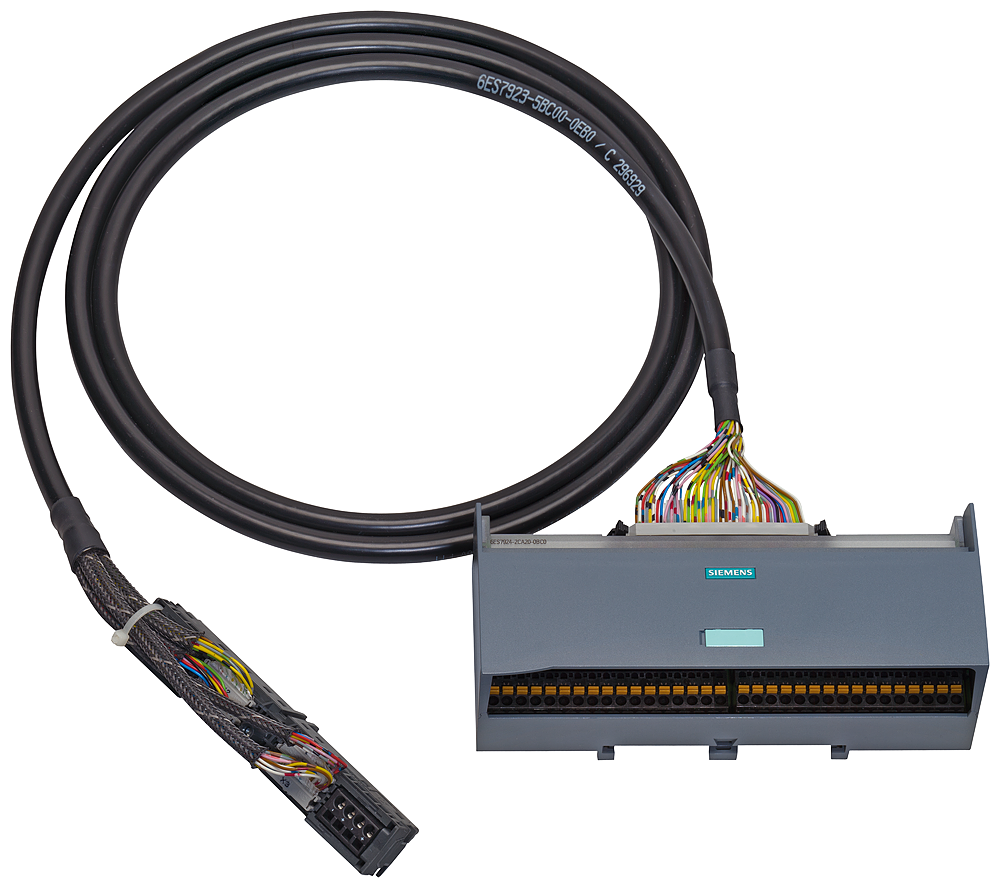

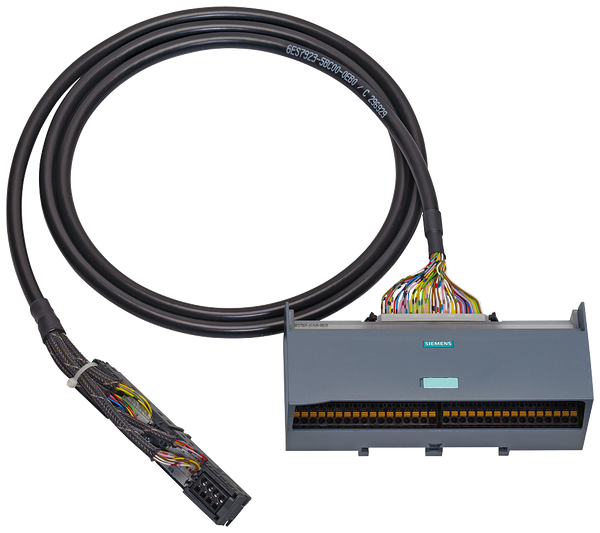

Material ID: 6ES7923-5BE00-0EB0
- Connecting cable unshielded f. SIMATIC S7-300/1500 0.14 mm2
- Between front connector module 4 x 16 pole and connection module 1 x 50 pole
- With IDC connectors
- L = 4.0 m
- The 50-pin round cable (unshielded) with a length of 4m
- Assembled on the side of the front connector module with 4 x 16-pin IDC plugs
- On the side of the connection module with a 50-pin IDC plug
- Pre-assembled cable enables a trouble-free and safe signal flow
- Complex installations remain manageable and can be checked quickly
- Maintenance and expansion are affordable

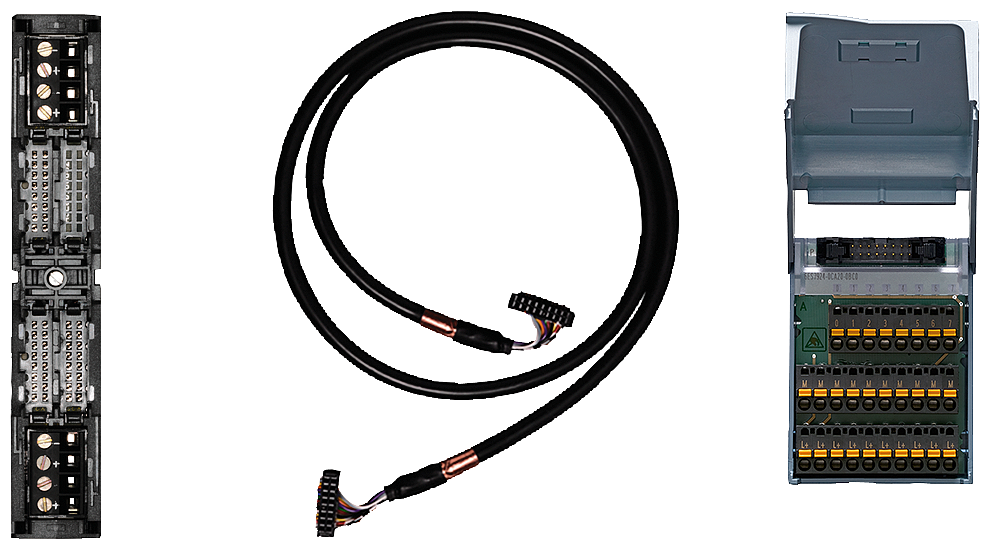

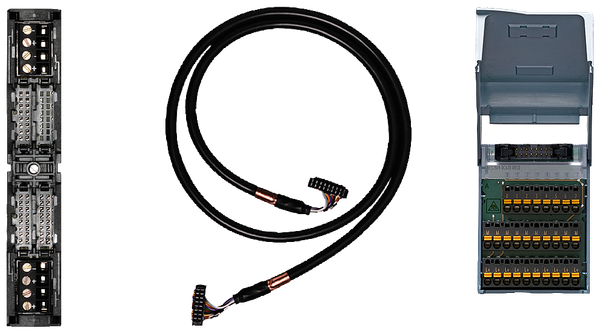

- Part of the fully modular SIMATIC TOP connect connection
- Fastest and safest system cabling
- Low wiring costs
- Error sources in cabling can be significantly reduced

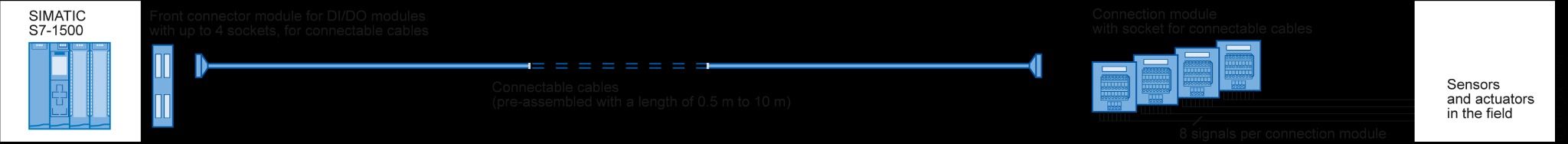

- Sensors and actuators connected to SIMATIC TOP connect connection modules
- Connected to SIMATIC S7-300/1500 via connecting cable and front plug-in module
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of poles | 50 |
| Suitable for output card PLC | true |
| Suitable for input board PLC | true |
| Type of electrical connection, box-sided | Connection plug board |
| Length | 4 m |
| Suitable for analogue signals | false |
| Suitable for digital signals | true |
| Type of electrical connection, field-sided | Connection plug board |
