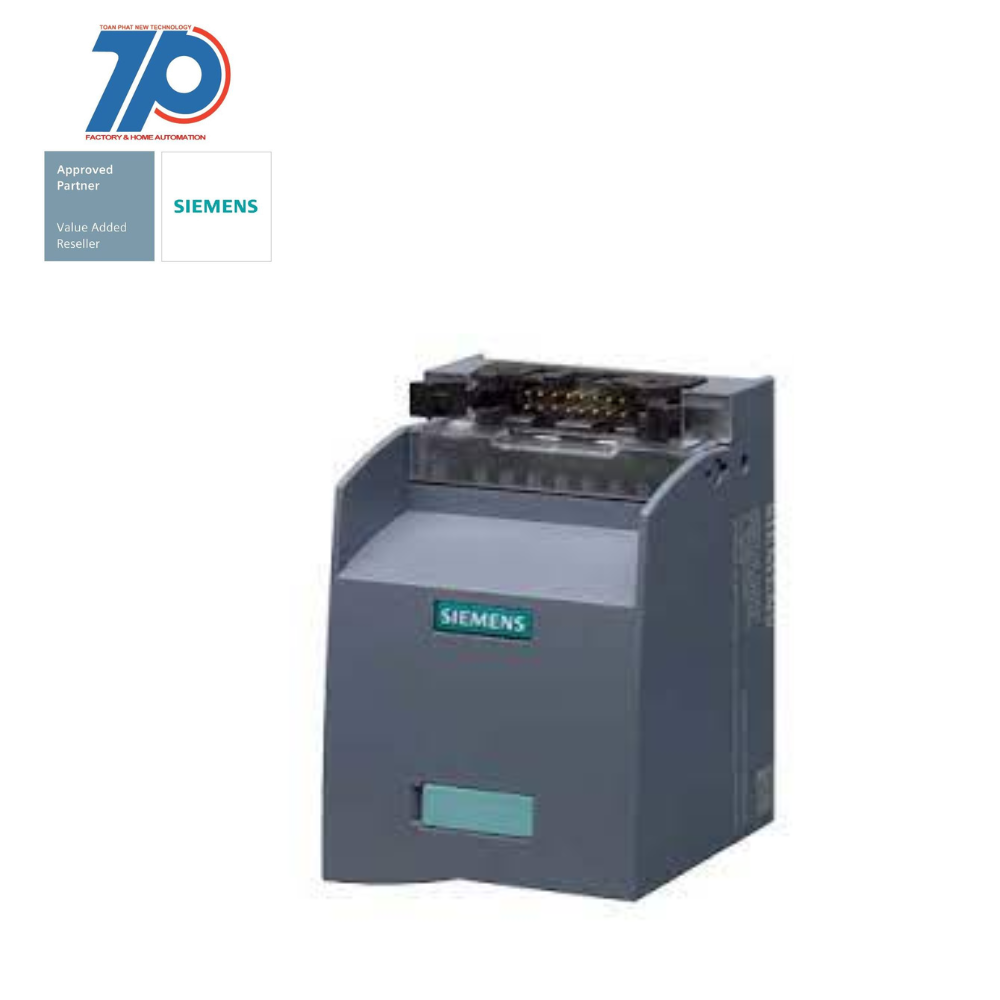

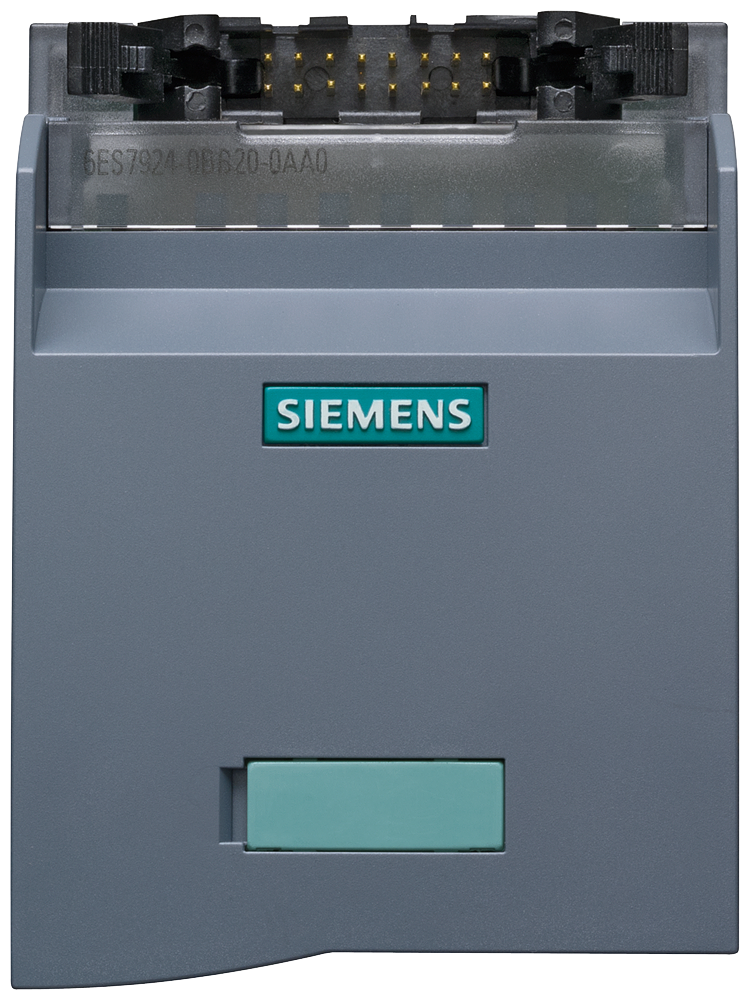

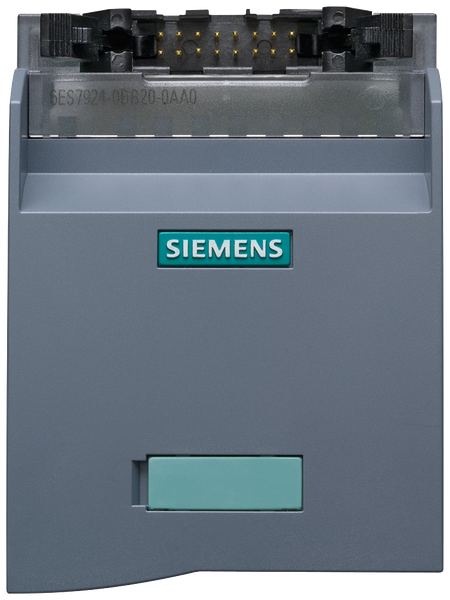

6ES7924-0BB20-0AA0

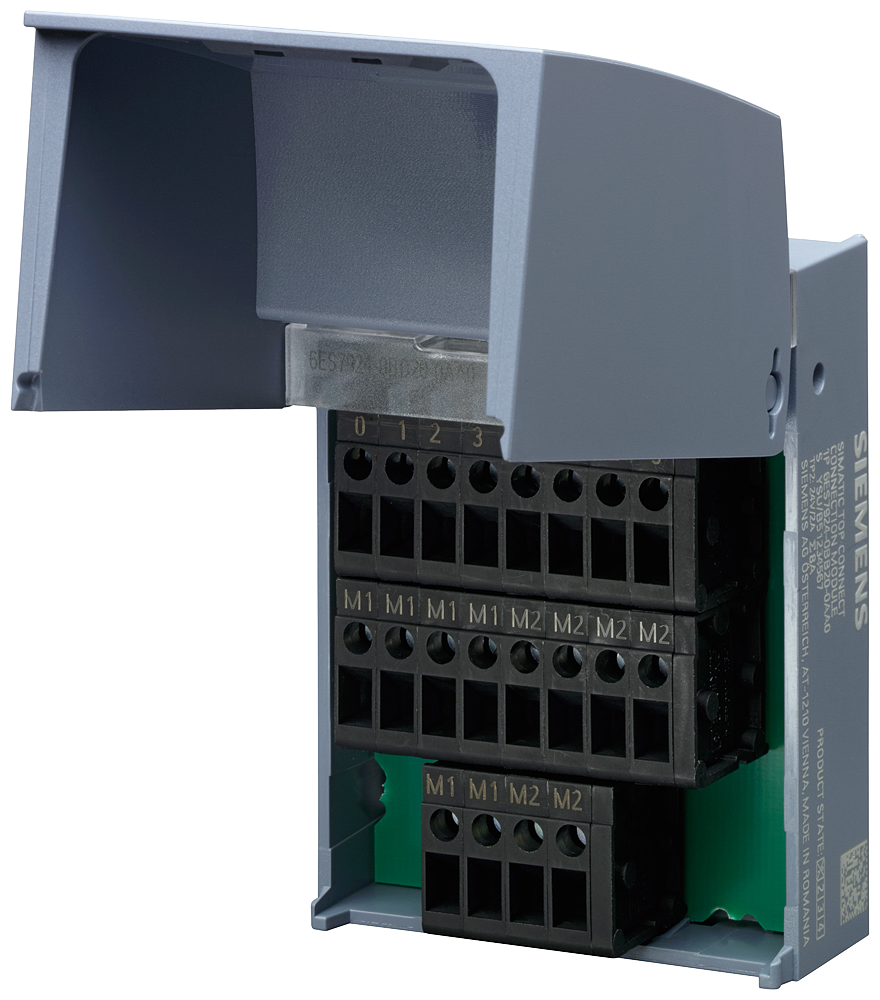

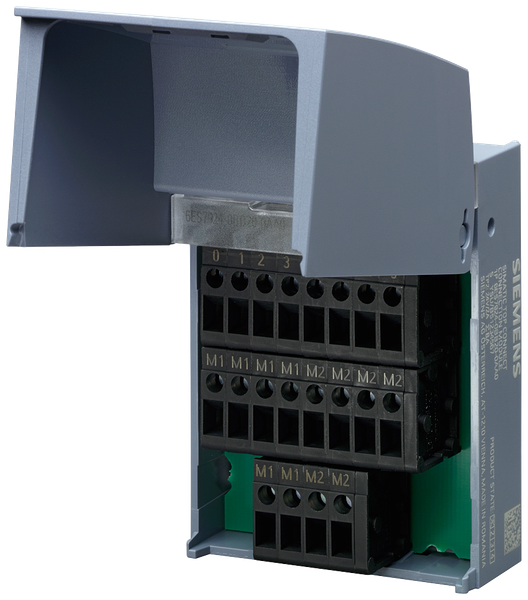

• Terminal block TP2 8 channels f. 2 A digital output and 2x6 multiplication terminals
• Type: Screw terminal without LED, VPE=1 unit
• 16 pole IDC connection for cable

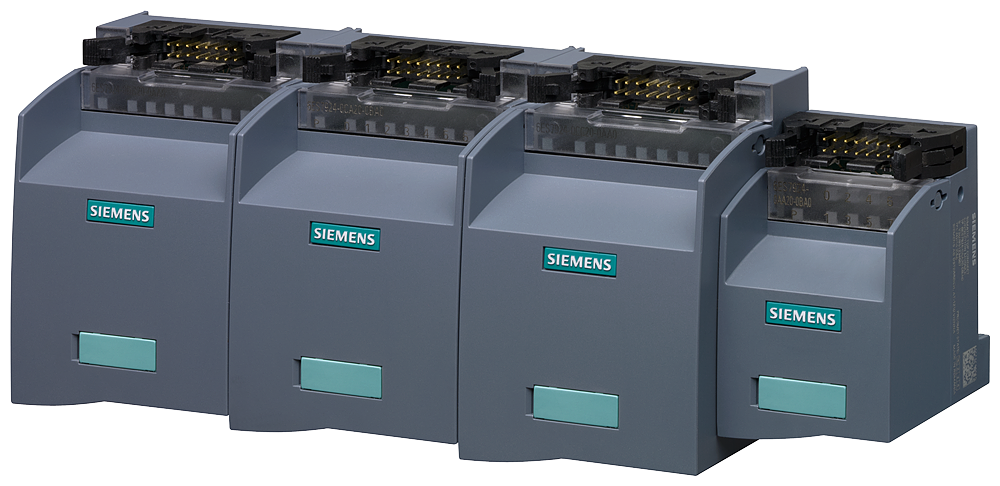

• The TP2 connection module for the 2 ampere output modules with 8 channels for a 2-wire connection with screw terminals without LED for signalling forms the interface between the connection cables of the peripherals fed in from the field and the SIMATIC S7.
• This is mounted on the DIN rail and is exactly adapted to the respective task thanks to its functionality with screw terminals.

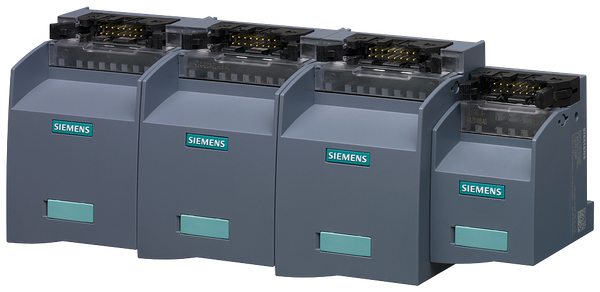

• This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling.
• In addition to low wiring costs, error sources in cabling can be significantly reduced.

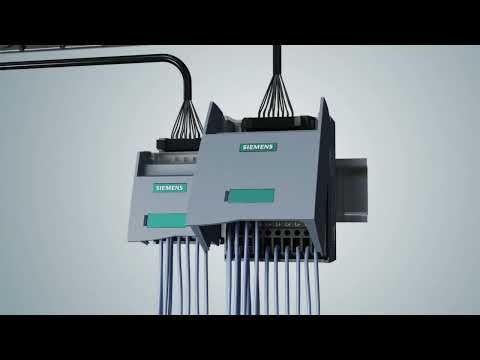

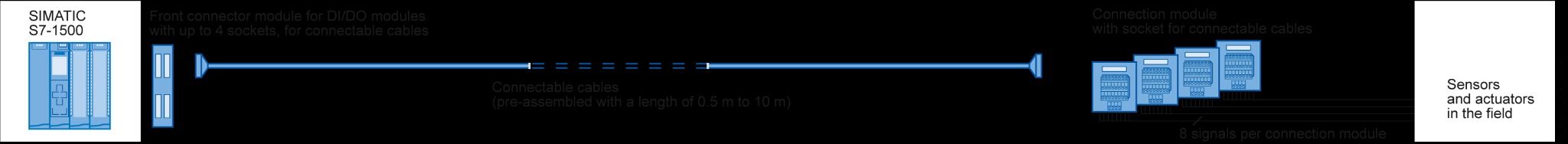

• Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.
