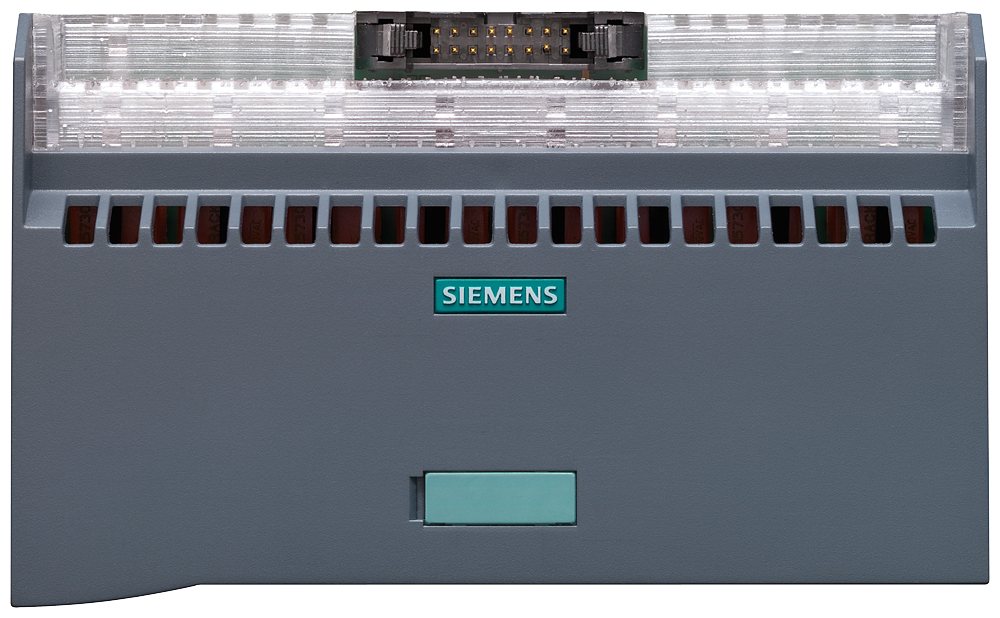

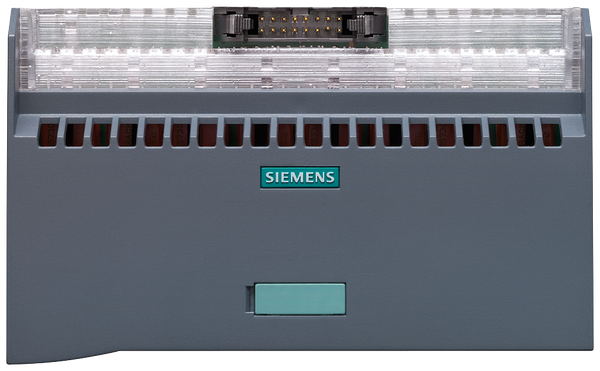

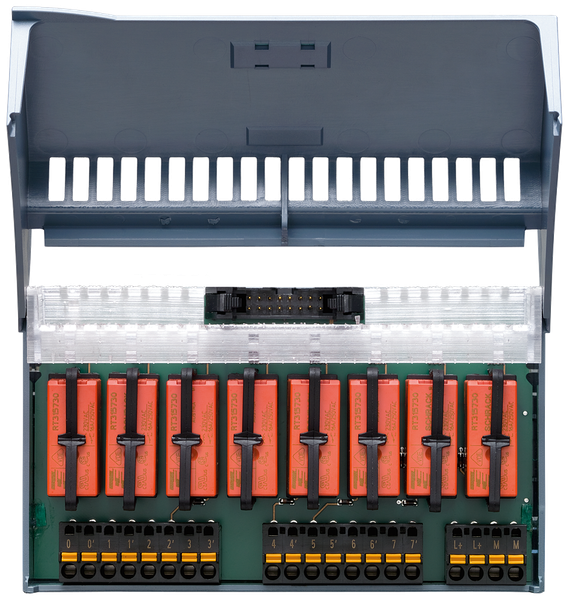

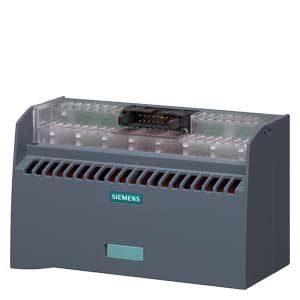

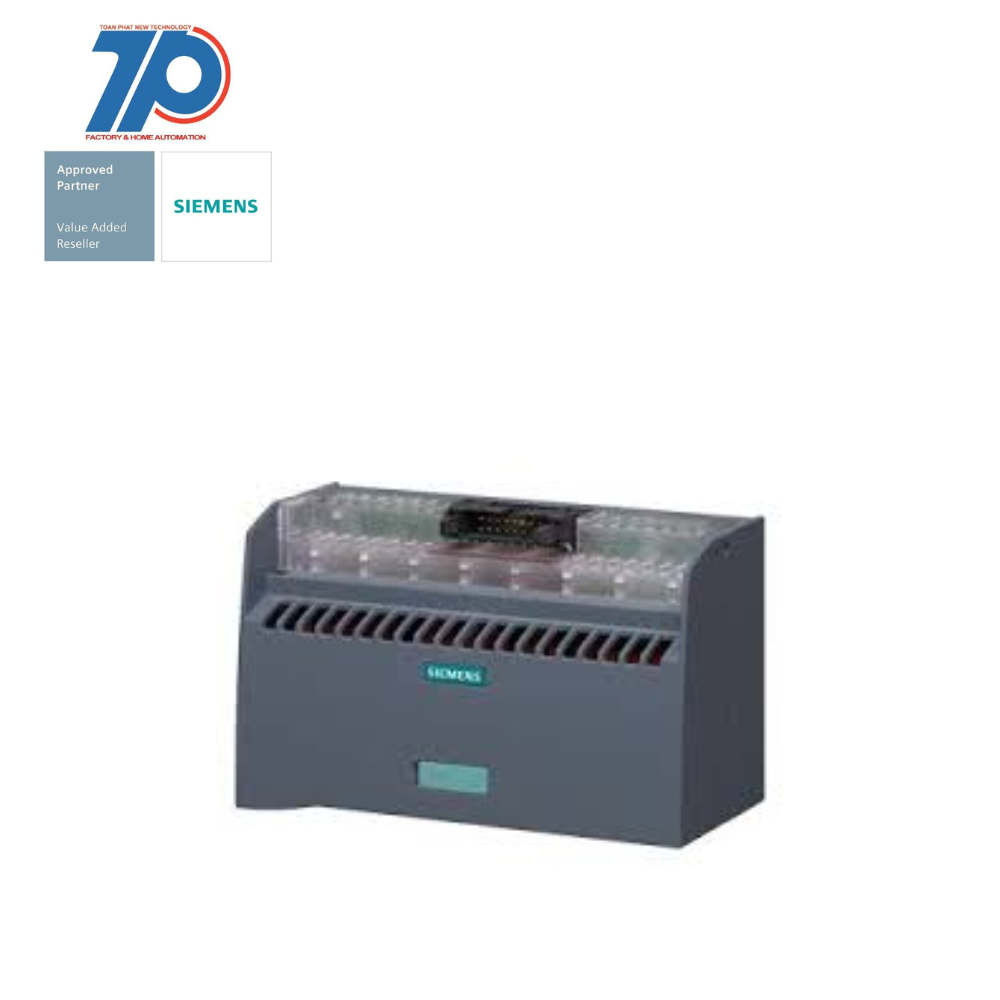

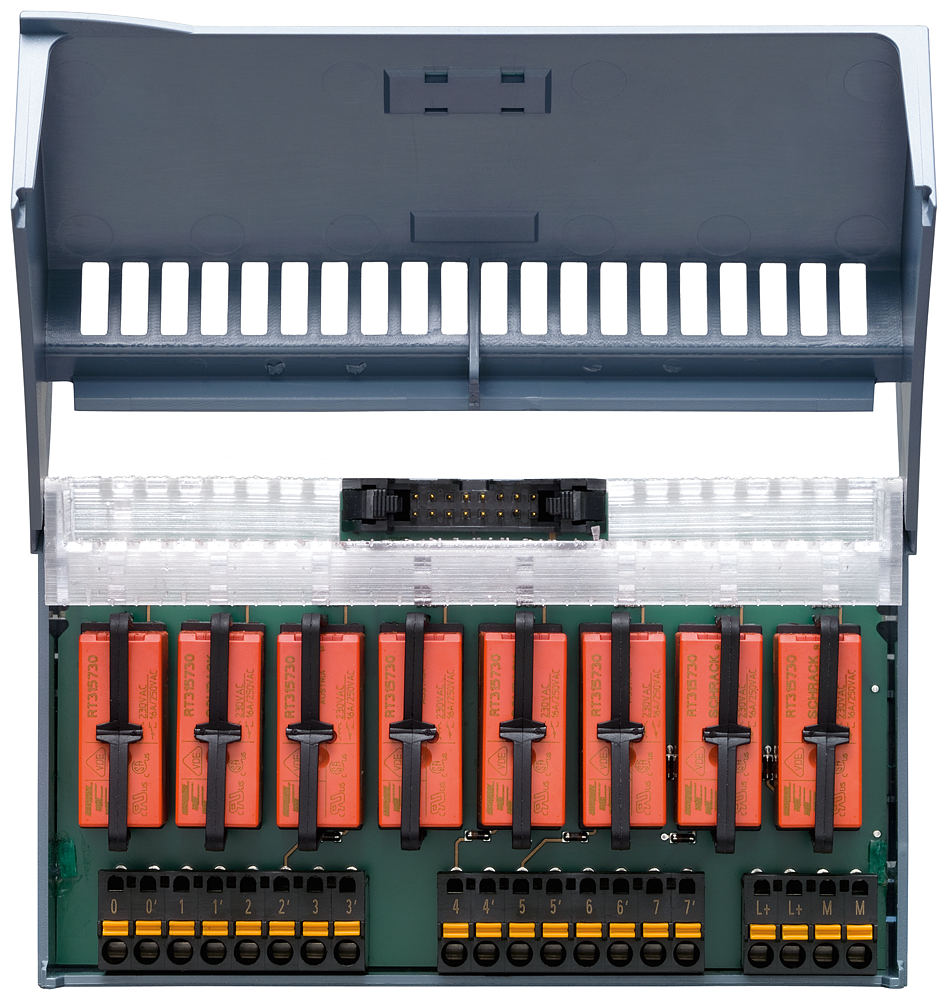

The TPRi relay connection module with relays for connecting 8 digital input signals (230VAC) and potential feed terminals (24VDC).
For potential matching to 24VDC input signal.
With push-in terminals and LED for signalling, it forms the interface between the connecting cables of the peripherals coming from the field and the SIMATIC S7.
This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, is precisely adapted to the respective task.

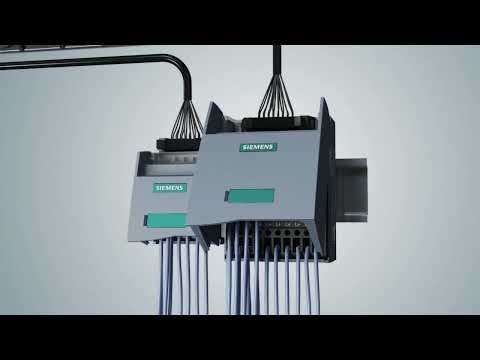

This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling.
In addition to low wiring costs, error sources in cabling can be significantly reduced.

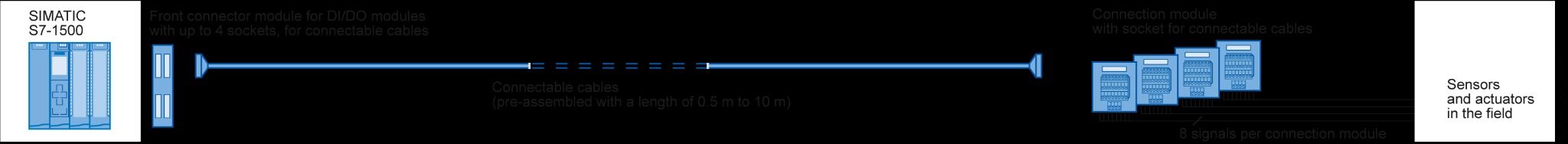

Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.
