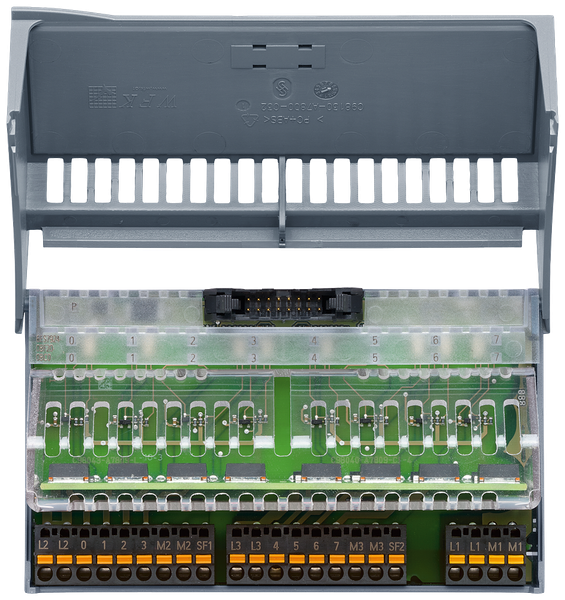

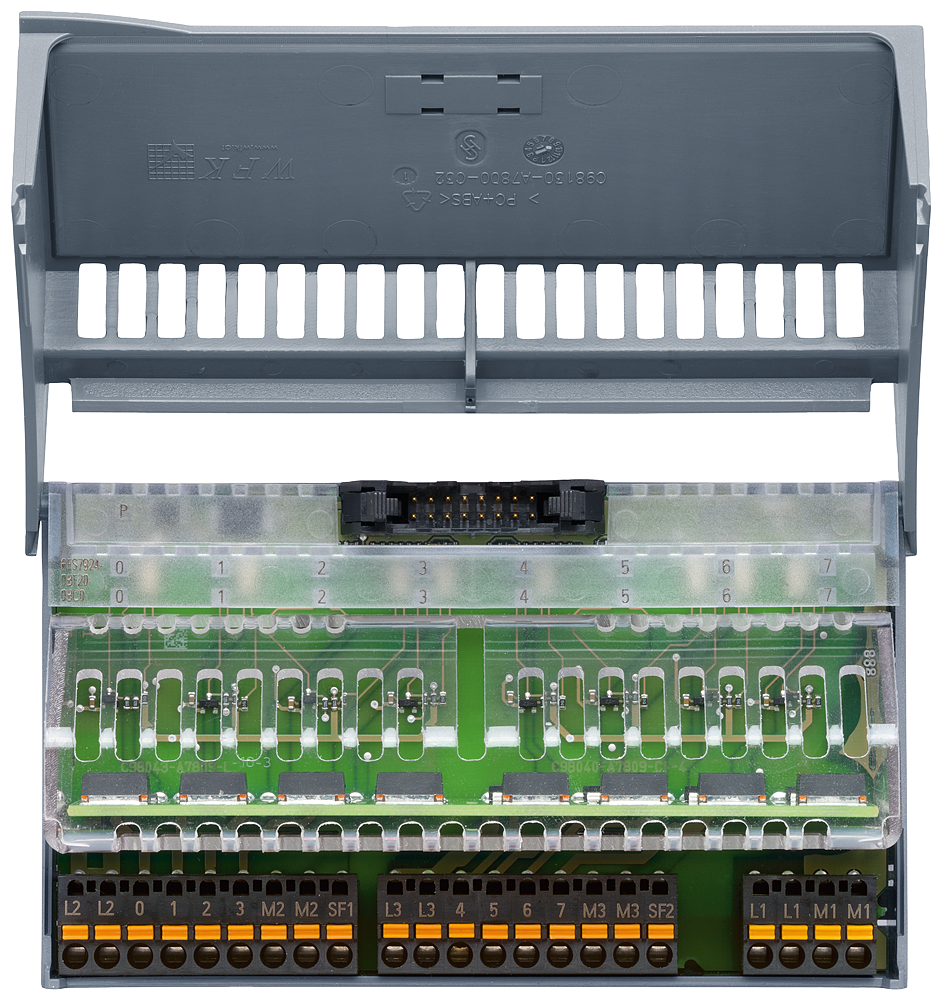

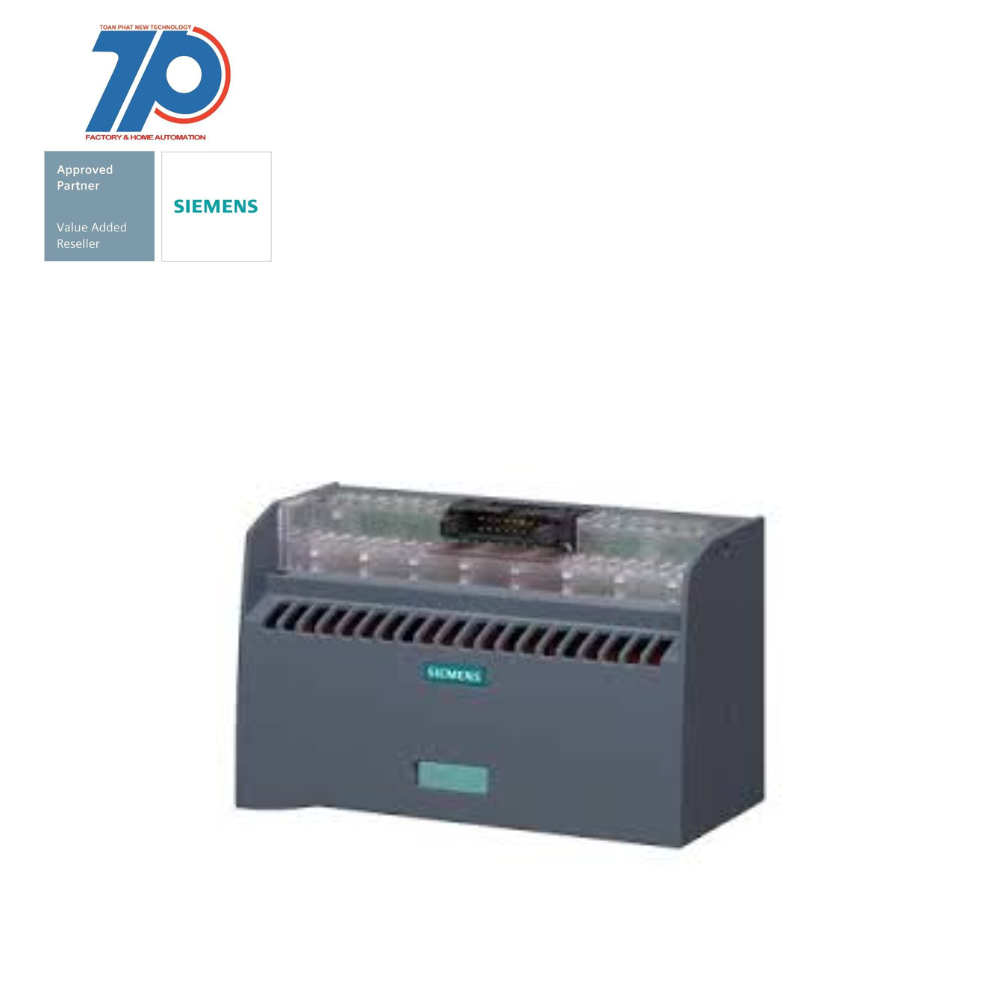

Material ID: 6ES7924-0BF20-0BA0
- Connection module TPOO w. optocoupler 24 V DC
- Output 8 NO contacts 24V DC/4 A
- Overload and short circuit-proof, with LED
- Push-in terminal VPE = 1 unit
- 16 pole IDC connection for cable
- The TPOo connection module with optocoupler and potential feed terminals (24VDC) for the connection of 8 digital outputs (24VDC) for potential adaption/isolation, contact designed as normally open contact, with screw terminals and LED for signalling forms the interface between the connection cables of the peripherals supplied from the field and the SIMATIC S7.
- This is mounted on the DIN rail and, thanks to its functionality with screw terminals, is precisely adapted to the respective task.
- This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling.
- In addition to low wiring costs, error sources in cabling can be significantly reduced.

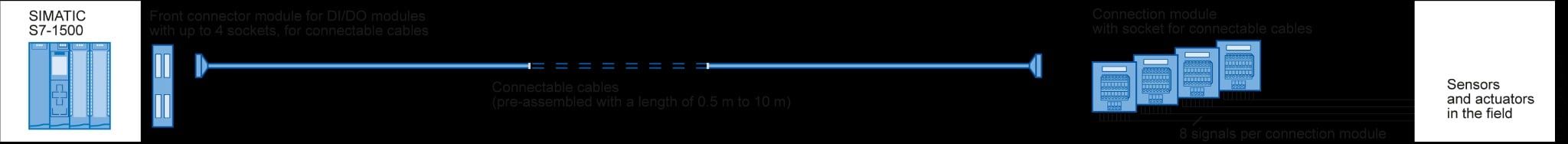

- Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| With PE connection | false |
| Disconnect function | false |
| Closing plate required | false |
| Connectable conductor cross section multi-wired | 2.5 mm² |
| Cross connectable | false |
| With power supply function | true |
| Inflammability class of insulation material according to with UL94 | V1 |
| Explosion-tested version 'Ex e' | false |
| With shield connection | false |
| Operating temperature | 60 °C |
| Colour | Grey |
| Number of clamp positions per level | 1 |
| Type of electrical connection 1 | Plug-in connection |
| Connectable conductor cross section fine-strand with cable end sleeve | 2.5 mm² |
| Rated voltage | 24 V |
| Rated current In | 1 A |
| Number of levels | 1 |
| Colour light source | Other |
| Internally connected stages | false |
| Operating temperature | 0 °C |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Other |
| Connectable conductor cross section multi-wired | 0.5 mm² |
