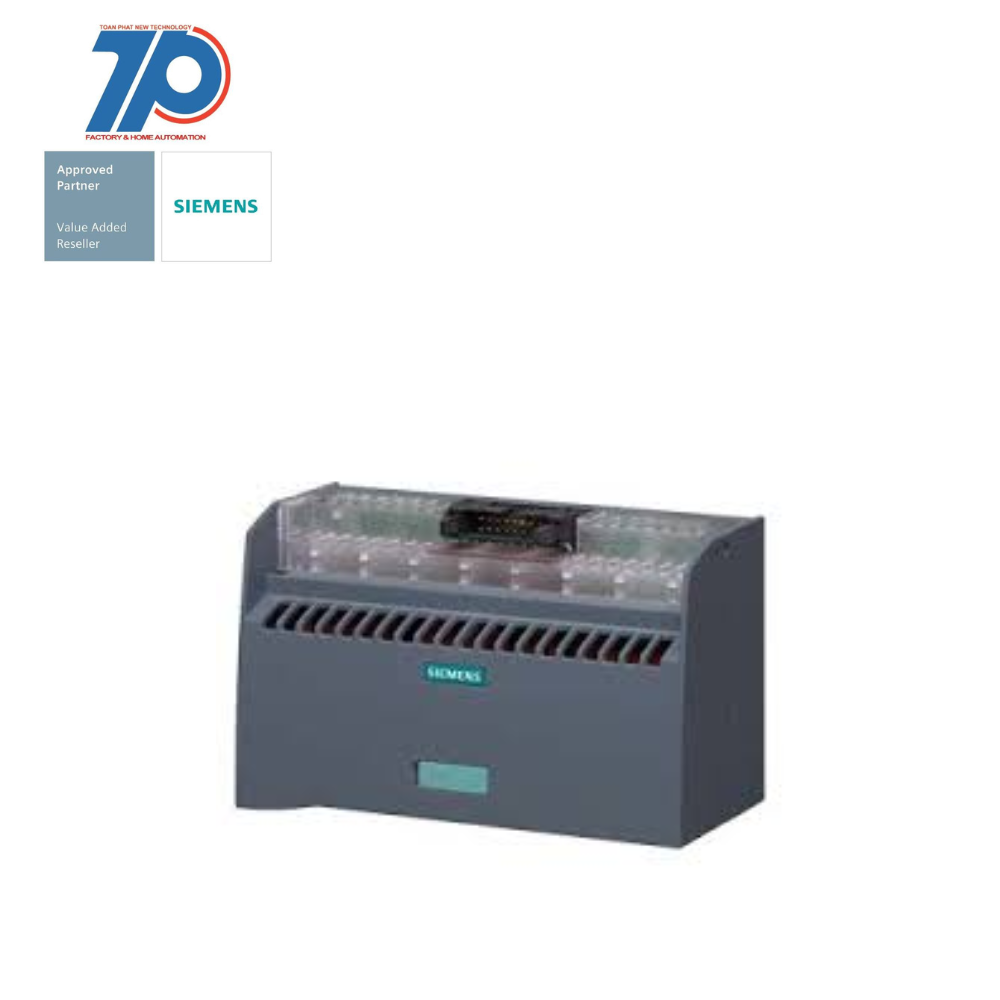

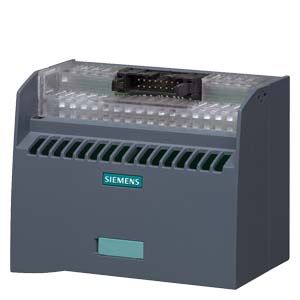

Material ID: 6ES7924-0BF20-0BC0
- Connection module TPOO with optocoupler 24 VDC
- Output 8 NO contacts 24V DC/4 A
- Overload and short circuit-proof
- With LED
- Push-in terminal
- VPE = 1 unit
- 16 pole IDC connector f. cable

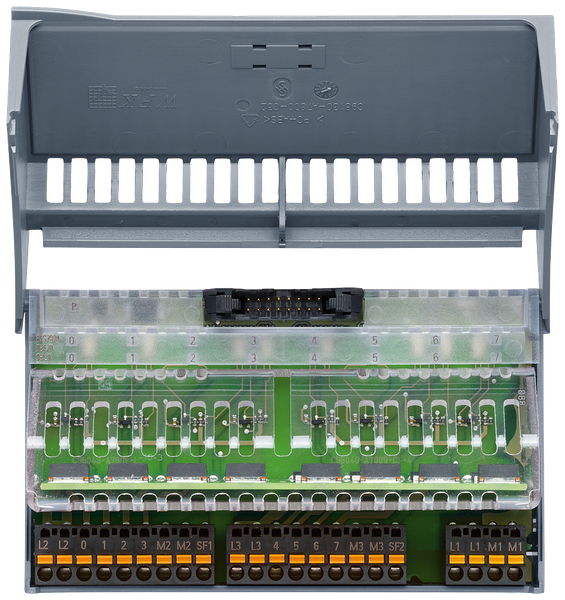

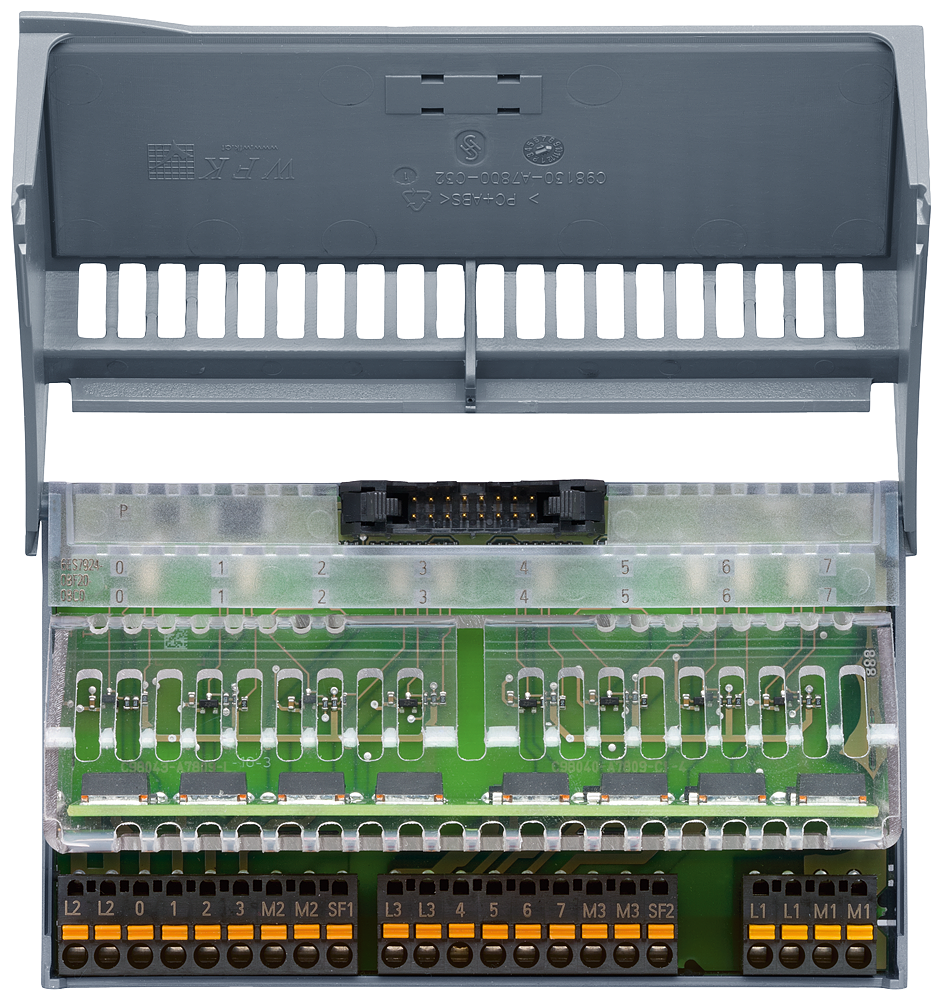

- The TPOo connection module with optocoupler and potential feed terminals (24VDC) for the connection of 8 digital outputs (24VDC) for potential adaption/isolation, contact designed as normally open contact, with push-in terminals and LED for signalling forms the interface between the connection cables of the peripherals supplied from the field and the SIMATIC S7.
- This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, is precisely adapted to the respective task.
- This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling.
- In addition to low wiring costs, error sources in cabling can be significantly reduced.

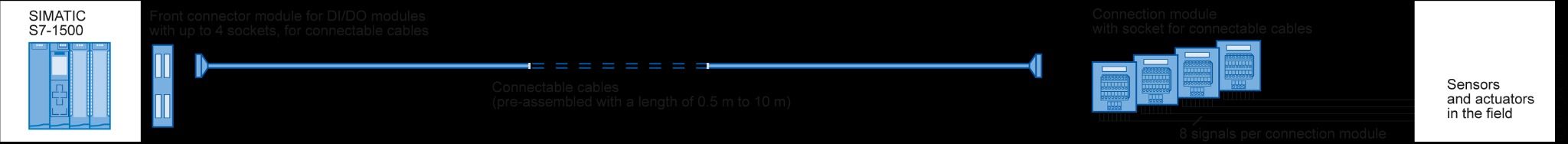

- Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of clamp positions per level | 1 |
| Explosion-tested version 'Ex e' | false |
| Connectable conductor cross section multi-wired | 2.5 mm² |
| Operating temperature | 60 °C |
| Colour | Grey |
| Rated current In | 1 A |
| Type of electrical connection 1 | Plug-in connection |
| Cross connectable | false |
| With shield connection | false |
| Closing plate required | false |
| Inflammability class of insulation material according to with UL94 | V1 |
| Connectable conductor cross section multi-wired | 0.199999999 mm² |
| Disconnect function | false |
| Internally connected stages | false |
| Number of levels | 1 |
| With PE connection | false |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.199999999 mm² |
| Material insulation body | Other |
| With power supply function | true |
| Connectable conductor cross section fine-strand without cable end sleeve | 2.5 mm² |
| Rated voltage | 24 V |
| Colour light source | Other |
| Operating temperature | 0 °C |
| Connectable conductor cross section fine-strand with cable end sleeve | 2.5 mm² |
