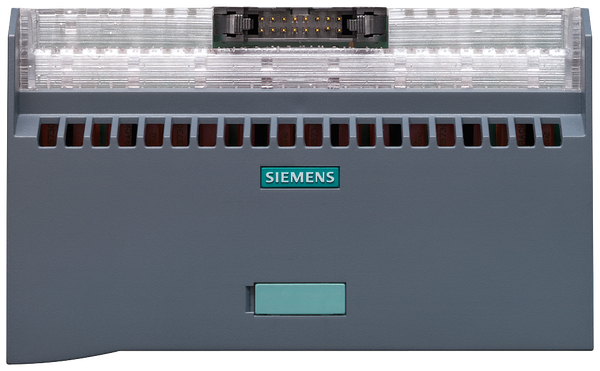

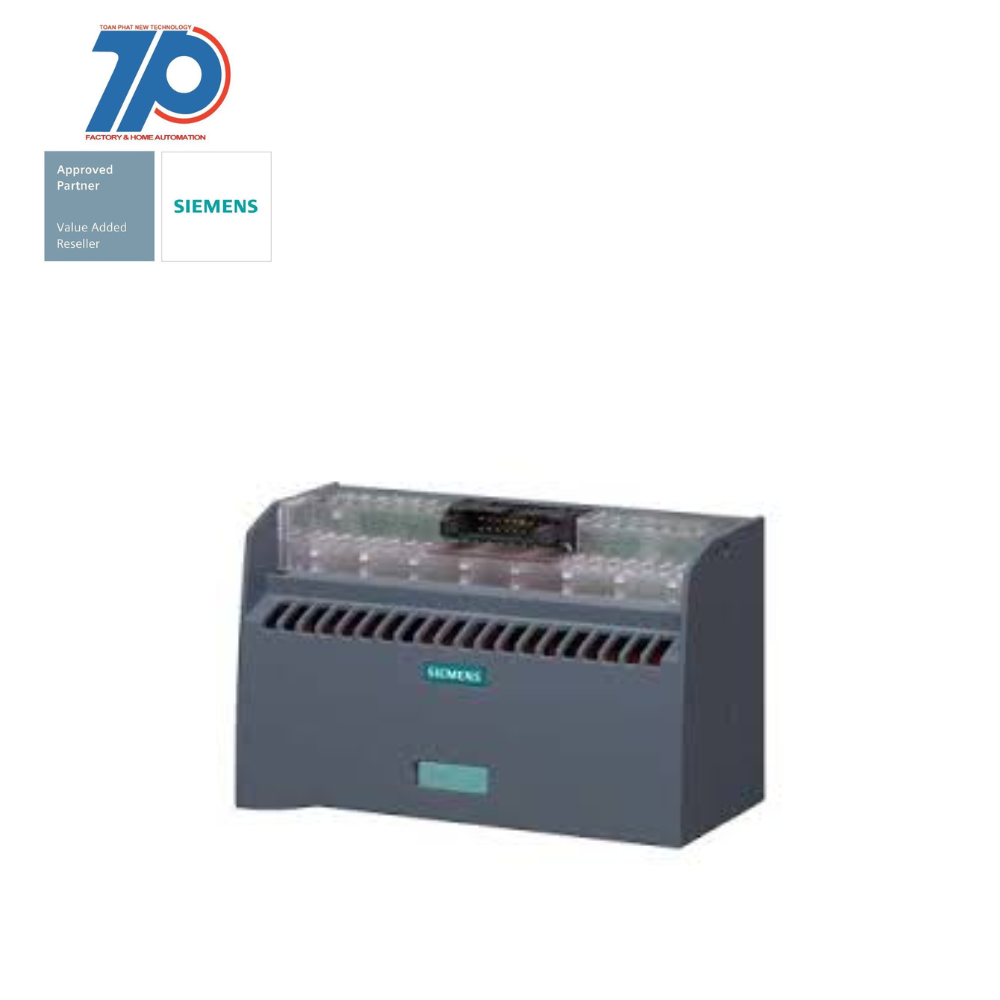

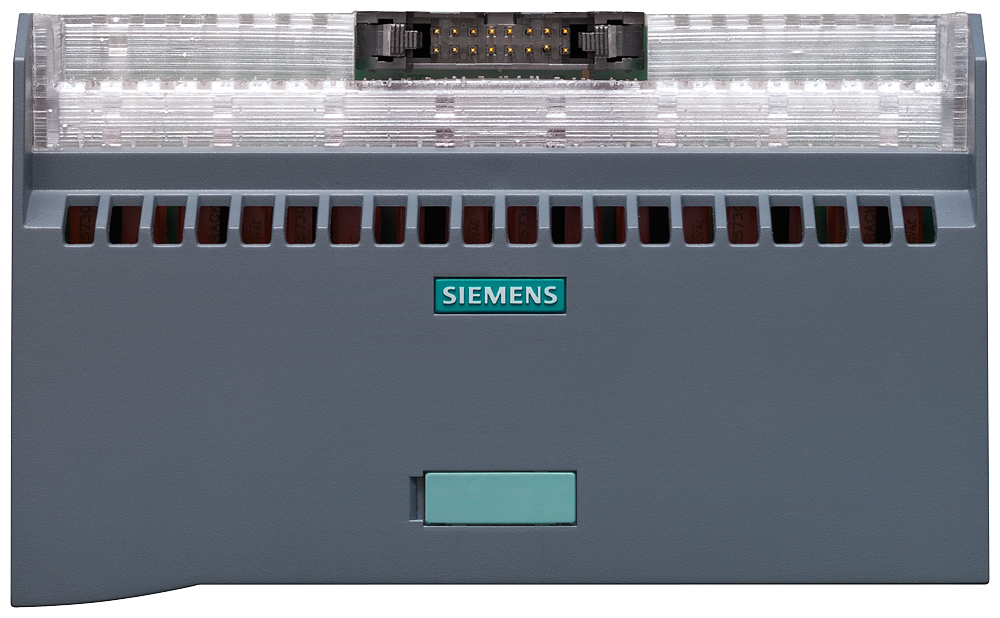

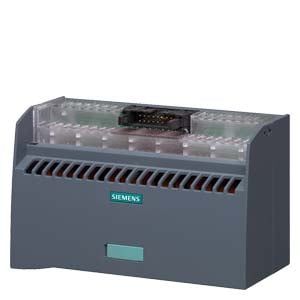

Material ID: 6ES7924-0BG20-0BA0
- Connection module TPRI with relay 110 V AC
- Output 8 NO contacts 24V DC/0.05 A
- Type: Screw terminal with LED, VPE=1 unit
- 16 pole IDC connector f. cable

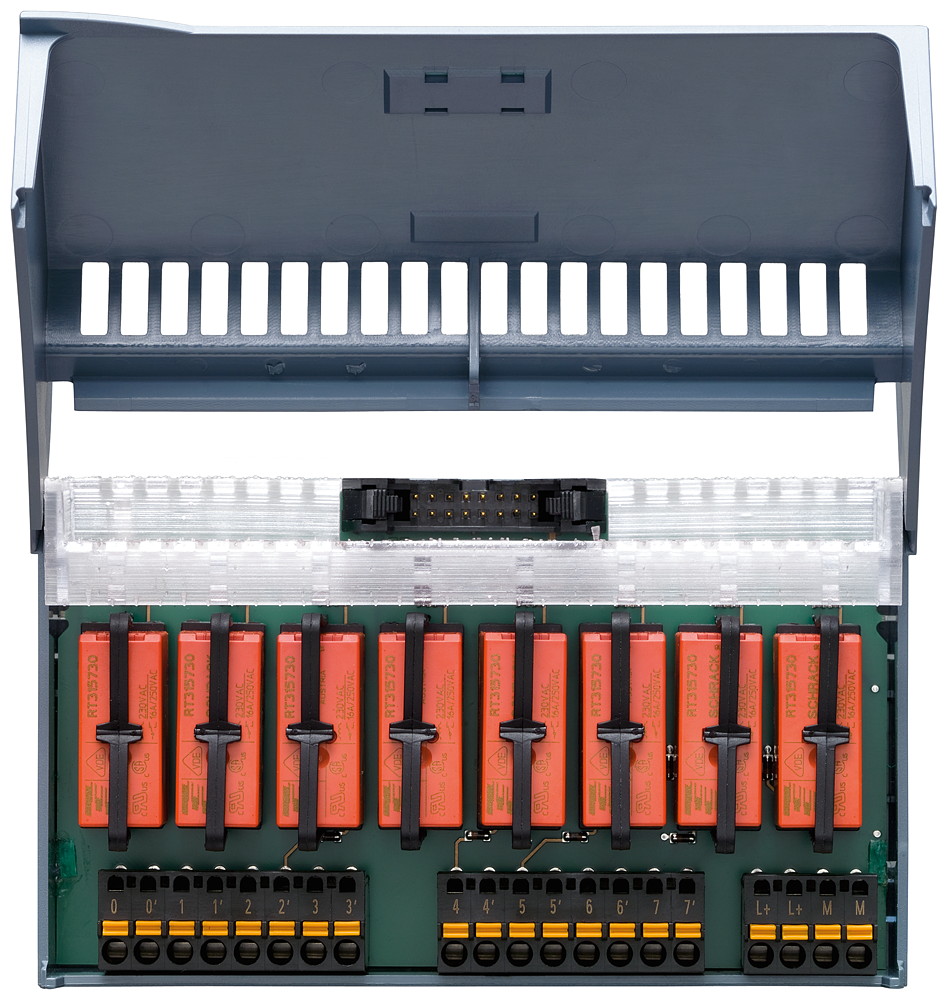

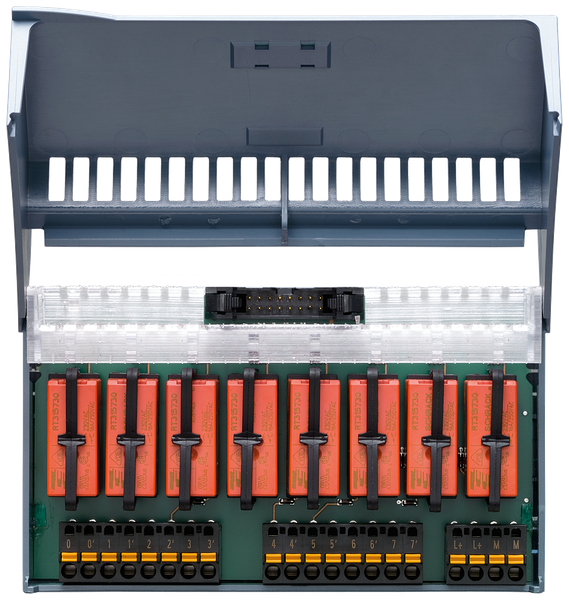

The TPRi relay connection module with relays for connecting 8 digital input signals (110VAC) and potential feed terminals (24VDC). For potential matching to 24VDC input signal. With screw terminals and LED for signalling, it forms the interface between the connection cables of the peripherals coming from the field and the SIMATIC S7. This is mounted on the DIN rail and, thanks to its functionality with screw terminals, is exactly adapted to the respective task.

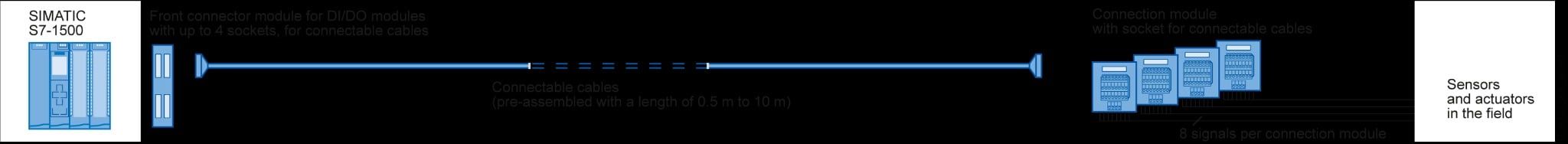

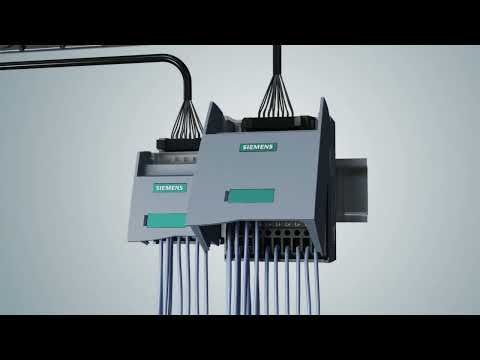

This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Closing plate required | false |
| Number of levels | 1 |
| Colour light source | Other |
| Connectable conductor cross section fine-strand with cable end sleeve | 2.5 mm² |
| Connectable conductor cross section multi-wired | 0.5 mm² |
| With shield connection | false |
| With power supply function | true |
| Material insulation body | Other |
| Internally connected stages | false |
| Operating temperature | 0 °C |
| Explosion-tested version 'Ex e' | false |
| Rated current In | 1 A |
| Cross connectable | false |
| Disconnect function | false |
| Number of clamp positions per level | 1 |
| Connectable conductor cross section multi-wired | 2.5 mm² |
| With PE connection | false |
| Inflammability class of insulation material according to with UL94 | V1 |
| Type of electrical connection 1 | Plug-in connection |
| Operating temperature | 60 °C |
| Colour | Grey |
| Type of electrical connection 2 | Screw connection |
| Rated voltage | 50 V |
