6ES7924-0CC21-0AC0
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
Tiêu đề Tab
Tiêu đề Tab

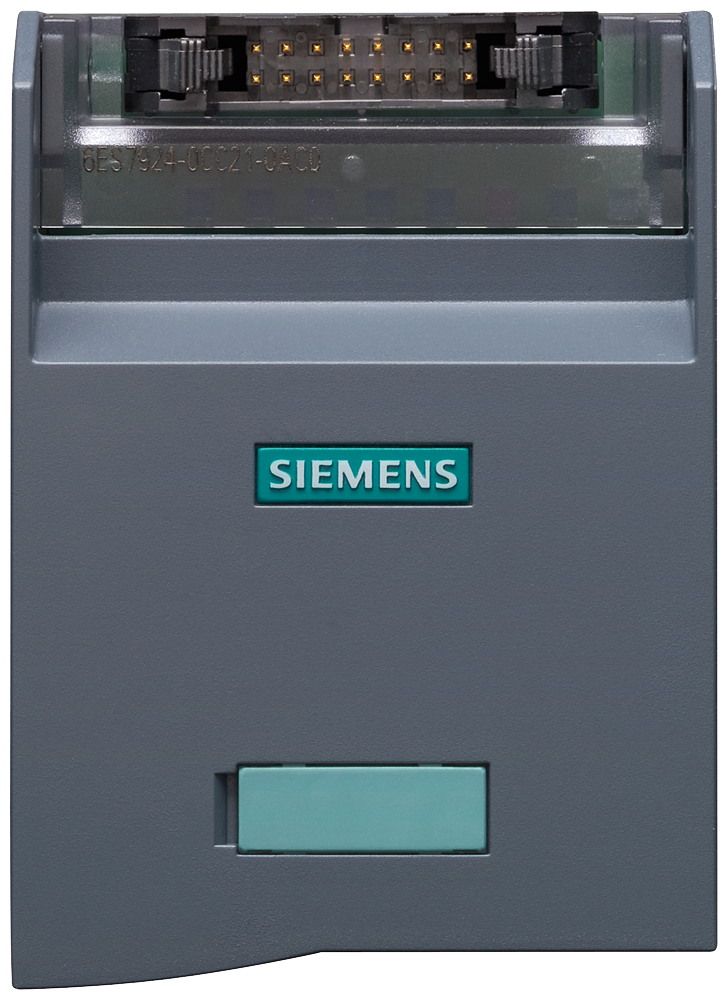

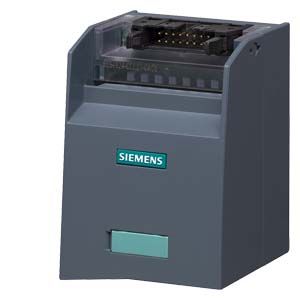

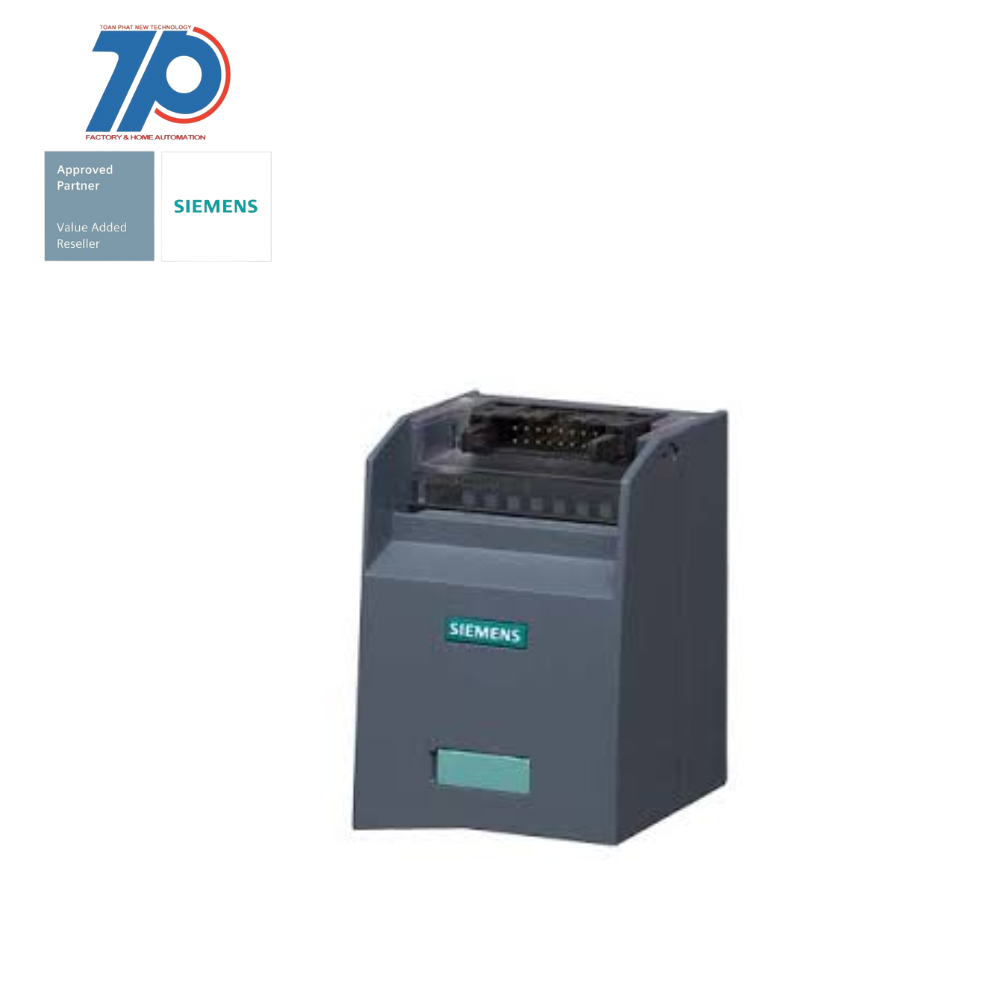

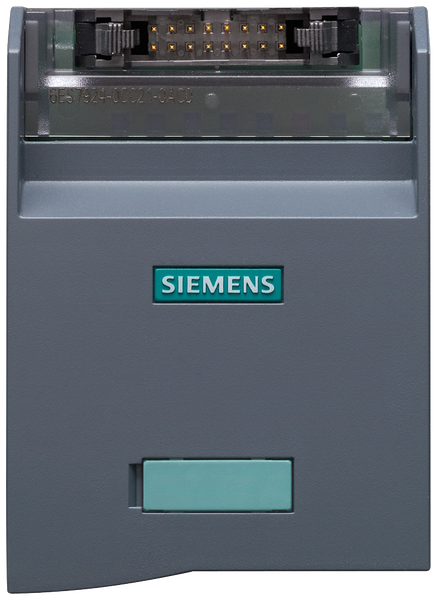

Material ID: 6ES7924-0CC21-0AC0
- Connection module TPA 3-tier for analog Modules of the SIMATIC S7-300
- Type: Push-in terminal without LED, VPE=1 unit
- 16 pole IDC connector f. cable

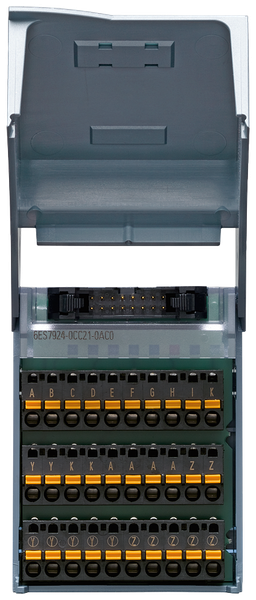

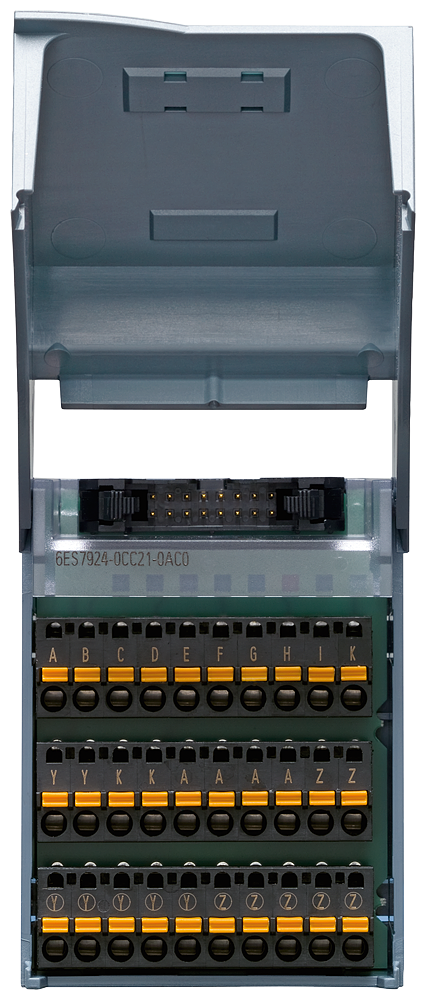

- The TPA connection module for analog modules with push-in terminals for 16-pin connecting cables without LED for signalling forms the interface between the connecting cables of the peripherals brought in from the field and the SIMATIC S7-300.

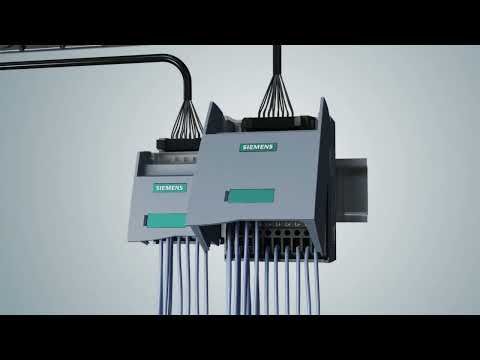

- This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, is precisely adapted to the respective task.
- This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling.
- In addition to low wiring costs, error sources in cabling can be significantly reduced.

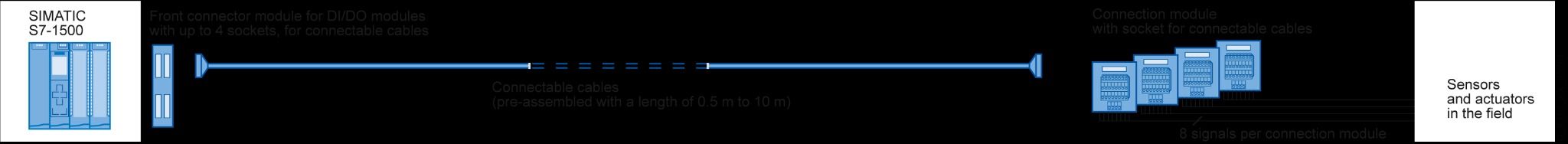

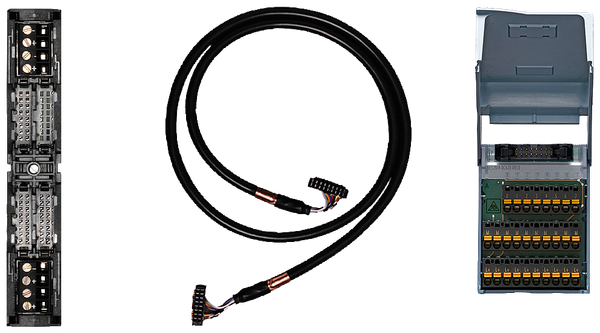

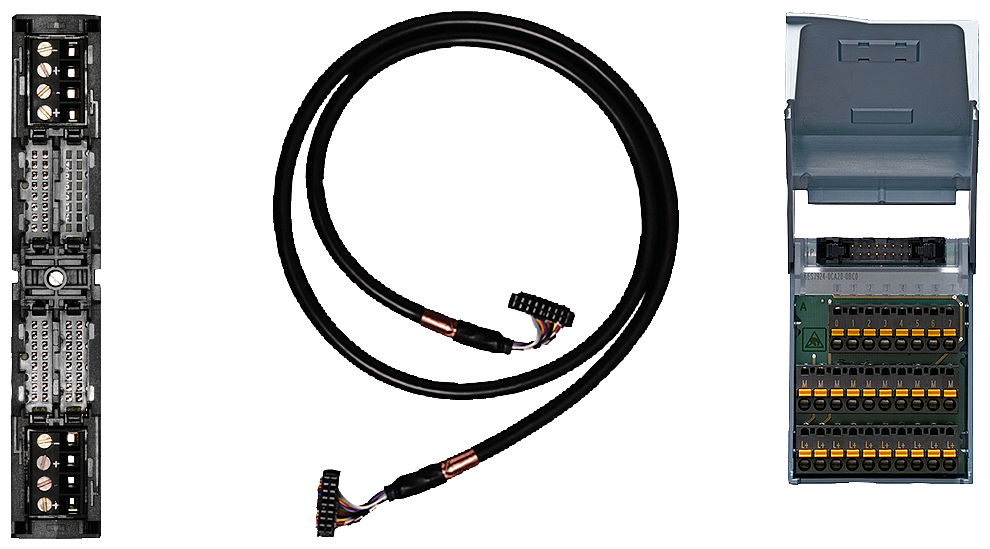

- Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300 via cable and front plug-in module.
Additional Information
Support
|
Technical Data
|
Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| With shield connection | false |
| Number of clamp positions per level | 1 |
| Connectable conductor cross section multi-wired | 0.199999999 mm² |
| Explosion-tested version 'Ex e' | false |
| Connectable conductor cross section fine-strand without cable end sleeve | 2.5 mm² |
| Internally connected stages | false |
| Colour | Grey |
| Inflammability class of insulation material according to with UL94 | V1 |
| Rated voltage | 50 V |
| Connectable conductor cross section fine-strand with cable end sleeve | 2.5 mm² |
| Rated current In | 1 A |
| Operating temperature | 0 °C |
| Material insulation body | Other |
| Number of levels | 1 |
| Disconnect function | false |
| Operating temperature | 60 °C |
| With PE connection | false |
| Cross connectable | false |
| Closing plate required | false |
| Connectable conductor cross section multi-wired | 2.5 mm² |
| Type of electrical connection 1 | Plug-in connection |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.199999999 mm² |
| With power supply function | true |
