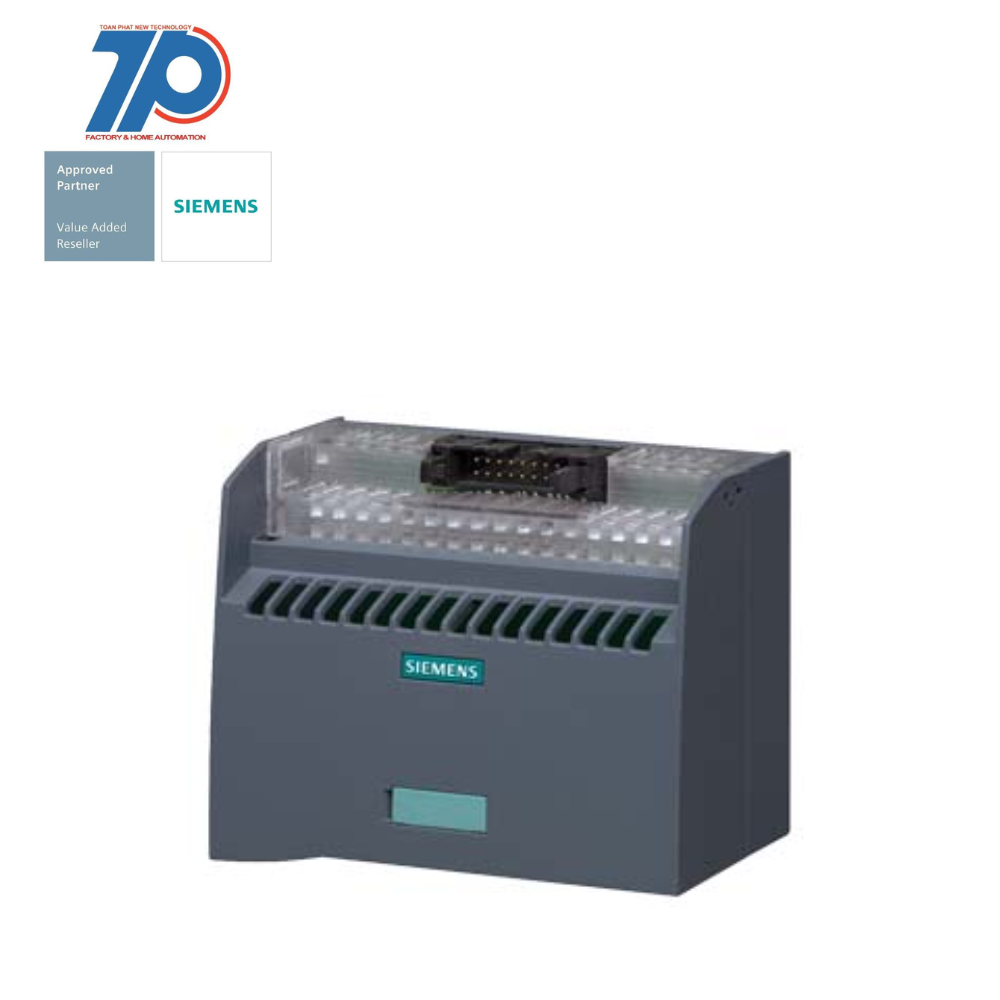

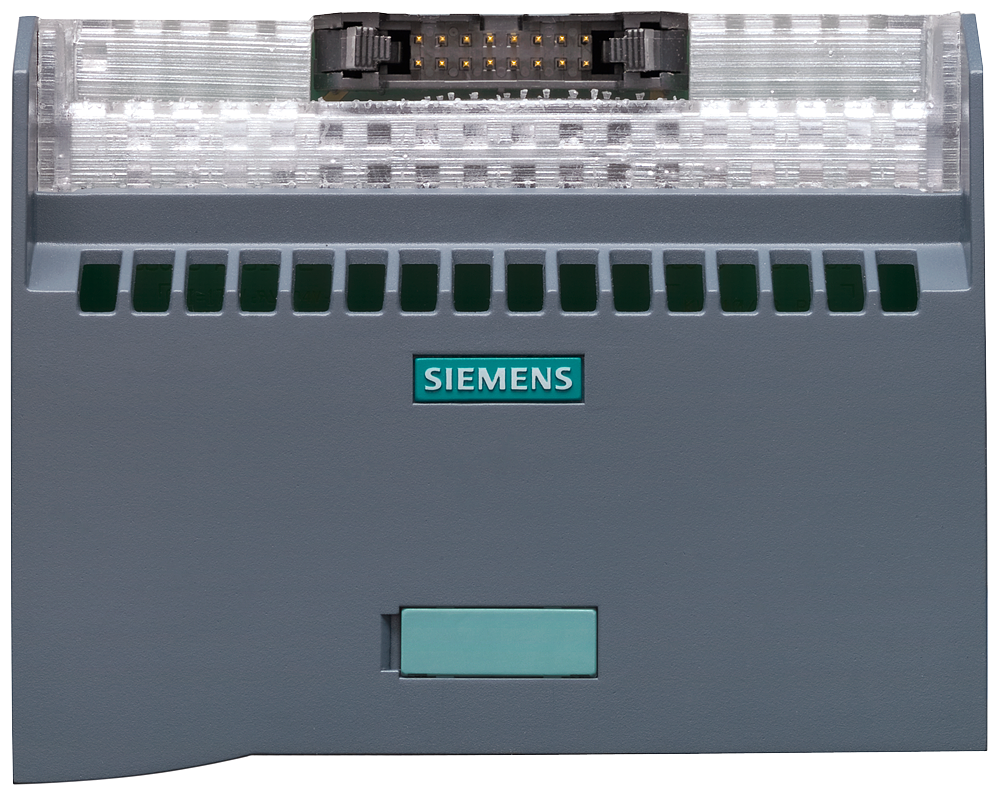

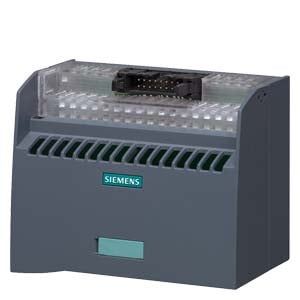

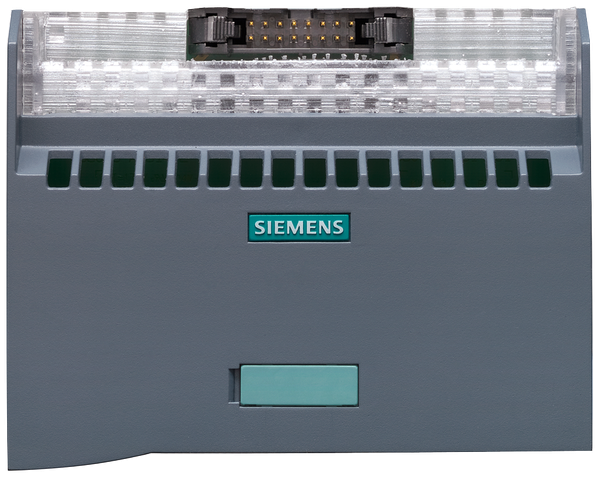

Material ID: 6ES7924-0CH20-0BA0
- Connection module TP3 with isolating terminal per channel
- 8 channels and 2x10 terminals for Potential supply
- Type: Screw terminal with LED, VPE=1 unit
- 16 pole IDC connector f. cable

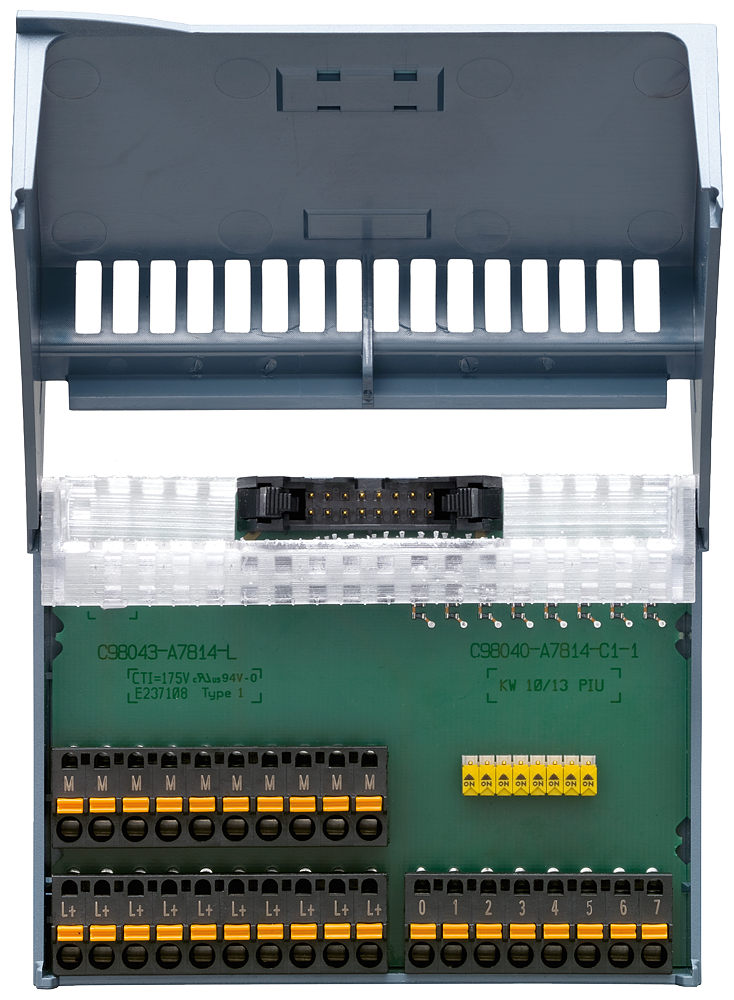

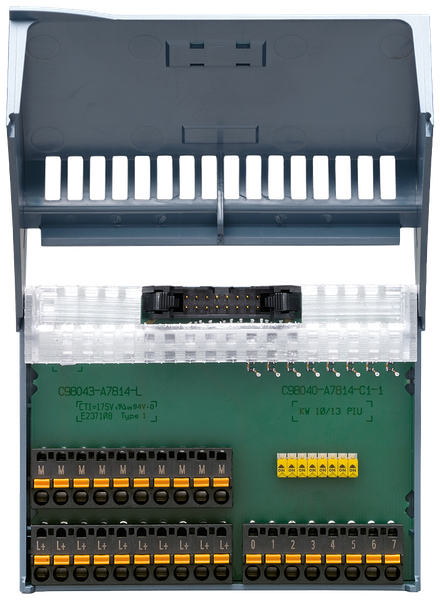

- The TP3s connection module for a 3-wire connection with 8 channels and potential connection with screw terminals, dip switches for disconnecting the signals and LEDs for signalling forms the interface between the connection cables of the peripherals and the SIMATIC S7 that come in from the field.
- This is mounted on the DIN rail and, thanks to its functionality with screw terminals, is precisely adapted to the respective task.
- This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling.
- In addition to low wiring costs, error sources in cabling can be significantly reduced.

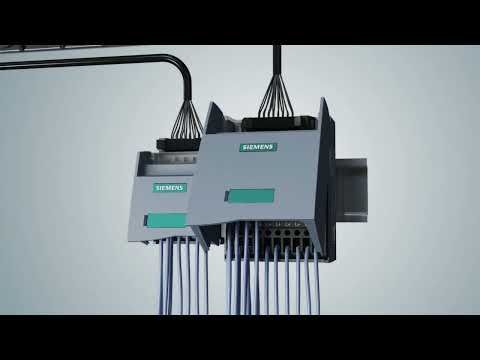

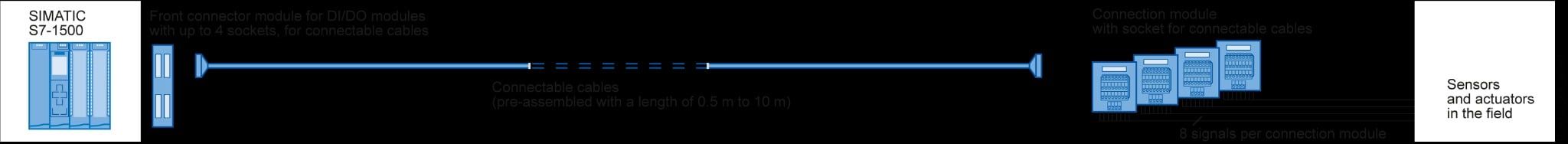

- Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Material insulation body | Other |
| Connectable conductor cross section multi-wired | 0.5 mm² |
| Closing plate required | false |
| With power supply function | true |
| With PE connection | false |
| Number of clamp positions per level | 1 |
| Explosion-tested version 'Ex e' | false |
| Colour | Grey |
| Operating temperature | 0 °C |
| With shield connection | false |
| Disconnect function | true |
| Colour light source | Other |
| Inflammability class of insulation material according to with UL94 | V1 |
| Type of electrical connection 2 | Screw connection |
| Rated voltage | 24 V |
| Type of electrical connection 1 | Plug-in connection |
| Number of levels | 1 |
| Connectable conductor cross section multi-wired | 2.5 mm² |
| Cross connectable | false |
| Rated current In | 1 A |
| Operating temperature | 60 °C |
| Connectable conductor cross section fine-strand with cable end sleeve | 2.5 mm² |
| Internally connected stages | false |
