8 channels and 2x10 terminals for Potential supply
Type: Push-in terminal with LED, VPE=1 unit
16 pole IDC connector f. cable

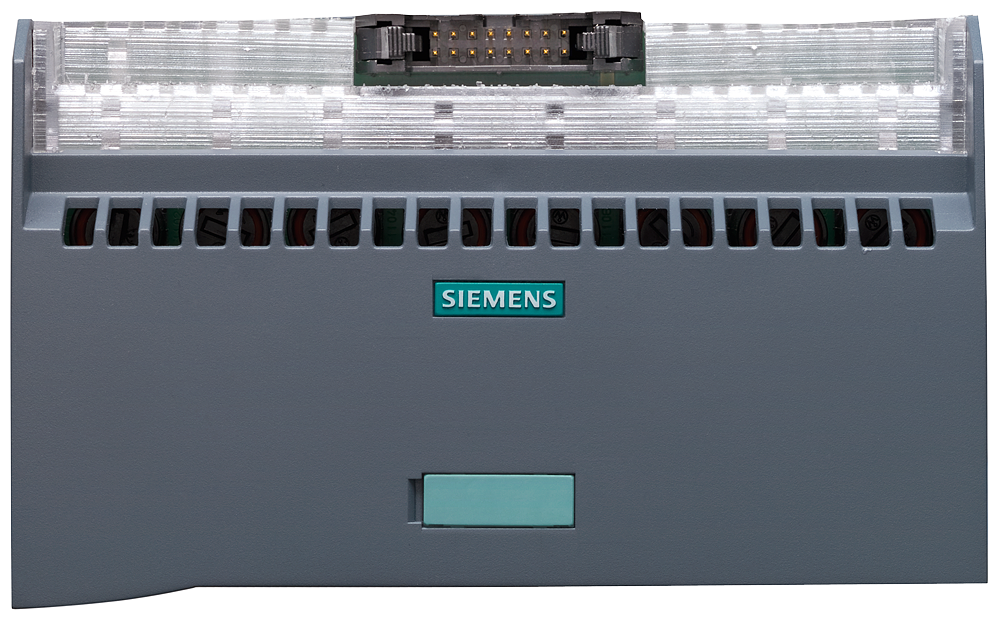

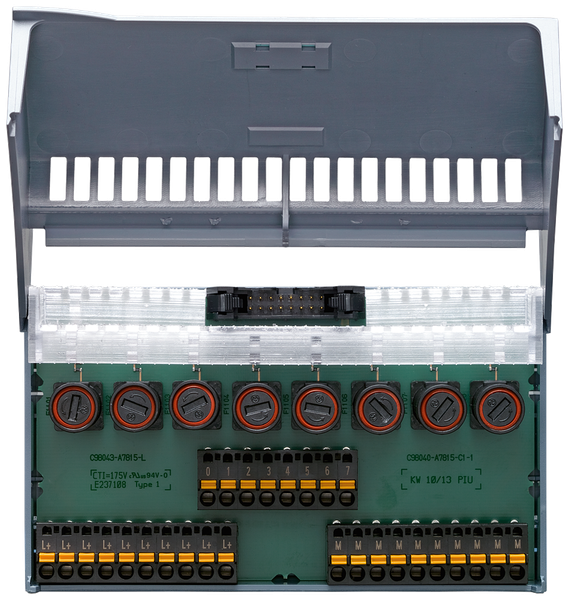

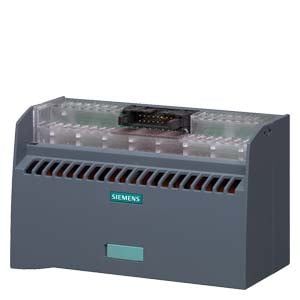

The TP3f connection module for a 3-wire connection with 8 channels and potential connection with push-in terminals, fuses for the signals and LED for signalling forms the interface between the connection cables of the peripherals and the SIMATIC S7 that are fed in from the field.
This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, is precisely adapted to the respective task.
This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling.
In addition to low wiring costs, error sources in cabling can be significantly reduced.

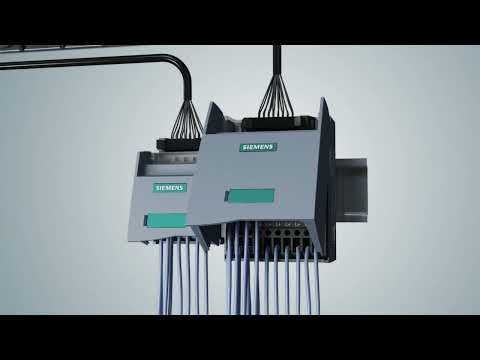

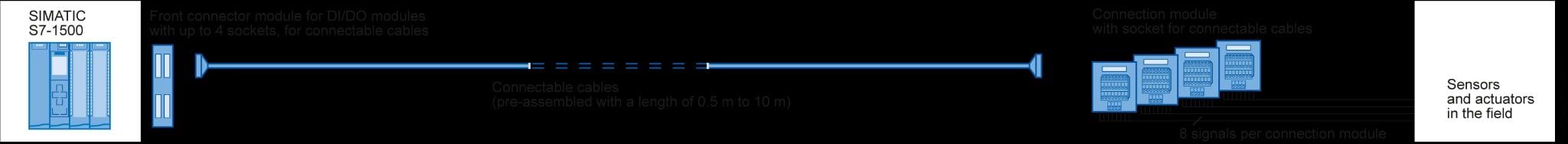

Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.
