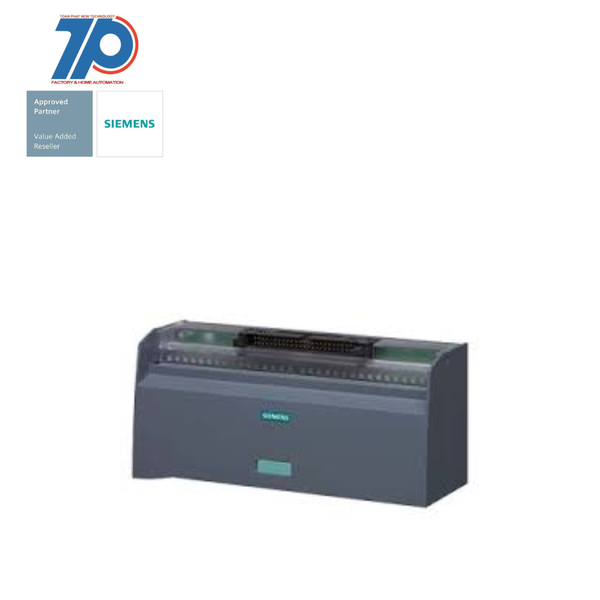

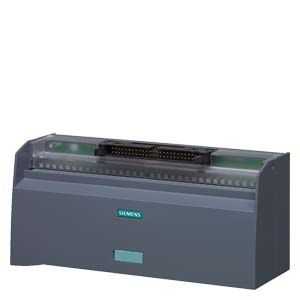

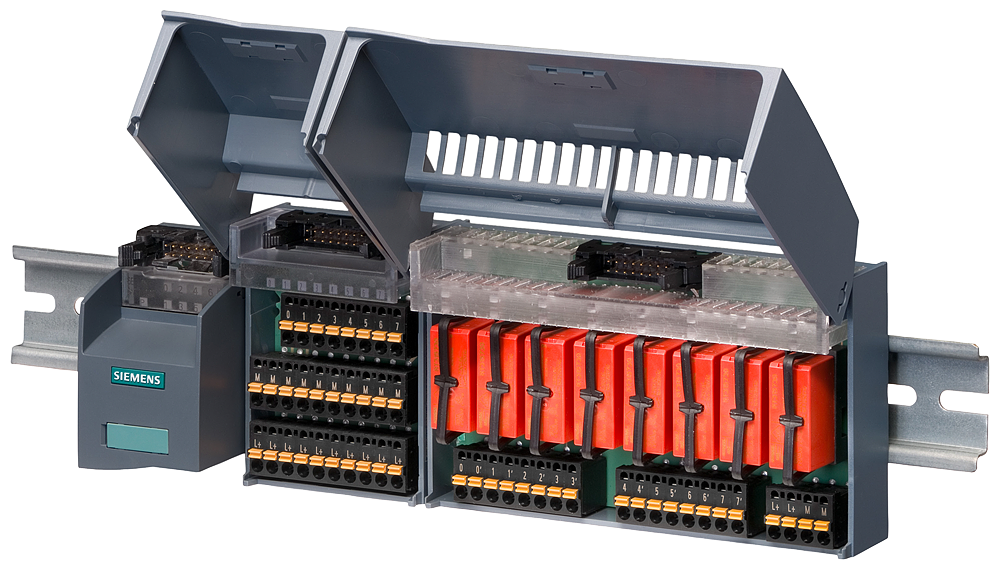

Material ID: 6ES7924-2CA20-0AC0
- Connection module TP3 32 channels
- 2x33 terminals
- Potential supply Type: Push-in terminal without LED, VPE=1 unit
- 50 pole IDC connector for cable
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Material insulation body | Other |
| Connectable conductor cross section fine-strand with cable end sleeve | 2.5 mm² |
| Internally connected stages | false |
| Rated current In | 1 A |
| Inflammability class of insulation material according to with UL94 | V1 |
| Operating temperature | 60 °C |
| Colour | Grey |
| Connectable conductor cross section fine-strand without cable end sleeve | 2.5 mm² |
| Connectable conductor cross section multi-wired | 2.5 mm² |
| Connectable conductor cross section multi-wired | 0.199999999 mm² |
| Explosion-tested version 'Ex e' | false |
| Rated voltage | 50 V |
| Cross connectable | false |
| Closing plate required | false |
| Number of clamp positions per level | 1 |
| Number of levels | 1 |
| Type of electrical connection 1 | Plug-in connection |
| Disconnect function | false |
| With power supply function | true |
| With PE connection | false |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.199999999 mm² |
| With shield connection | false |
| Operating temperature | 0 °C |
