Material ID: 6ES7972-0AC80-0XA0

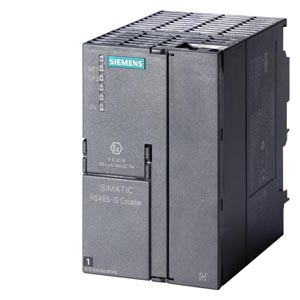

SIMATIC DP, distributed I/O Field device connection RS 485-IS coupler
This RS 485-IS coupler is designed for connecting field devices in a distributed I/O system. It acts as a fieldbus coupler between PROFIBUS DP and RS485-IS, allowing for the control of intrinsically safe PROFIBUS nodes.
Installation of this coupler is suitable for hazardous zone 2, and it is designed to operate within an extended temperature range. With a degree of protection of IP20, it offers reliable performance in various industrial environments.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for SafetyBUS p | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFINET CBA | false |
| Suitable for safety functions | false |
| Supporting protocol for DeviceNet Safety | false |

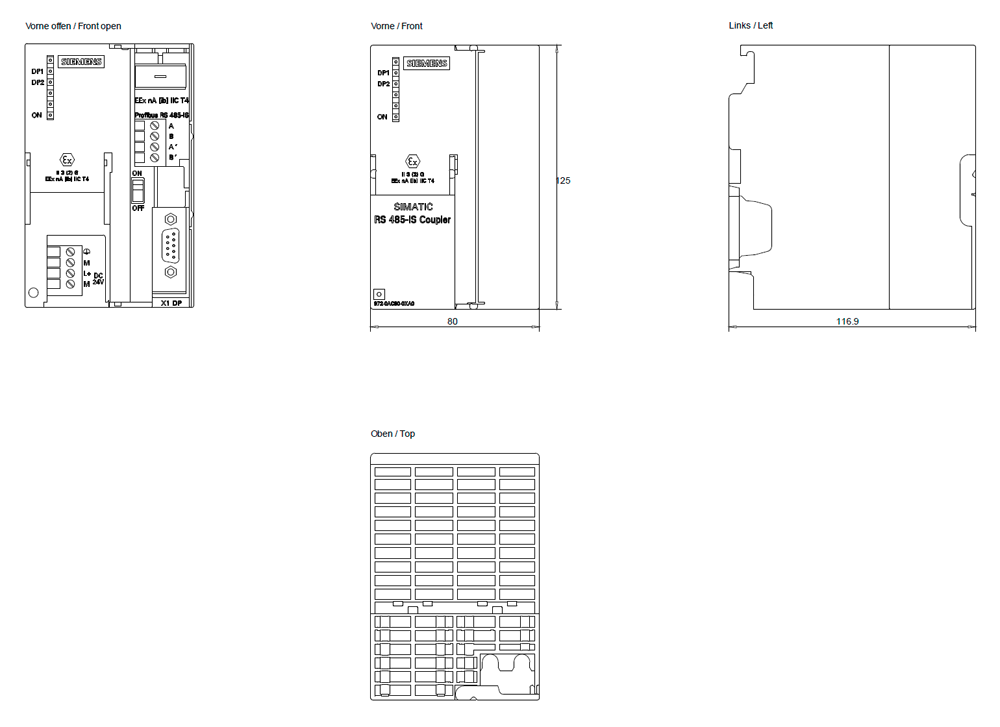

| Depth | 67.5 mm |
| Radio standard GSM | false |
| Supply voltage DC | 20.4 V |
| Wall mounting/direct mounting | true |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for PROFIBUS | true |
| Radio standard Bluetooth | false |
| Radio standard eGPRS | false |
| Rack-assembly possible | false |
| Supporting protocol for ASI | false |
| Radio standard GPRS | false |
| Width | 80 mm |
| IO link master | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for CAN | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Height | 125 mm |
| Supporting protocol for Modbus | false |
| Rail mounting possible | true |
| Supporting protocol for SERCOS | false |
| Supporting protocol for KNX | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for LON | false |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for SUCONET | false |
| Radio standard LTE | false |
| Front built-in possible | true |
| Radio standard UMTS | false |
| Supporting protocol for PROFINET IO | false |
| With potential separation | true |
| System accessory | true |
| Appendant operation agent (Ex ia) | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for Data-Highway | false |
