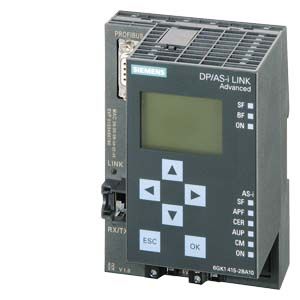

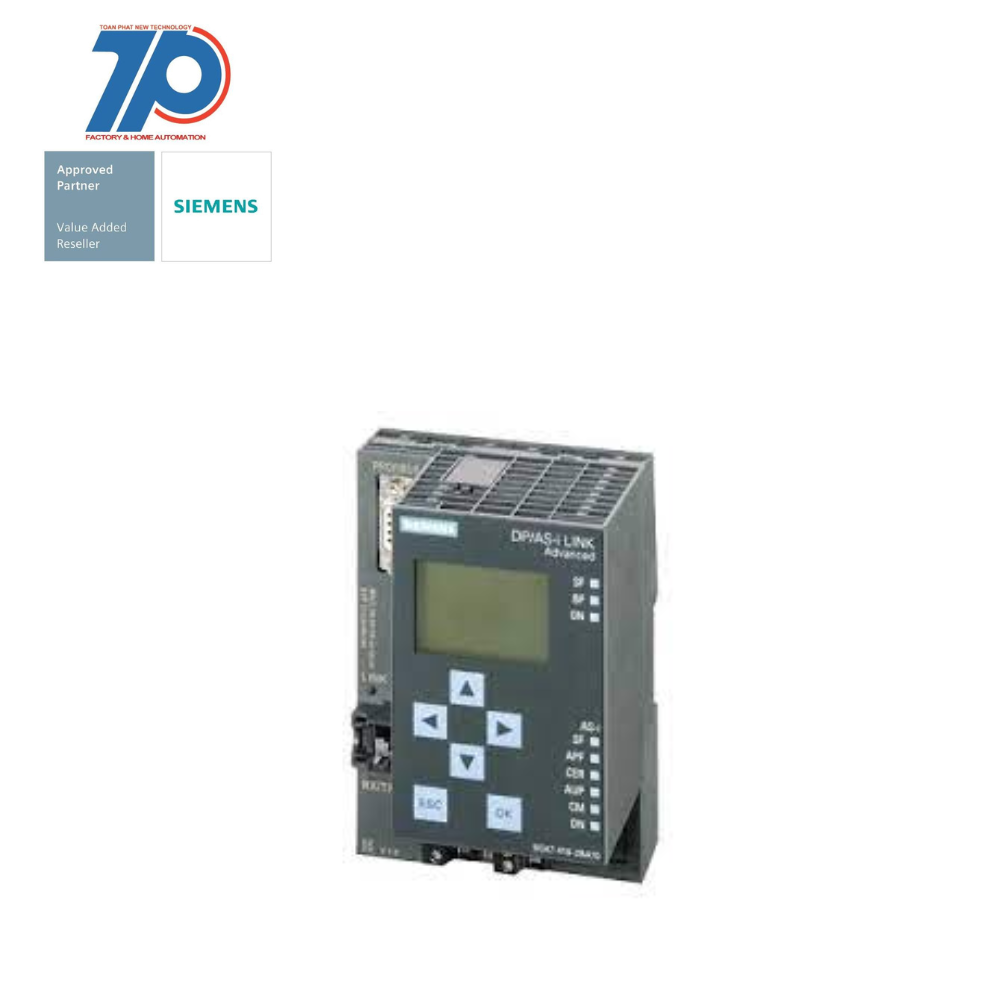

Material ID: 6GK1415-2BA10
- SIMATIC NET
- DP/AS-Interface Link advanced
- Gateway PROFIBUS DP/AS-Interface with master profile M3, M4
- AS-i specification V3.0 for integration in PROFIBUS DP
- Single master with display
- Degree of protection IP20
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for KNX | false |
| Supporting protocol for PROFIBUS | true |
| Number of HW-interfaces other | 1 |
| Supporting protocol for SERCOS | false |
| Radio standard UMTS | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of HW-interfaces RS-485 | 1 |

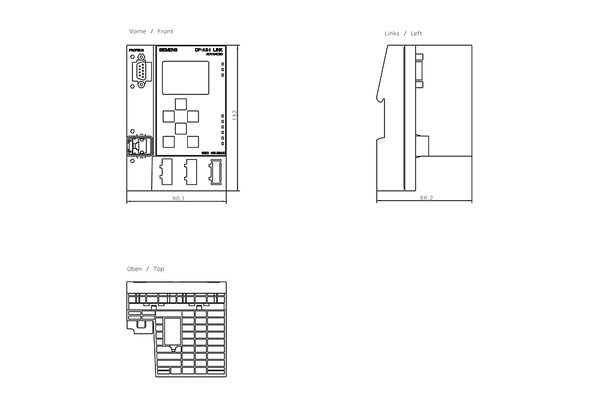

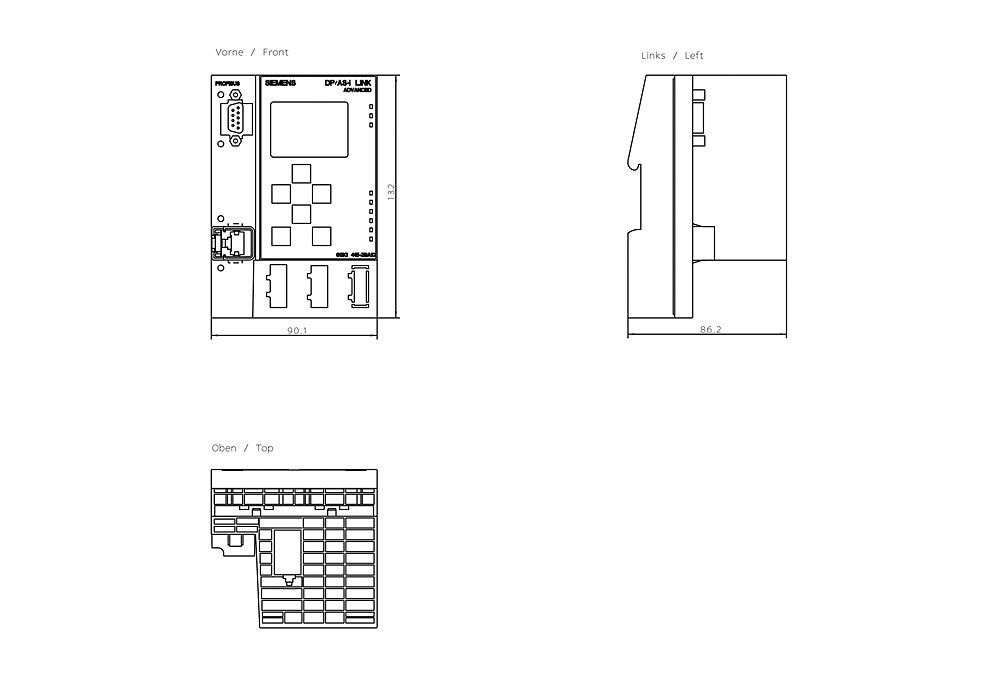

| Depth | 88.5 mm |
| Radio standard WLAN 802.11 | false |
| Width | 90 mm |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ia) | false |
| Radio standard GSM | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for ASI | true |
| Supporting protocol for Modbus | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFINET CBA | false |
| Type of data transmission | Other |
| Suitable for safety functions | false |
| Supporting protocol for LON | false |
| With optical interface | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for other bus systems | false |
| Height | 132 mm |
| Radio standard Bluetooth | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for SUCONET | false |
| Radio standard GPRS | false |
| With potential separation | true |
| Redundancy | true |
| Explosion safety category for dust | None |
| IO link master | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Appendant operation agent (Ex ib) | false |
